CNTD Cheap Goods From China Door Limit Switch/Magnetic Limit Switch/Elevator Limit Switch
Features
- Compact design, various kinds of actuartors
- Easy wiring with full-open terminals
- Dust proof,water proof and oil resistant construction
You are here:Home>> Limit switch >> CZE Limit Switch

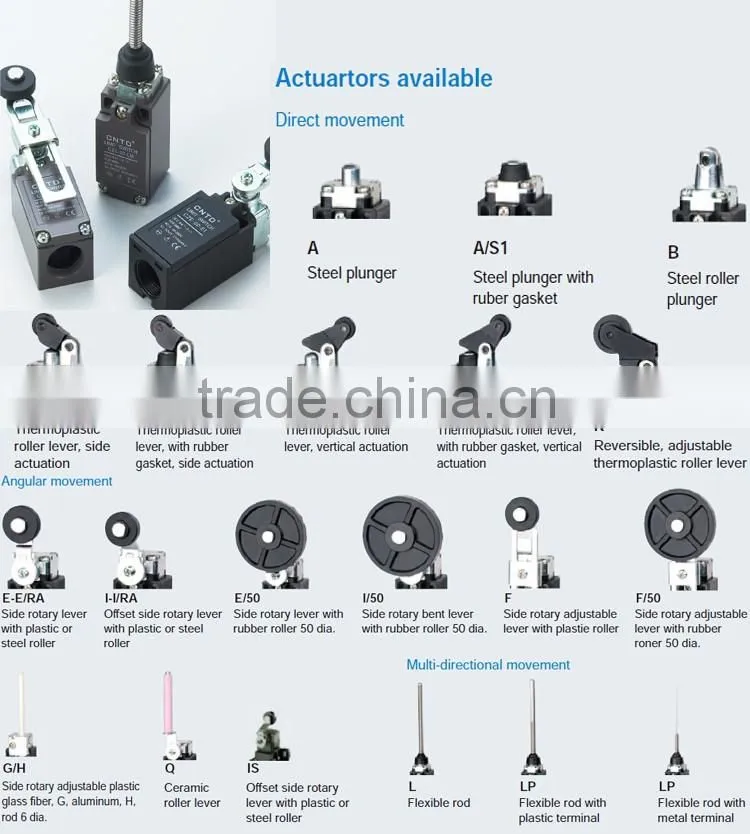

Actuartors available
Contact Block
| 1 NO+1 NC | fast action | 00 |
| 1 NO+1 NC | slow action | 01 |
| 1 NO+1 NC | slowe overlapping action | 02 |
| 2 NO | slow action | 03 |
| 2 NC | slow action | 04 |
| 2 NC | fast action | 05 |
| 2 NO+2 NC | fast action | 000(excluded E200) 000(E200 Except) |
| 1 NO+3 NC | slow action | 80 (model E400 only) 80(E400) |
| 2 NO+2 NC | slow action | 81 (model E400 only) 81 (E400) |
Product characteristics

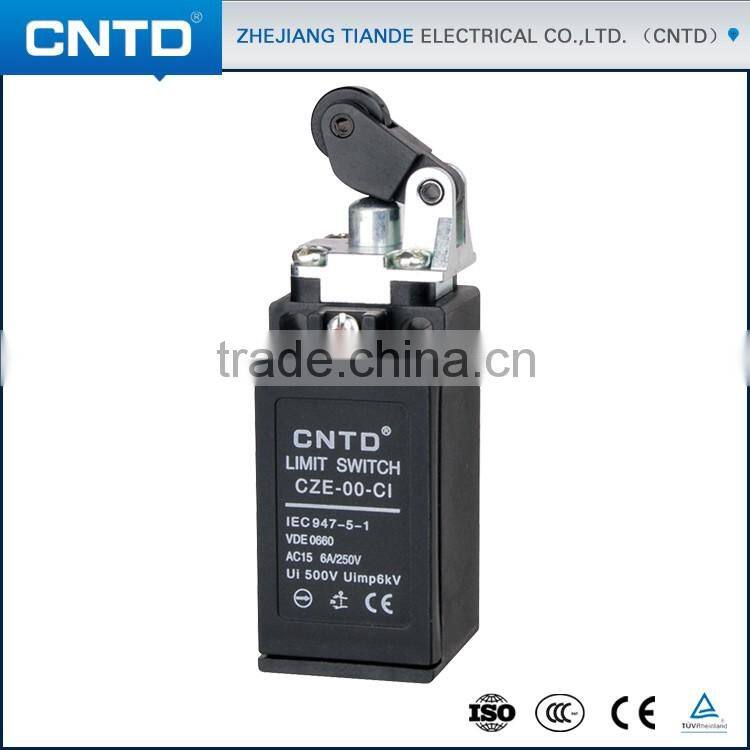

| Model No. | CZE-00-CI |
| Name | Limit switch |
| Opertaing frequency | 1 operat/sec(Hz) |
| Insulation resistance | 500VDC 100mΩ |
| Dielectric strength | 50/60 Hz per 1* 2500VAC |
| Rated thermal current | Ithe IEC947-5-1 10A |
| Rated insulation voltage | Ui IEC947-5-1 500VAC |
| Rated operating current | IEC947-5-1/EN60947-5-1 |
|
Category AC15 A300 le |
24V 10A |
125V 6A | |
230V 4A | |
400V 3A | |
| Category DC13 Q300 le | 24V 10A |
| 48V 4A | |
| 120V 1A | |
| 250V 0.4A | |
| Short circuit protective devices |
IEC269(IEC947-5-1) 10A gl or gG type fuse |
| Protection against electric shock | Plastic Class Ⅱ |
| Metal Class Ⅰ | |
|
Electrical life |
at 250VAC 6A with resistance load cos β =1 500.000cycles min |
at 250VAC 6A with resistance load cos β =0.4 500.000cycles min | |
| Contact resistance | IEC255-7 cat.3 Initial value 25MΩ |
| Vibration resistance | IEC68-2-6 0.35±15%(10÷55Hz±1 Hz)mm |
| Protection degree | EN 60529 IP66 |
| Distance between contacts | Snap action type 2×1,25mm |
Low action type 2×2mm | |
| Shock resistance | IEC68-2-27 11ms 30g |
| Terminals |
Screw with combined notch and retravtable plate |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Conformed Standards | Cenelec EN 50041,EN 50047,IEC 337-1,VDE 0660 |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability |
We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
