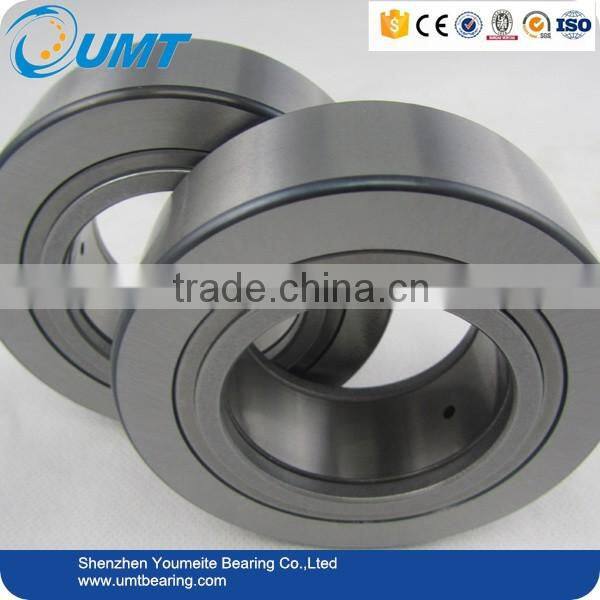

Needle roller bearing NUTR20 X/NUTR20/NUTR20X track roller bearing
Needle roller bearing
Needle roller bearings with cylindrical rollers of roller bearings, roller relative to its diameter, both the thin and long, such as needle roller. Despite having a smaller cross-section, has a higher load bearing capacity, equipped with a thin and long needle bearing roller (roller diameter D≤5mm, L / D≥2.5, L is the length of the roller), so radial structure is compact, its diameter size and load capacity and other types of bearings, minimum diameter, especially for radial dimensions limited support structure.
Depending on different occasions, can be used without an inner ring of the bearing or needle roller and cage assemblies, then journal surface and the surface of the bearing shell hole to match directly as the bearing, the outer rolling surface, in order to ensure the load capacity and operating performance and have the same bearing rings, shaft or housing bore raceway surface hardness, machining accuracy and surface quality should be similar roller bearing rings. Such bearings can only bear radial load.
| Needle roller bearing NUTR20 X/NUTR20/NUTR20X track roller bearing | |
| Model Number | NUTR20 needle roller bearing |
| Structure | needle roller |
| Type | roller |
| Brand Name | UMT or OEM or brand |
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Width | 25mm |
| Net weight | 0.265kg |
| Seals Type | Z, ZZ, RS, 2RZ, 2RS,OPEN |
| Number of Row | Single Row needle roller bearing |
| Material | Chrome steel, Stainless steel |
| Cage | Brass, Steel, Nylon |
| Vibration Level | V1, V2, V3 |
| Clearance | C2, C0,C3, C4, C5 etc. |
| Precision Rating | P0, P6, P5, P4, P2 |
| Hardness | 59-63HRC |
| Service | OEM&ODM both available |
| Sample available | Yes |
| Manufacturer | Yes |
| Quality guaranteed | Yes |
| Certificate | ISO9001:2008, ISO/TS16949 |
| Application/Function |
Automotive, Truck, Tractors, Construction machinery, Electric Tools, Sports Apparatus, Office equipment, Medical devices, Defense, Nuclear, Electric Power Generation, Wind Energy, Robotics, Medical & Dental, Agriculture, Food Processing etc. |
| Other Service | Design service, Buyer label service |
| Packaging Details | Industrial Packing, Individual Boxed Packing, or OEM |
| Delivery Detail | 2-7 days after receiving the payments or deposit |
Needle roller bearings:
| N0. | OLD NO. | Inside Diameter (mm) |
Outside Diameter (mm) |
Width (mm) |
Kg/pcs |
| NUTR80DZ | - | 80 | 200 | 88 | 16.7 |
| NUTR80230 | - | 80 | 230 | 117 | 30.5 |
| NUTR70180 | - | 70 | 180 | 85 | 13 |
| NUTR65165 | - | 65 | 165 | 42 | 0 |
| NUTR60165X | - | 60 | 165 | 64 | 0 |
| NUTR60165 | - | 60 | 165 | 64 | 0 |
| NUTR60150 | - | 60 | 150 | 75 | 7.8 |
| NUTR55120 | - | 55 | 120 | 43 | 0 |
| NUTR50DZ | - | 50 | 90 | 32 | 0.988 |
| NUTR50130 | - | 50 | 130 | 65 | 5.035 |
| NUTR50110 | NUTD50110 | 50 | 110 | 32 | 1.73 |
| NUTR50 | NUTD50 | 50 | 90 | 32 | 1.73 |
| NUTR45ZK | - | 45 | 85 | 32 | 0.883 |
| NUTR45XK | - | 45 | 85 | 32 | 0.883 |
| NUTR45100 | NUTD45100 | 45 | 100 | 32 | 1.43 |
| NUTR45 | NUTD45 | 45 | 85 | 32 | 0.917 |
| NUTR4090 | NUTD4090 | 40 | 80 | 32 | 1.16 |
| NUTR40 | NUTD40 | 40 | 80 | 32 | 0.926 |
| NUTR35ZK | - | 35 | 72 | 29 | 0.63 |
| NUTR35XK | - | 35 | 72 | 29 | 0.63 |
| NUTR35DZ | - | 35 | 72 | 29 | 0.655 |
| NUTR3580 | NUTD3580 | 35 | 80 | 29 | 0.865 |
Needle roller bearings:
| N0. | OLD NO. | Inside Diameter (mm) |
Outside Diameter (mm) |
Width (mm) |
Kg/pcs |
| NUTR35 | NUTD35 | 35 | 72 | 29 | 0.655 |
| NUTR30DZ | - | 30 | 62 | 29 | 0.48 |
| NUTR3072DZ | - | 30 | 72 | 29 | 0.711 |
| NUTR3072 | NUTD3072 | 30 | 72 | 29 | 0.711 |
| NUTR30 | NUTD30 | 30 | 62 | 29 | 0.48 |
| NUTR2562 | NUTD2562 | 25 | 62 | 25 | 0.45 |
| NUTR25 | NUTD25 | 25 | 52 | 25 | 0.39 |
| NUTR2052 | NUTD2052 | 20 | 52 | 25 | 0.321 |
| NUTR20 | NUTD20 | 20 | 47 | 25 | 0.245 |
| NUTR1747 | NUTD1747 | 17 | 47 | 21 | 0.22 |
| NUTR17 | NUTD17 | 17 | 40 | 21 | 0.147 |
| NUTR1542 | NUTD1542 | 15 | 42 | 19 | 0.158 |
| NUTR15 | NUTD15 | 15 | 35 | 19 | 0.099 |
| NUTR120 | - | 120 | 215 | 70 | 0 |
| NUTR110260 | - | 110 | 260 | 115 | 35.23 |
| NUTR110250X | - | 110 | 250 | 155 | 0 |
| NNUTR65165 | - | 65 | 165 | 74 | 0 |
Our other main products:
Deep groove ball bearing, Taper roller bearing, Ceramic ball bearing, Cylindrical roller bearing, Spherical roller bearing, Self-aligning bearing, Adapter sleeve, Angular contact ball bearing, Thrust ball bearing, Thrust roller bearing, Needle roller bearing, Spherical plain bearings, Linear bearing, Whell hub bearing, Special bearing
Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearing corporation responsible for oversea marketing. Our plant shandong UMT has been working in the filed of bearing design and manufacturing for more than 10years now is taking a leading position in mainland china. Our plant has more than 500 employees , including 30 bearing professional techincians; more than 600 new bearing items can be completed each year. we can produce all kinds of bearing as customer's requirement.
| Company: | Shenzhen Youmeite Bearings Co., Ltd |
| Name: | CANDY AO |
| Web: | |
| Tel: | 0086-755-28139711 |
| Fax: | 0086-755-28142811 |
| Mobile / Whatsapp: | 0086-18823379120 |
| Skype | candy_umt |
| Email: | sales005(at) |
Needle roller bearing NUTR20 X/NUTR20/NUTR20X track roller bearing:
ep gr
1. Q: Manufacturer or Trading company:
A:We (Shenzhen Youmeite Bearing Co., Ltd) has our own factory to produce goods for you.
2. Q: Material/ quality?
A: Chrom steel, carbon steel, ceramic bearings, ISO9001:2008 certificate to ensure qualtity.
3. Q: about samples:
A: Samples is free offered except large bearings, shipping cost shoud be paid by buyer, the shipping cost will be refund after order comfirmed.
4. Q: Brand and services?
A: Neutral brand, OEM service, OEM any brand as customer's requirements. For the branded bearings, please note we are Authorised Distributors for South China, if you have any doubts, please contact us freely.
5. Q: Capacity for supply goods?
A: about 2-15 days can delivery your goods after received your deposit or payment.
6. Q: Package and shipping?
A: 1: 1pc/plastic bag + color box + carton + plywood pallets.
2: barreled package+outer carton+pallets 3: single box+outer carton+pallets 4:
tube package+middle box+outer carton+pallets 5: According to your requirement.
7. Q: Payment?
A: 1:T/T:30% as deposit and 70% balance after get copy of B/L.
2:L/C (cannot for branded bearings.)
3:Western Union
4:Paypal
5:Discuss together between buyer and supplier.
