16~48KG/M3 air conditioning rectangular aluminium insulation flexible duct

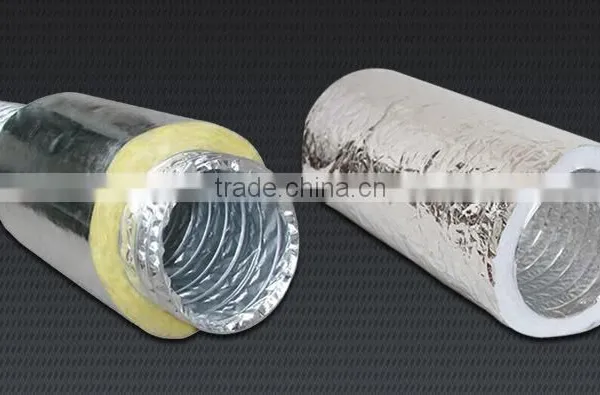

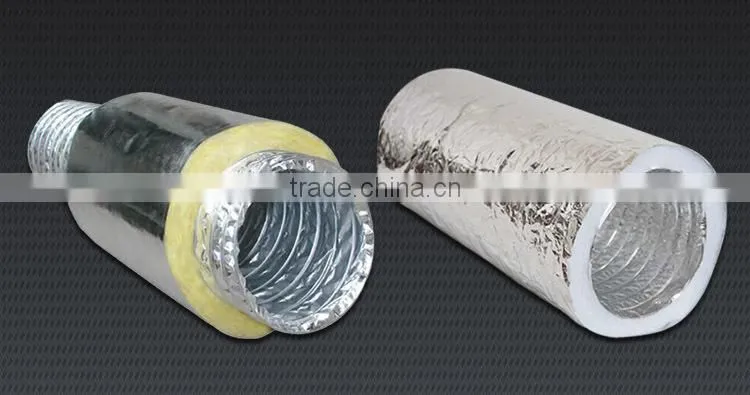

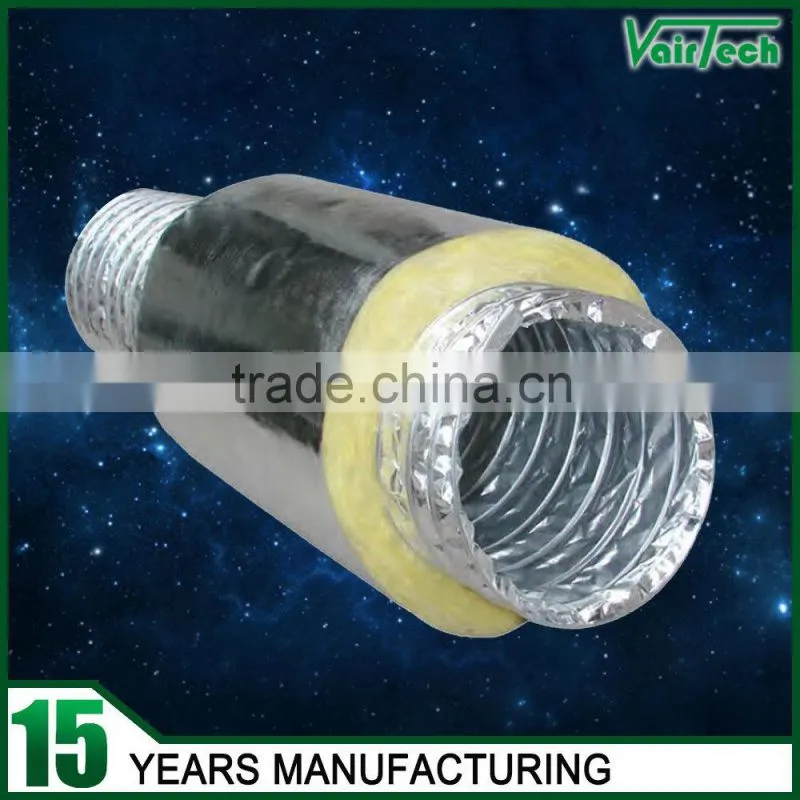

Construction:
l Insulated flexible duct(IFD-S)—with the polyester with the coil made of the spring wire.
Inner: single layer aluminum flexible duct
Insulation: thickness 25mm, 16KG/m3 yellow fiberglass
Outer Jacket: Aluminum + polyester
l Insulated flexible duct(IFD-D)—with the polyester with the coil made of the spring wire.
Inner: double layer aluminum flexible duct
Insulation: thickness 25mm, 16KG/m3 yellow fiberglass
Outer Jacket: Aluminum + polyester
Description:
l Insulation coat is comprised of the glass wool, and the outer protection is built with the two-layer coat of the laminated aluminium strengthened with the glass fibre.
l It has the advantage of no need to use special tools for cutting or fixing, it does not emit toxic gases in high temperatures. it is fire resistance.
Technical specification:
|
IFD-S |
IFD-D |
Air velocity: |
30m/s (max) |
30m/s (max) |
Temperature range: |
-30℃ to '+150℃ |
-30℃ to '+250℃ |
Operating pressure: |
3000Pa (max) |
3000Pa (max) |
Fire resistance: |
yes |
yes |
Standard length: |
10m |
10m |

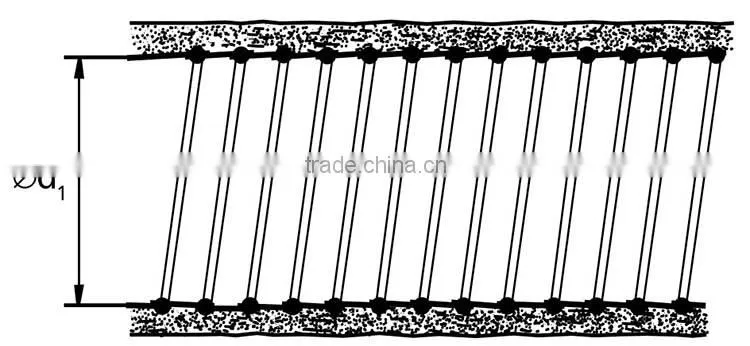

Size:
Diameter |
spring wire (mm) |
|
space |
diameter |
|
4" |
25 |
1.0 |
5" |
25 |
1.0 |
6" |
30 |
1.0 |
7" |
30 |
1.1 |
8" |
35 |
1.1 |
10" |
40 |
1.2 |
12" |
40 |
1.2 |
14" |
40 |
1.2 |
16" |
40 |
1.3 |
18" |
40 |
1.3 |
20" |
40 |
1.3 |
Foshan Vairtech Ventilation Co., Ltd is a professional manufacturer for supplying full range of ventilation products with about 15 years' experience, which is located in the Aluminum Hometown of China - Foshan City. We enjoy transportation & raw material convenience.
"Customer first, quality first" ---We are sincerely welcome you to contact us for business.
