UL cUL 600mm led tube light with 5 years warranty
Specifications
1.Input voltage:AC90-300V
2.Working temperature: -20 to 50°C
3.Length: 60cm,120cm,150cm(customized)
4.Power consumption: 9w,18w,22w
5. Color temperature:6,000 to 6,500K /4,000 to 4,500K / 2,800 to 3,000K
6. Certificates: UL/TUV/CE/FCC standard
11. Life span:50000 hours
Advantages
1. Caps rotatable, easy to adjust beamimg angle
2. Isolating Circuit design,UL/TUV/CE/FCC Certificated
3. Wide scope input voltage:AC 90V-300V
4. Professional design against electric shock
5. Power Factor reach up to 95%
6. Perfect light effect,no glare.
7. Aluminum heat sink body ensure long life
8. Less 1% attenuation after 3,000 hours
9. replacement for conventional fluorescent tube
| Item | Color | CCT | LED Qty | Input Voltage | Power (W) | Power Drive | Light Efficiency | Outline Material | Packing | ||||
| Min. | Typ. | Max. | Efficiency | PF | Ra≥80 | pcs/ctn | MEAS | ||||||
| 0.6M 2Feet L588mm×26mm // SMD2835 9W | |||||||||||||
| T8-9WL06-UL90A | WM | 3000±200K | 90 PCS | AC100-277V | 8.1 | 9 | 10.4 | ≥90% | ≥92% | 120LM/W | 1/3 Aluminu+PC | 30 | 65*23.5*19.5cm |
| NW | 4000±300K | ||||||||||||
| CW | 6500±500K | ||||||||||||
| T8-9WL06-UL90 | WM | 3000±200K | PC | ||||||||||
| NW | 4000±300K | ||||||||||||
| CW | 6500±500K | ||||||||||||
| 1.2M 4Feet L1198mm×26mm // SMD2835 18W | |||||||||||||
| T8-18WL12-UL160A | WM | 3000±200K | 160 PCS | AC100-277V | 16.2 | 18 | 20.3 | ≥92% | ≥95% | 120LM/W | 1/3 Aluminu+PC | 30 | 125*20*19.5cm |
| NW | 4000±300K | ||||||||||||
| CW | 6500±500K | ||||||||||||
| T8-18WL12-UL160 | WM | 3000±200K | PC | ||||||||||
| NW | 4000±300K | ||||||||||||
| CW | 6500±500K | ||||||||||||
| 1.5M 5Feet L1498mm×26mm // SMD2835 22W | |||||||||||||
| SPT-22L15-176A | WM | 3000±200K | 176 PCS | AC100-277V | 19.8 | 22 | 24.7 | ≥92% | ≥95% | 120LM/W | 1/3 Aluminu+PC | 25 | 155*20*19.5cm |
| NW | 4000±300K | ||||||||||||
| CW | 6500±500K | ||||||||||||
| Lumen(lm/LED) | |||||
| LED Type | White | Red | Green | Blue | Yellow |
SMD5050 |
12-14lm 16-18lm |
0.3-0.5lm |
2.97-3.5lm |
1-1.151lm |
0.3-0.5lm |
SMD5054 |
20-22lm | ||||
| SMD2835 | 10-12lm 20-22lm 24-26lm |
||||
SMD3528 |
5-6lm 6-7lm | ||||
SMD2216 |
8-10lm | ||||
SMD3014 |
10-12lm | ||||
SMD5730 |
50-55lm |
||||
| 2.Product show UL cUL 600mm led tube light with 5 years warranty |

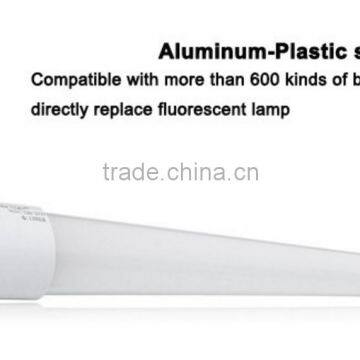

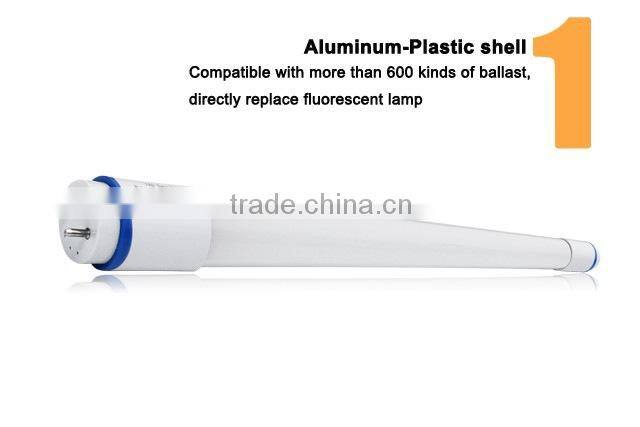

- Aluminum-Plastic shell, compatable with more than 600 kinds of ballast,directly replace fluorescent lamp.

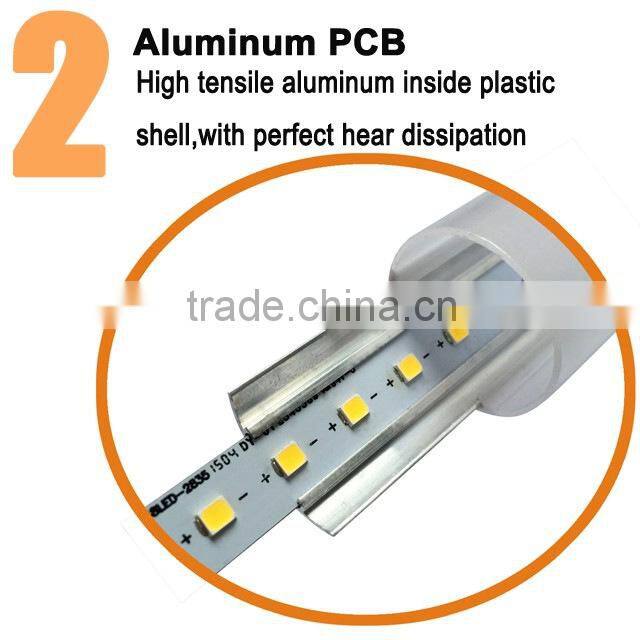

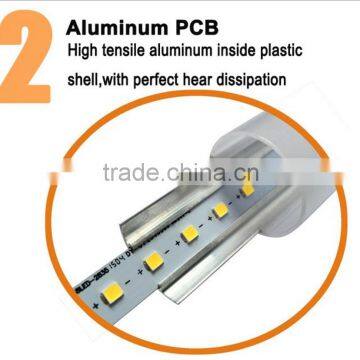

- Aluminum PCB, with high tensile aluminum inside plastic shell,have perfect heat dissipation

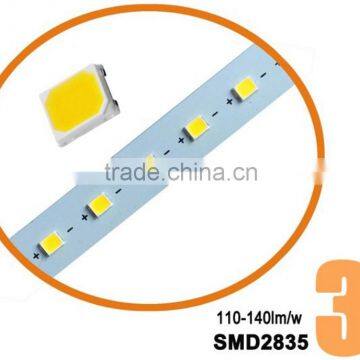

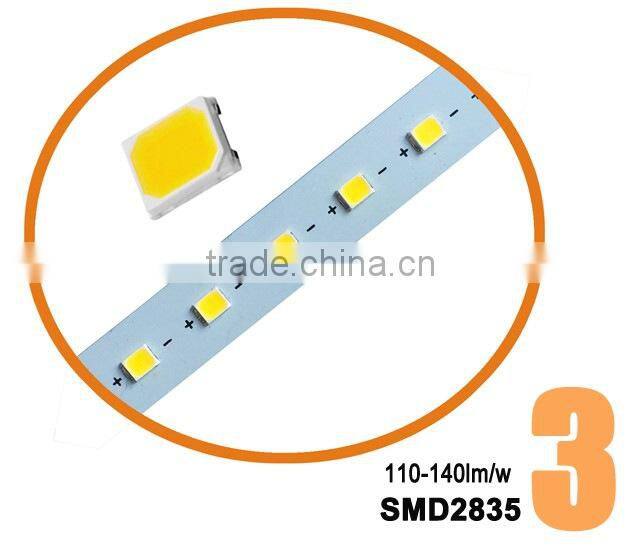

- High efficiency 110-140lm/w. SMD2835, Epsitar LED Chip
| 9W T8 tube |
|||||||||
| Item | Length | Dimension | Power | Light Efficiency | Ra | Input Voltage | PF | Emitting color | Cover |
| T8-9WL06-UL90A | 598mm | Φ26mm | 9w | 120LM/W | ≥80 | AC100-277V | ≥0.92 | 3000K/4000K/6500K | 1/3 Aluminu+PC |
| T8-9WL06-UL90 | 598mm | Φ26mm | 9w | 120LM/W | ≥80 | AC100-277V | ≥0.92 | 3000K/4000K/6500K | Full PC |
| Item | Length | Dimension | Power | Light Efficiency | Ra | Input Voltage | PF | Emitting color | Cover |

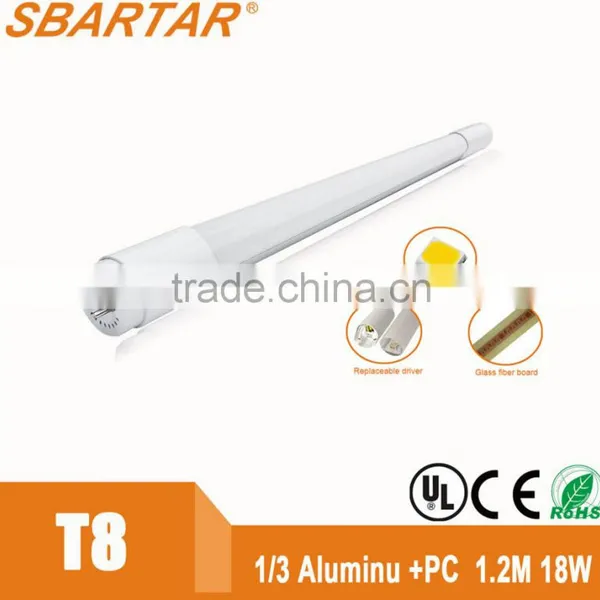

| T8-18WL12-UL160A | 1198mm | Φ26mm | 18w | 120LM/W | ≥80 | AC100-120V | ≥0.95 | 3000K/4000K/6500K | 1/3 Aluminu+PC |
| T8-18WL12-UL160 | 1198mm | Φ26mm | 18w | 120LM/W | ≥80 | AC100-120V | ≥0.95 | 3000K/4000K/6500K | Full PC |
22W T8 tube
| Item | Length | Dimension | Power | Light Efficiency | Ra | Input Voltage | PF | Emitting color | Cover |
| SPT-22L15-176A | 1498mm | Φ26mm | 22w | 120LM/W | ≥80 | AC100-120V | ≥0.95 | 3000K/4000K/6500K | 1/3 Aluminu+PC |
|

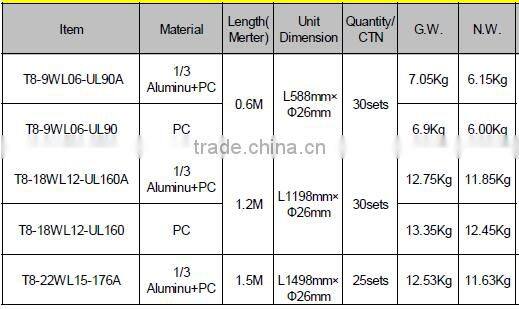

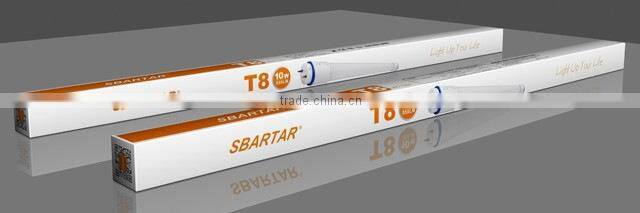

3.Packing UL cUL 600mm led tube light with 5 years warranty |
A. Paper box+Gift box+carton(customerized)
B. Paper box+carton(neutral packaging)
C. EPE Foam+ carton(neutral packaging)
|
4.Corner View of UL cUL 600mm led tube light with 5 years warranty |

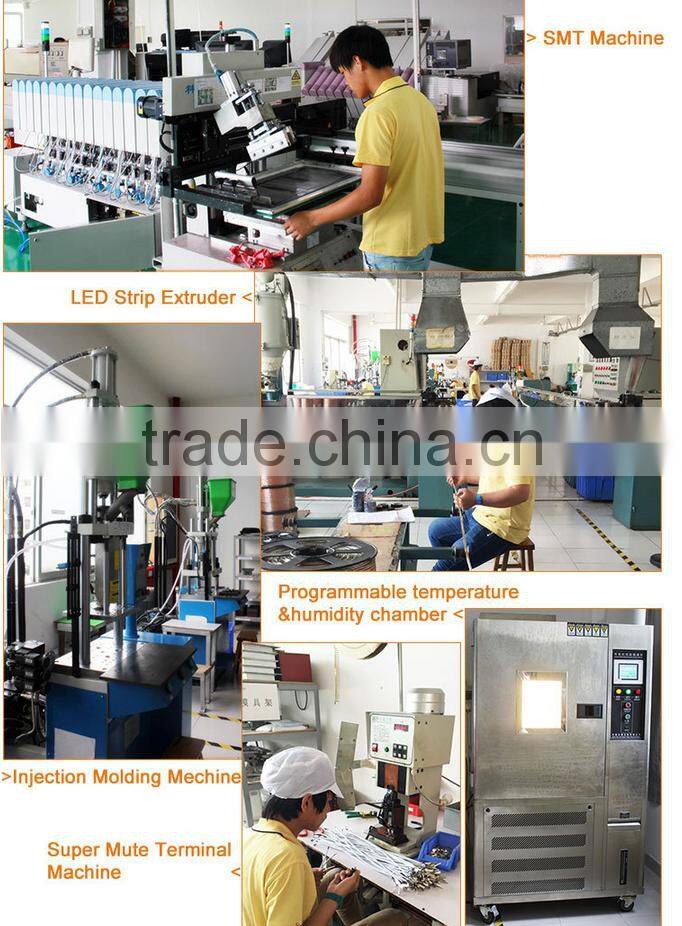

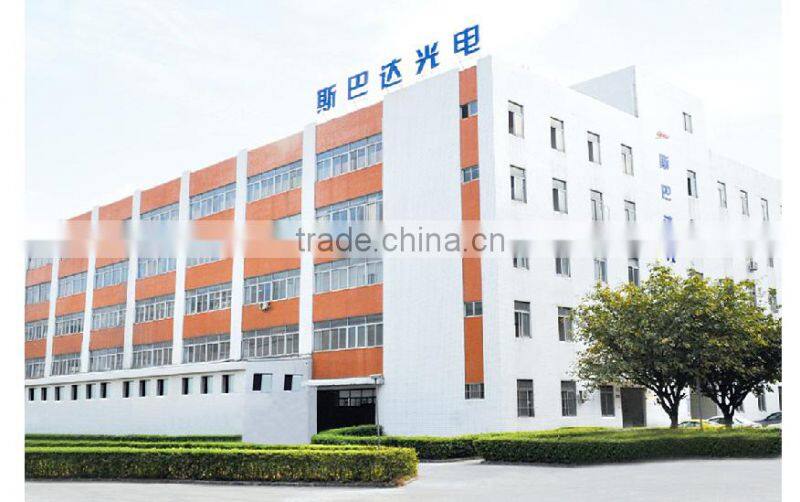

SPARTALED is a professional led manufacturer with its own R&D Department and well-equipped machines such as the s SMT Machines,High efficiency Extrunder,Programmable Temperature&Humidity Chamber,covering an area of 8000 square meeters with more than 100 staffs.Spartaled mainly focus on high voltage led strips,led tube and led panel lights, and a lot of products are our patent. We have certification of CE,RoHS,ERP,TUV,UL,DLC,FCC,SAA,PSE and ISO9001:2008.
|

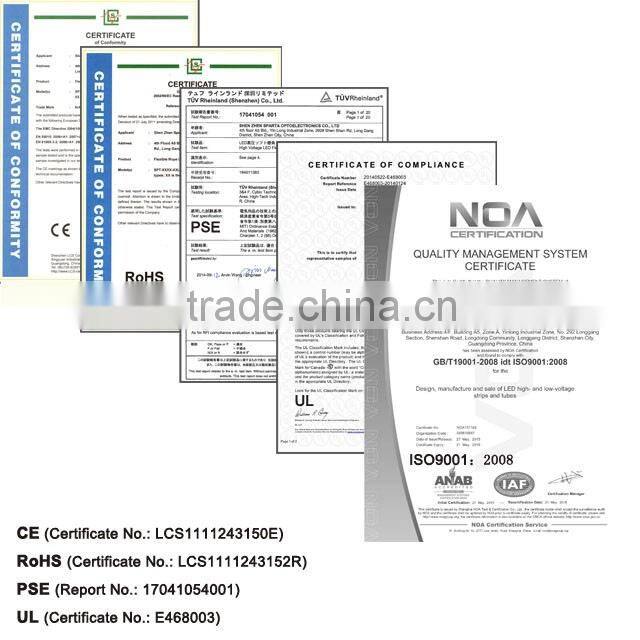

5.Certifications of UL cUL 600mm led tube light with 5 years warranty |
Spartaled LED lights exported all over the world, especailly to the Europe, North America, Russia,Japan,Brazil,United States,UK etc, accordingly we all different kinds of certifications to the market, such as the CE, RoHS,TUV,UL,DLC,SAA,FCC,PSE and ISO9001:2008
