T8 10W 2Ft 60cm 48 LED 2835SMD White / Warm Fluorescent Tube Light Lamp 100-265V
1.Specifications of t8 2ft led fluorescent lamp | |
| LED Model | SMD2835 |
| LED Quantity | 54LED/m |
| Length | 588mm |
Voltage |
AC120-277V |
| Power | 10W |
| Waterproof grade | IP65 |
| Packing | 1PCS/box |
| Color | White/Warm white/Netural white |
| Certificates | CE/RoHS/PSE/ISO9001/UL/DLC |
| Warranty | 5 year warranty |
| FPC width | 10mm |
| G.W. | 0.17KG |
| Carton size | 625*255*165MM 40PCS/CTN |
| Application | Commercial/residential lighting |
| Lumen(lm/LED) | |||||
| LED Type | White | Red | Green | Blue | Yellow |
SMD5050 |
12-14lm 16-18lm |
0.3-0.5lm |
2.97-3.5lm |
1-1.151lm |
0.3-0.5lm |
SMD5054 |
20-22lm | ||||
| SMD2835 | 10-12lm 20-22lm 24-26lm |
||||
SMD3528 |
5-6lm 6-7lm | ||||
SMD2216 |
8-10lm | ||||
SMD3014 |
10-12lm | ||||
SMD5730 |
50-55lm |
||||

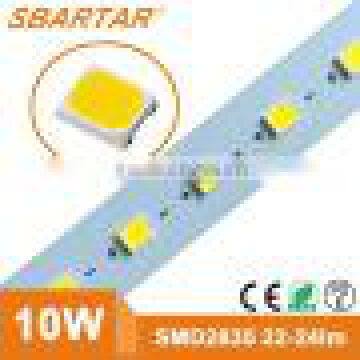

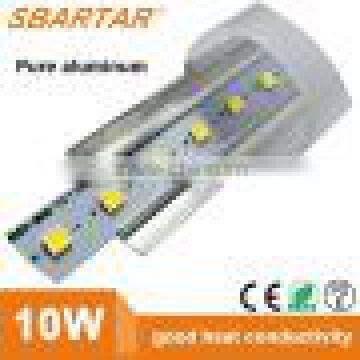

| 2.Product show of T8 2ft led fluorescent lamp |
- Aluminum-Plastic shell, compatable with more than 600 kinds of ballast,directly replace fluorescent lamp.
- Aluminum PCB, with high tensile aluminum inside plastic shell,have perfect heat dissipation
- High efficiency 110-140lm/w. SMD2835, Epsitar LED Chip
| Aluminum-Plastic Shell | |||||||||
| Item | Length | Dimension | Power | Light Efficiency | Ra | Input Voltage | PF | Emitting color | Beam Angle |
| SPT-S06-48S10 | 588mm | Φ26mm | 10w | 110LM/W | ≥80 | AC120-277V | ≥0.92 | 3000K/4000K/6500K | 270 |
| SPT-S12-96S18 | 1198mm | Φ26mm | 18w | 110LM/W | ≥80 | AC120-277V | ≥0.92 | 3000K/4000K/6500K | 270 |
| SPT-S12-120S22 | 1498mm | Φ26mm | 22w | 110LM/W | ≥80 | AC120-277V | ≥0.92 | 3000K/4000K/6500K | 270 |
| 1/3 Aluminum | |||||||||
| Item | Length | Dimension | Power | Light Efficiency | Ra | Input Voltage | PF | Emitting color | Beam Angle |
| SPT-9L06-54A | 588mm | Φ26mm | 10w | 110LM/W | ≥80 | AC90-120V | ≥0.92 | 3000K/4000K/6500K | 270 |
| SPT-18L12-100A | 1198mm | Φ26mm | 18w | 110LM/W | ≥80 | AC90-120V | ≥0.92 | 3000K/4000K/6500K | 270 |
| SPT-22L15-110A | 1498mm | Φ26mm | 22w | 110LM/W | ≥80 | AC90-120V | ≥0.92 | 3000K/4000K/6500K | 270 |
| Plastic Shell | |||||||||
| Item | Length | Dimension | Power | Light Efficiency | Ra | Input Voltage | PF | Emitting color | Beam Angle |
| SPT-9L06-54P | 588mm | Φ26mm | 10w | 110LM/W | ≥80 | AC90-120V | ≥0.92 | 3000K/4000K/6500K | 270 |
| SPT-18L12-100P | 1198mm | Φ26mm | 18w | 110LM/W | ≥80 | AC90-120V | ≥0.92 | 3000K/4000K/6500K | 270 |
| SPT-22L15-110P | 1498mm | Φ26mm | 22w | 110LM/W | ≥80 | AC90-120V | ≥0.92 | 3000K/4000K/6500K | 270 |
|

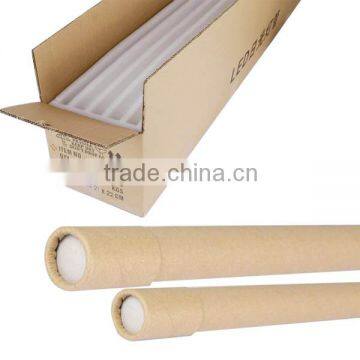

3.Packing of t8 2ft led fluorescent lamp |
One piece in one boxes, then 30 pieces in a master carton, can be OEM packages
|
4.Corner View of SPARTALED Factory |
SPARTALED is a professional led manufacturer with its own R&D Department and well-equipped machines such as the Philips SMT Machines,High efficiency Extrunder,Programmable Temperature&Humidity Chamber,covering an area of 8000 square meeters with more than 100 staffs.Spartaled mainly focus on high voltage led strips,led tube and led panel lights, and a lot of products are our patent. We have certification of CE,RoHS,ERP,TUV,UL,DLC,FCC,SAA,PSE and ISO9001:2008.
|
5.Certifications of spartaled lights |
Spartaled LED lights exported all over the world, especailly to the Europe, North America, Russia,Japan,Brazil,United States,UK etc, accordingly we all different kinds of certifications to the market, such as the CE, RoHS,TUV,UL,DLC,SAA,FCC,PSE and ISO9001:2008
| 6.Exhibithion show |
We attend all kinds of LIGHTING show abroad and mainland,
| 7.Why choose SPARTA |
All materials checked before production with our advanced equipment, to ensure the specification of material meet our requirement or customer’s special requirement.
We keep sample of LED of each order, including detail specification, if customer require the same color temperature in different order, we can make it as request. If any problem happen, we can also check what the problem was.
Using automatic SMT machine to put soldering paste on the PCB, to ensure every soldering point has enough soldering paste, which can avoid miss soldering problem.
-
Aging 24hours for all products, most problems can be found here. We can fix them in this procedure. If many LED has problem, we will reject all the goods and make new one for our customers.
After the aging test, we will do the third QC for 100% of goods, check the soldering problem, outlook(clean or dirty), color consistence of LED, our QC will also do the beating test for the LED strip to avoid any soldering problem.
T8 10W 2Ft 60cm 48 LED 2835SMD White / Warm Fluorescent Tube Light Lamp 100-265V
