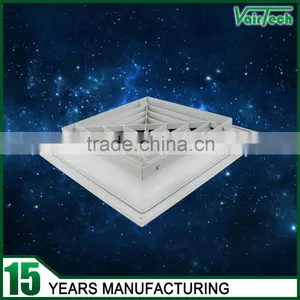

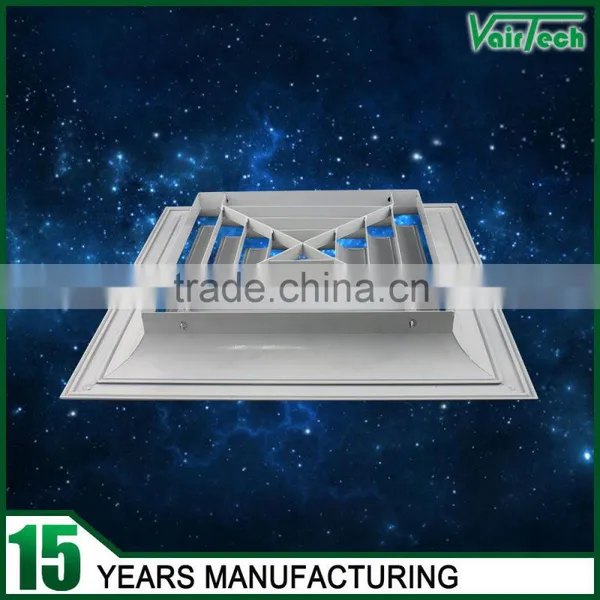

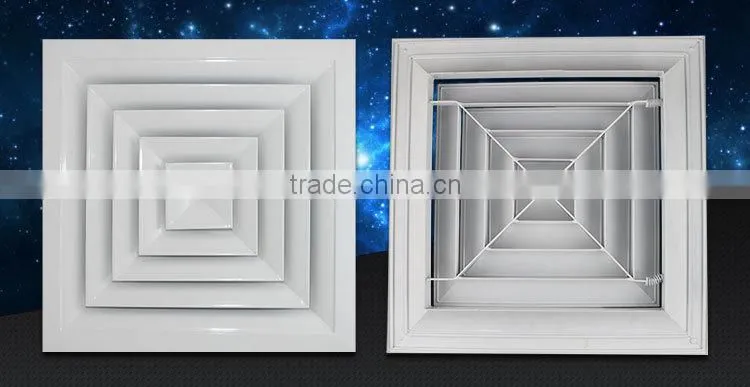

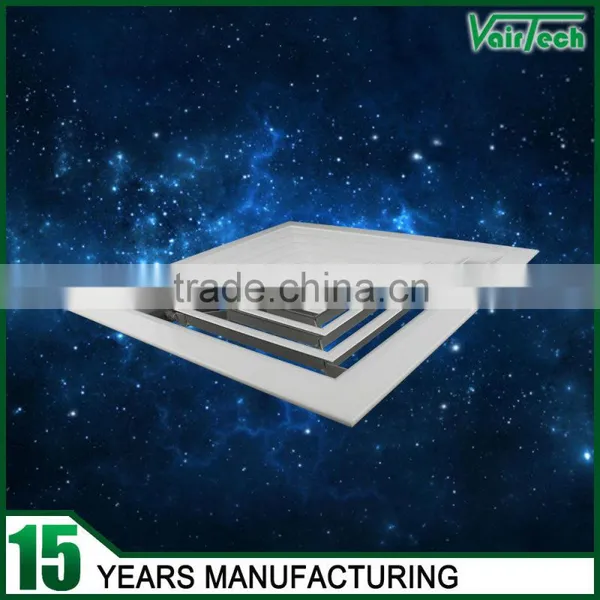

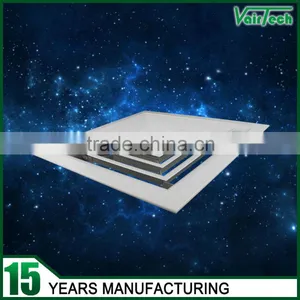

Powder coated 4 way supply ceiling diffuser
Vairtech air diffuser is a device that is designed to provide uniform air flow throughout a room. It works to increase the efficiency of air conditioning units by dividing and distributing cooled air. When an even airflow is maintained, drafts and hotspots in a room are eliminated, providing greater comfort to occupants, while increasing energy efficiency.
Construction:
- Frame: High quality extruded aluminum alloy(A6063) profile with 25.0mm flange width
- Core: High quality extruded aluminum alloy(A6063) profile in curve
Description:
- The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
- Lourvered type core is fixed to the frame with aluminum pins loaded with steel springs. Core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance and damper adjustment.
Details:
- Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010; Natural anodized aluminum finish
- Material thickness: 1.0mm
- Accessory: OBD, Neck adaptor
Size:
- Any size available
- Overall face size = Neck size +110mm
Standard size
Item Code |
Neck Size(mm) |
Middle Size(mm) |
Face Size(mm) |
SD-A4-225 |
165x165 |
225x225 |
275x275 |
SD-A4-300 |
240x240 |
300x300 |
350x350 |
SD-A4-375 |
315x315 |
375x375 |
425x425 |
SD-A4-400 |
340x340 |
400x400 |
450x450 |
SD-A4-450 |
390x390 |
450x450 |
500x500 |
Accessary:
Foshan Vairtech Ventilation Co., Ltd is a professional manufacturer for supplying full range of ventilation products with about 15 years' experience, which is located in the Aluminum Hometown of China - Foshan City. We enjoy transportation & raw material convenience.
"Customer first, quality first" ---We are sincerely welcome you to contact us for business.
