Model xst-8065 x-ray baggage scanner/x-ray luggage machine with high quality for airport using

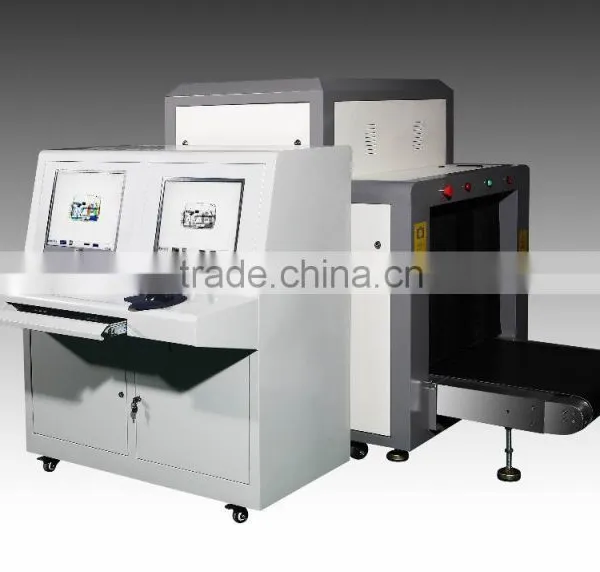

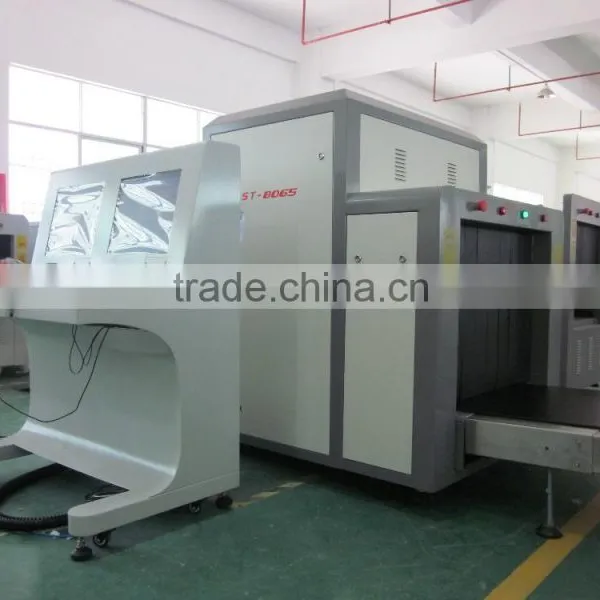

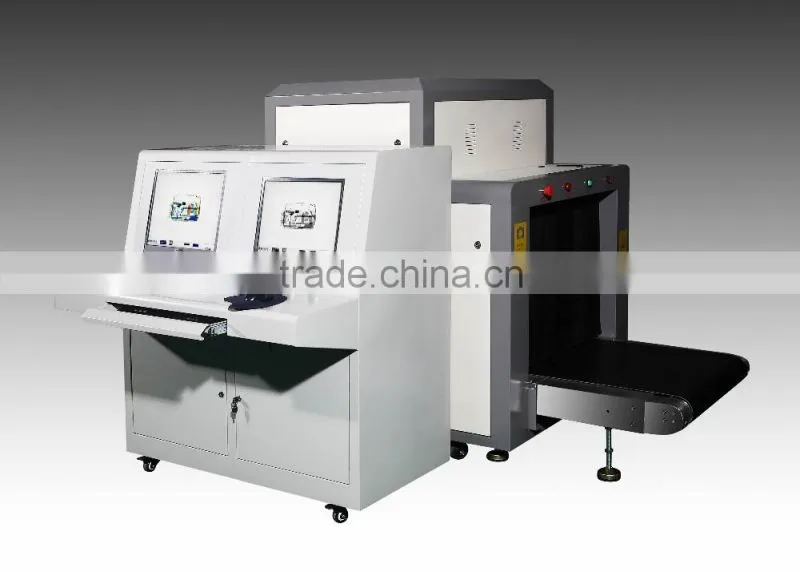

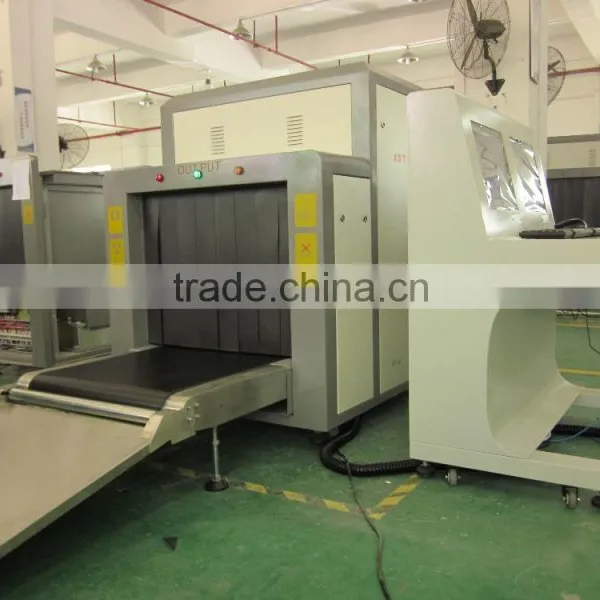

8065 X-ray airport baggage scanner with high quality
Feature
1,Alarm by sounds & light::Alarm by sounds and light when conform to condition
2,Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3,Safety ray:Transmit ray under automatic control, avoids the miss
4,Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment 5,automatic security close-down, does not need complex many steps, is simpler.
6,Eagle-eye:Could be expediently observing enlargement area.
7,Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.
Technical Data
Tunnel Size: 800(W)×650(H)mm
Conveyor Speed: 0.22 m/s
Conveyor Max Load: 150 kg
Single inspection dosage < 1.5µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 30MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation <0.3µGY/H
X-ray Generator
Orientation: Vertically Upward
Tube Current: 0.4~1.2MA(adjustable)
Anode Voltage: 100~160 KV(adjustable)
Angle: 80°
Generator cooling/working periods: Sealed oil bath with forced air/100%
Image Performance System
1,X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT
2,MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY
3,COLOR QUALITY: 24 BIT REAL COLORS
4,EDGE ENHANCEMENT:OBJECT CONTOUR EDGE IS MORE DISTINCT
5,SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT
6,HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH 8,ABSORPTIVITY MASS DISTINCTLY
7,LOW PENETRATE STRENGTH DISPLAY:
8,INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY
9,MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT
10,BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE
11,IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM
12,IMAGE RESTORATION: RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR
13,IMAGE STORING: REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS
Multi-energy Function
MULTI-ENERGY COLOR:
DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN
HIGH ENERGY/LOW ENERCY:
SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC
AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES:
HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.
AUDIBLE & VISIBLE ALARM:
GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION
Operating Environment
Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.2 KW (Max)
Noise: <65DB
Single Xray Ganerator Tunnel size: 80*65cm
2100*1250*1650mm
1300*950*750mm
Warranty:
(1)All products have been Strictly Quality Checked before packing.(2)All Products have been well packed before shipping
(3)One Year warranty is proviced for all models. we will bear maintenance cost during warranty period.
(4)OEM Service ofference
Design service offered
Buyer label offered
Delivery:
(1)Sample and Min Order will be delivery within 2-3 working days after receipt of payment.(2)For order over 500 pcs of sustomized order, please contact our sales to make sure the current inventory.
Payment:
T/T, Western Union, Moneygram ,Escrow,Paypal
After-sales Service:
1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service
Transportation:
Transported by DHL, UPS, EMS, Fedex, Air freight,Sea Freight.
Shenzhen XinSaiTong Technology Company Limited is a high-tech enterprise, professional for designing, manufacturing, marketing, XST engineering, electronic security equipment on Security porducts.
Our Vision: Spread our band with high quality products, take the market with high quality products, competitive price and best after sale service, enlarge the company with invition. We keep updating and improving our products and developing new products to meet all the needs.
Our main products : handheld metal detectors, walk through metal detectors, under vehicle search mirrors and underground search metal detectors, X-ray inspection system and EAS. And our main markets are Eastern Europe, South America, North America, the Middle East, Africa and Southeast Asia. Until now, we have exported our products to more than 80 countries and districts .
Our products are widely recognized and trusted by lots of companies. We aim to achieve a win-win cooperation. We are waiting for you!
