Home > Construction & Decoration > Fence > Security Fence > High Sensitivity Walk Through Metal Detector Scanner Gate With 6 Detecting Zones

High Sensitivity Walk Through Metal Detector Scanner Gate With 6 Detecting Zones

High Sensitivity Walk Through Metal Detector Scanner Gate With 6 Detecting Zones photo-1

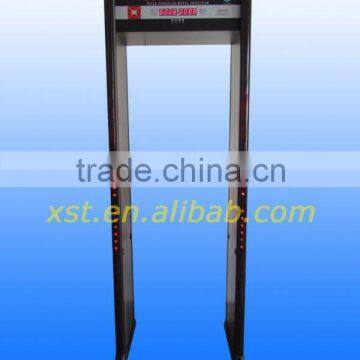

High Sensitivity Walk Through Metal Detector Scanner Gate With 6 Detecting Zones photo-2

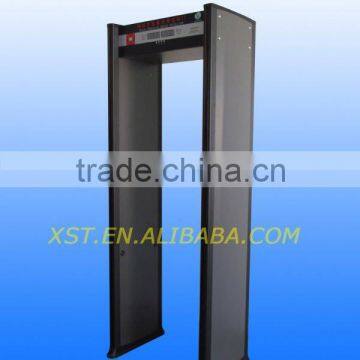

High Sensitivity Walk Through Metal Detector Scanner Gate With 6 Detecting Zones photo-3

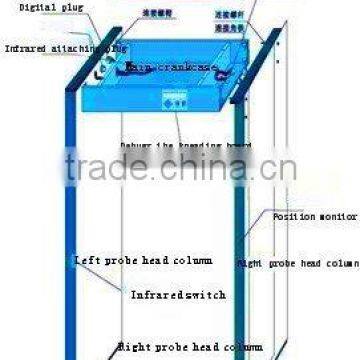

High Sensitivity Walk Through Metal Detector Scanner Gate With 6 Detecting Zones photo-4
High Sensitivity Walk Through Metal Detector Scanner Gate With 6 Detecting Zones photo-5
US$ 350 - 450 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Security King
Model Number:
XST-A2
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Security King
Model Number XST-A2

High sensitivity walk through metal detector scanner gate with 6 detecting zones





 shenzhen metal detector, walk-through metal detector, archway metal detector, metal detector, high quality metal detector



Product Description
  1. Six detecting zones which overlapped each other are as tall as examinee, combine with alarm-LED on every zone. Show the position of target metal directly.
  2. Four emitters match with receivers opposite, eliminate detecting blind spots.
  3. Sensitivities can be adjusted: Each area’s sensitivity can be adjusted from 1 to 100. You can select the right sensitivity you want. For example you can change the sensitivity to avoid inferences such as the coins, keys, buckle, etc.
  4. The function of statistics: The number of passed examinees and the alarm times can be count.

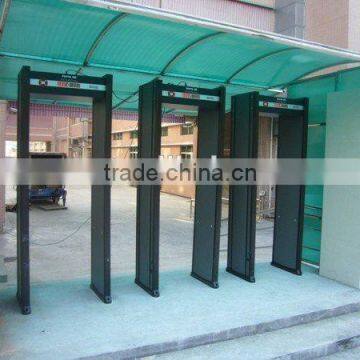

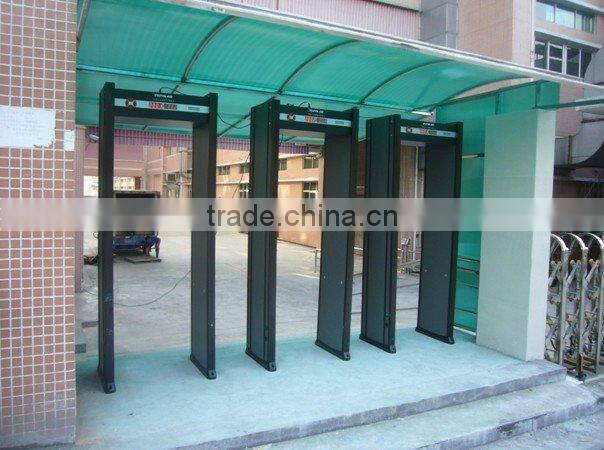

  5. Parallel operation: The gate can not only work itself, but also work together with the same model (when parallel operate, the distance between each unit must more than 40 cm), so that it can meet the demand of big visitor flow rate.
  6. No harm to people: The gate is harmless to people with cardiac pacemakers, pregnant women, tapes, videotapes.
  7. Installed conveniently: Integrated design, you can assemble or disassemble it in 20 minutes with the operation instruction.
  8. Protected by password: Only the authorized person can operate it.
  9. Location signal display light: Display the responses of each zone apart (independent of alarm lights). Adjust the sensitivity of each zone according to the responses, and get the best sensitivities.

Technical Parameters

Power Supply: 220V/AC

Power: <30V

External Dimension:  2200mm(H)*820mm(W)*550mm(D)

Passageway Dimension: 2000mm(H)*700mm(W)*550mm(D)

Work environment:  -20°C- +45°C

Standard: GB15210-2003<WALK THROUGH METAL DETECTOR>



Standard Configuration

One Main Case              One Left Probe             One Right Probe

One Power Line            Eight Screws

One Instruction (Including one Certificate of Quality & Guarantee Repair List)



Accessories Optional

Slipping groove: Let the personal belongings which may be interference (such as keys, watches, cell, etc) slip through.

Remote Control: Control the gate within 10 meters, when paralleled the distance should be shorter.

Storage Battery: Maintain the gate working for about 4 hours after charged.



Application

1. Places which should be security examined. Such as airport, customs, harbor, station, etc.

2. Places where prohibited metal items should be examined. Such as court, police station, jail, lockup, etc.

3. Public places entrances Such as important place, exhibition, business rally, celebration meeting, stadium, etc.

4. Industries where the valuable metal articles should be avoided missing. Such as hardware, electronics, jewelry, coinage line , etc.

5. Entertainment places where dangerous items should be forbidden. Such as nightclub, theater, ballroom, bar, KTV, etc.

6. Places where the dangerous items should not be taken with, such as the Bank , Government , Post office, school , private house ,etc.



Examining Standard

Electrical Equipments standardized by EN60950.

Radiation standardized by EN50081-1.

Anti-inference standardized by EB50082.

Execute the standard of National Standard of Metal Detector

PS: Coin Standard: The gate can detect one coin with out inference.



High sensitivity walk through metal detector scanner gate with 6 detecting zones



High sensitivity walk through metal detector scanner gate with 6 detecting zones



High sensitivity walk through metal detector scanner gate with 6 detecting zonesHigh sensitivity walk through metal detector scanner gate with 6 detecting zones



Our Services

 Warranty:

(1)All products have been Strictly Quality Checked before packing.(2)All Products have been well packed before shipping

(3)One Year warranty is proviced for all models. we will bear maintenance cost during warranty period.

(4)OEM Service ofference

 Design service offered

Buyer label offered



Delivery:

(1)Sample and Min Order will be delivery within 2-3 working days after receipt of payment.(2)For order over 500 pcs of sustomized order, please contact our sales to make sure the current inventory.



Payment:

T/T, Western Union, Moneygram ,Escrow,Paypal



After-sales Service:

1 year warranty for  all kinds of products;

If you find any defective accessories first time, we will give you the new parts for free to replace in the next order,  as an experienced manufacturer, you can rest assured of the quality and after-sales service.



Transportation:

Transported by DHL, UPS, EMS, Fedex, Air freight,Sea Freight.

Company Information



Shenzhen XinSaiTong Technology Company Limited is a high-tech enterprise, professional for designing, manufacturing, marketing, XST engineering, electronic security equipment on Security porducts.


Our Vision: Spread our band with high quality products, take the market with high quality products, competitive price and best after sale service, enlarge the company with invition. We keep updating and improving our products and developing new products to meet all the needs.

Our main products : handheld metal detectors, walk through metal detectors, under vehicle search mirrors and underground search metal detectors, X-ray inspection system and EAS. And our main markets are Eastern Europe, South America, North America, the Middle East, Africa and Southeast Asia. Until now, we have exported our products to more than 80 countries and districts .

Our products are widely recognized and trusted by lots of companies. We aim to achieve a win-win cooperation. We are waiting for you!




FAQ

  Q1: How To Order
  A: Step 1, please tell us what model and quantity you need;
      Step 2, then we will make a PI for you to confirm the order details;
      Step 3, when we confirmed everything, can arrange the payment;
      Step 4, finally we deliver the goods within the stipulated time.

 Q2: When will make delivery ?
 A: Delivery Time
-Sample Order: 1-3 days after receipt of the full payment.
-Stock Order: 3-7days  after receipt of the full payment
-OEM Order: 12-20days  after receipt of the deposit.

  Q3: Do you support drop shipping?
  A: Yes,your drop shipping is available.
