Help Center5630 Smd Led Lighting Bulb E27 /B22,RA80 7W
Related Products
-
Led Bulb Lighting 9W 880lm RA80 E27 CE,RoHS CertificatedUS$ 3.35 - 3.6MOQ: 200 Pieces -
Energy Saving Led Bulb LampUS$ 2.08 - 2.56MOQ: 100 Pieces
-
9W 800lm LED Bulb E27US$ 5 - 20MOQ: 50 Pieces
-
Best Seller 5W/7W SMD5630 Plastic Shell Led Light BulbUS$ 3.58 - 6.6MOQ: 100 Pieces
-
Dimmable Available 4W Ceremic E27 Led BulbUS$ 2.08 - 2.95MOQ: 100 Pieces
Specifications of 5630 smd led lighting bulb E27 /B22,RA80 7W
| Specification | SPD-BP3001-5630-7W |
| Input Voltage | AC100V-240V |
| LED Type | SMD 5630/5730 |
| LED Chip | Sanan or New Century |
| LED QTY | 14pcs |
| Lumen | 630LM (45-50lm/led) |
| Rated Power | 7W (0.5W/led) |
| CCT | Pure white 6000-6500K |
| Ra | >80 |
| Beam Angle | 180° |
| Lamp Base | E27/B22 |
| Dimmable | No |
| PCB | Aluminum |
| Material | Plastic-coating Aluminum & PC cover |
| Protection Grade | IP20 (non-waterproof) |
| Life Span | 30000hours |
| Dimension | Φ60*H113mm |
| N.W. | 75g |
| Package | White box/Color box |
SMD source of 5630 smd led lighting bulb E27 /B22,RA80 7W

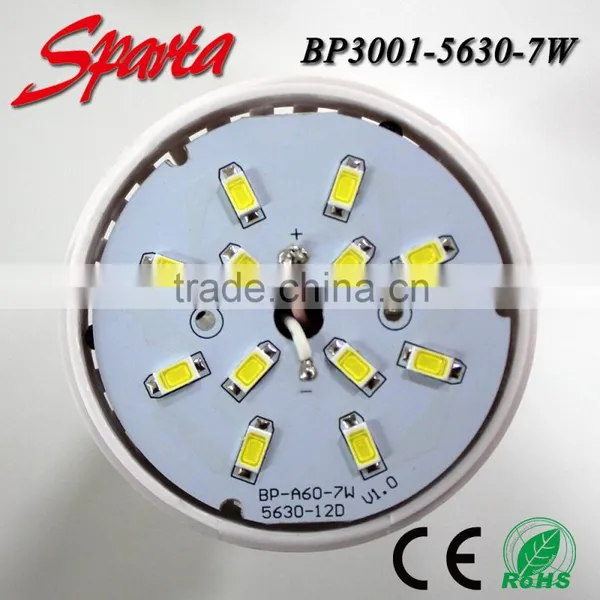

1.Small and beautiful delicate uograde chip,45-45lm per each led, high brightness, low degradation,longevity. SMD5630

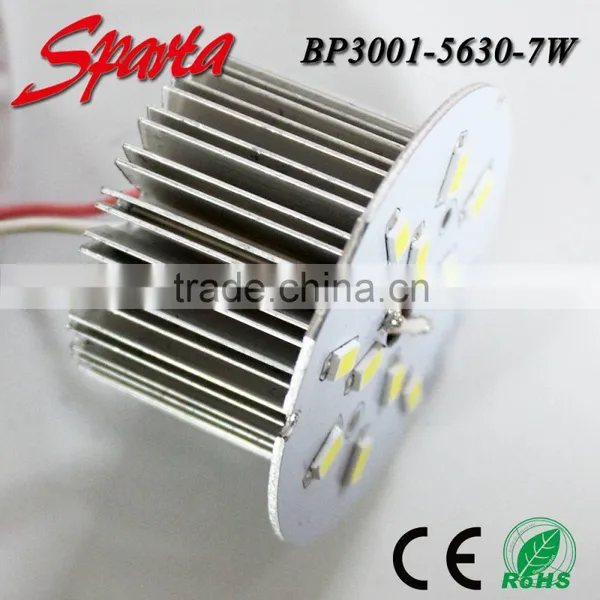

2.Good performance for heatsink,made out of aircraft aluminum.We use screws to fasten the PCB and base, not like those cheap quality which could be easily fall to pieces.
3.Constant current isolated driver,we use insulated thermal conductive silicone grease instead of insulating tape.

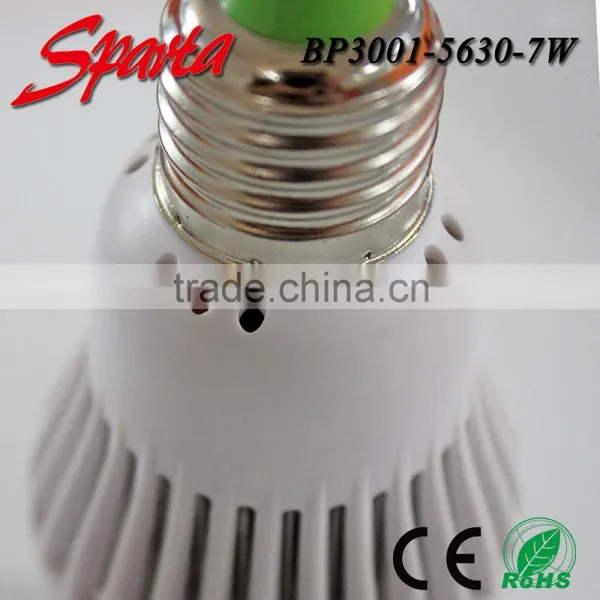

4. There are several air vents along the bottom perimeter.Bulb body designing with dispersing air hole,increase heat emission.
5. Imported PC through the mask,adding diffusion powder high light transmission rate of 95%.optical uniformity,no dark spot.
Product Features of 5630 smd led lighting bulb E27 /B22,RA80 7W
1. 80% Energy saving: low power consumption, lesser heat dissaption,can replace traditional bulb and halogen lamp.
2. Imported chip with high quality;
3. Cold light source, no radiation, no lead and mercury;
4. Constant current power supply to ensure the long life and stability;
5. Operation temperature: -22 F to 122 F(or -30 degree C to 50 degree Celsius)
6. Fashionable design, best heat dissaption ability, easy to install.
7. Optimizing the LED layout to get the best lighting efficiency;
8. Environment friendly, soft light;
9. Life span: 30,000 hrs;
10. Approved by CE,RoHS,EMC,LVD;
High color rendering index restore the original color
Applications of 5630 smd led lighting bulb E27 /B22,RA80 7W
Widely used in home illumination and decoration, office area, shopping malls, hotels, hospitals, exhibition halls, coffee bars. factories, school, display windows etc.
Installation Instruction of 5630 smd led lighting bulb E27/B22,RA80 7W
1.Do cut off the power and let the lamp coll down before you replace the lamp;
2.Do use the correct voltage;
3.Can not be used as emergency lamp;
4.No dimmable;
5.The environment temperature of the lamp operation is 20- 50.
Certificates of 5630 smd led lighting bulb E27/B22,RA80 7W

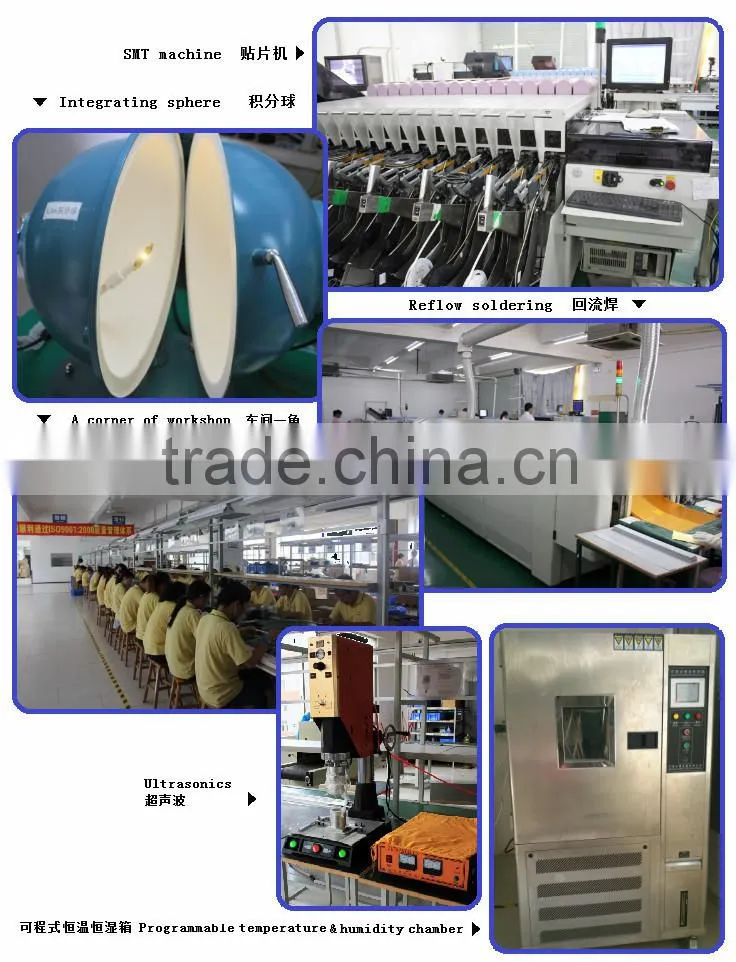

About Factury & Our Service
1.We have always been trying to provide the best service and reliable products for every customer, however, accident may happen sometimes, please contact us to resolve any issue before leaving a negative feedback.
2. Any question please feel free to contact us.
