Manufacturer Provide Walk-through Metal Detector XST-F24

Specifications

Manufacturer provide Walk-through Metal Detector XST-F24

Walk-through Metal Detector ,Security Metal Detector ,Security System,Security equipment

Features

Easy Assembly
The XST-F24's modular design allows for a quick and simple assembly of its 4 (four) sub-assemblies using only 8 (eight) screws and 3 (three) internal electrical connections.

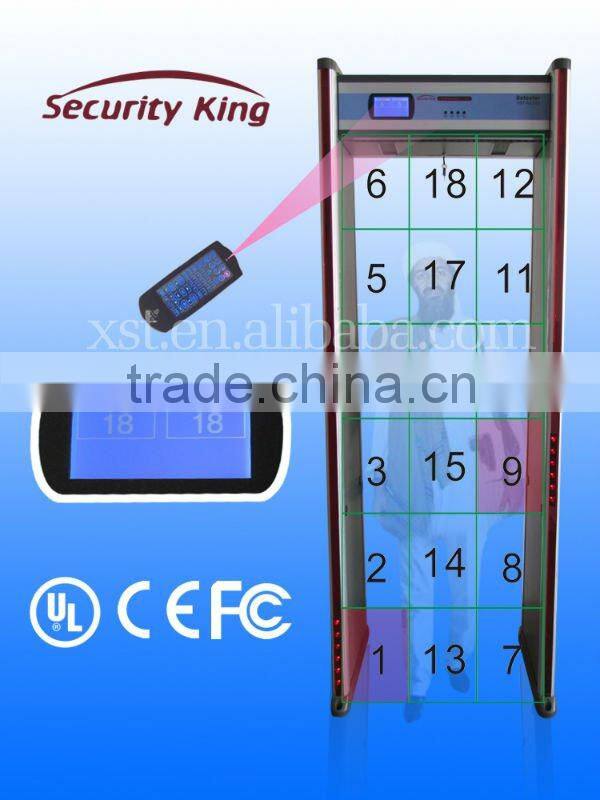

24 Distinct Pinpoint Detection Zones
The XST-F24 offers exclusive multiple target pinpointing with 24 distinct zones for full target coverage on the left, center and right side of the body from head to toe.

Entry Pacing Lights
Smooth, efficient traffic flow with easy-to-view, eye-level pacing lights with international "wait" and "proceed" symbols on the entrance side of each panel.

Overhead Control Unit
LCD Display, alarm lights, LED bar graphs and control touchpads plus all wiring, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and external control box.

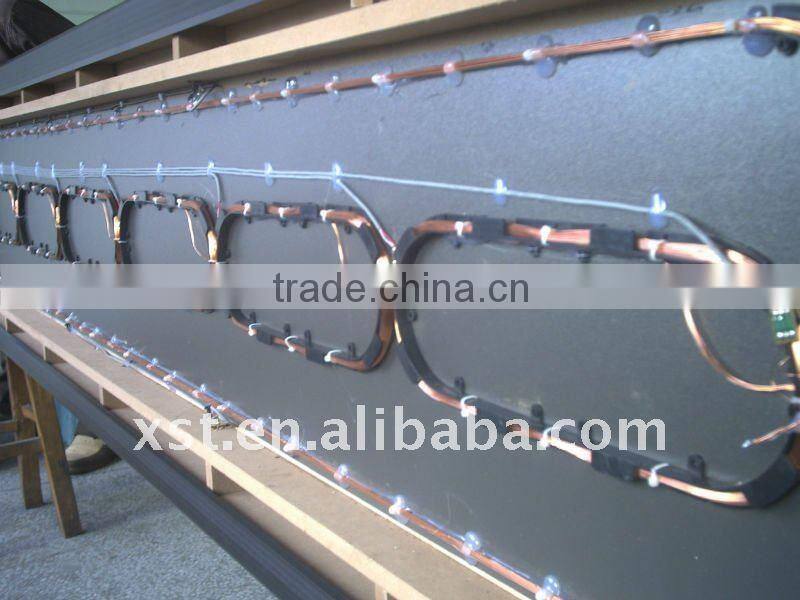

Multi-dimensional Coil Design
The XST-F24's exclusive multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation.

Audible and Visual Alarms
Audible alarm and Visual LED lights signal when a target has been detected.

1. Superior target detection with unmatched discrimination of harmless items such as coins, jewelry, keys, cigarette packs, etc.
2. The ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications including the new Enhanced Metal Detector (EMD) required for all airport installations.
3. Multi-dimensional coil design (24 distinct pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation.

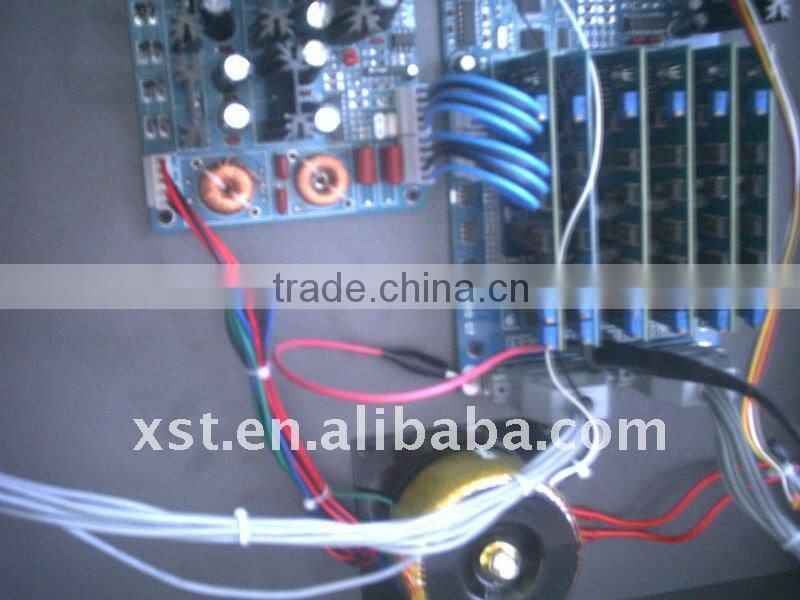

4. Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons.
5. Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges.
6. Durable, IP 55 weather-proof construction.

Specifications:

• Operating Temperatures
  -4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing
• Power
  Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets UL, CE,FCC standards.
• Weatherproofing / Foreign Object Protection Standards
• Tamper-Proof
  All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
• Construction
  Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
• Control Outputs
  Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
• Traffic Counter
  Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.
• Synchronization
  Dual channels and DSP circuitry allow several XST-F24's to operate simultaneously in close proximity to one another.
• Interference Suppression
  Special Security King DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.
• Alarms
  Audible tone and volume adjustable. Bright LED visual alarm.
• Target Pinpointing Lights
  24 distinct zones are displayed with 2 independent columns of LED's located on exit side of XST-F24.
• Pacing Lights
  International symbols
• Warranty
  Limited 24 months, parts and labor

Accessories Purchased

Slipping groove: Let the personal belongings which may be interference (such as keys, watches, cell, etc) slip through.

Remote Control: Control the gate within 10 meters, when paralleled the distance should be short.

Storage Battery: Maintain the gate working for about 4 hours after charged.

Applications:

• Airports
• Correctional Facilities
• Public Buildings
• Private Buildings
• Schools
• Special Events
• Loss Prevention
• Nuclear Facilities
• Transportation Terminals
• Courthouses
• Corporate Security
• Historical Landmarks

Examining Standard

Electrical Equipments standardized by EN60950.

Radiation standardized by EN50081-1.

Anti-inference standardized by EB50082.

Execute the standard of National Standard of Metal Detector

PS: Coin Standard: The gate can detect one coin with out inference.
