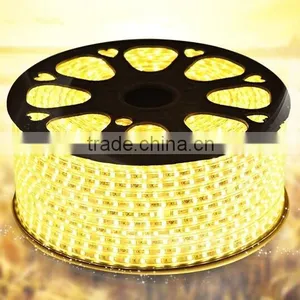

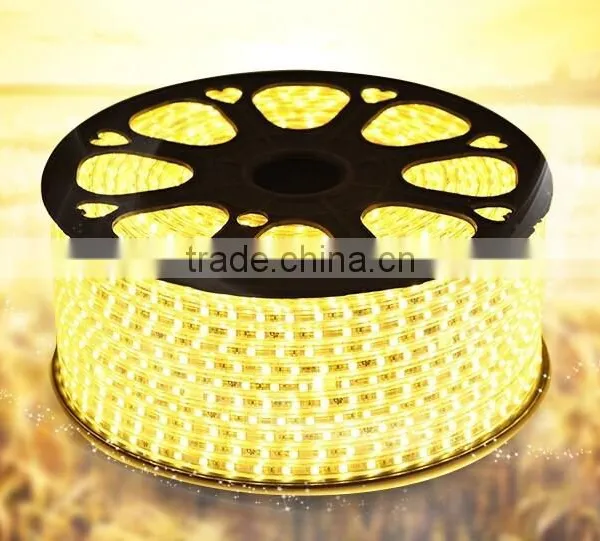

Led Strips 5050 High Brightness

Led Strips 5050 High Brightness thumbnail-1
Led Strips 5050 High Brightness thumbnail-2
Led Strips 5050 High Brightness thumbnail-3
Led Strips 5050 High Brightness thumbnail-4
Led Strips 5050 High Brightness photo-1
Led Strips 5050 High Brightness photo-2
Led Strips 5050 High Brightness photo-3
Led Strips 5050 High Brightness photo-4
US$ 1.24 - 1.32 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
SMD5050
Type:
Flex LED Strips
Input Voltage(V):
AC100-140V AC220-240V
Contact Supplier Request Quote Chat Now
Shenzhen Sparta Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050
Type Flex LED Strips
Input Voltage(V) AC100-140V AC220-240V
Lamp Power 14.4W/meter
Lamp Luminous Flux(lm) 500lm/Meter
Color Temperature(CCT) 2800-3200K
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CCC, CE, EMC, ETL, FCC, PSE, SAA, UL
Emitting Color Other
Place of Origin Guangdong, China
Brand Name SBARTAR /Neutral, SBARTAR /Neutral
Model Number high voltage led strip light with Blister packing, SPT-HB5050-60WW

Led strips 5050 with CE RoHS PSE approved

led strips 5050 high brightness

Advantages of 3 Meters blister packaging 5050 led strip light hot sale!!



AC 110V/220V led flexible strip is an "updated version" of the high voltage strip. 50 meters in one line without connection, and no signal amplifier needed.

  1. Low price with high brightness.
  2. Save cost on power supply and installation,easy to transport and install.

Product Description  of Natural white blister strip led 5050 with CE RoHS PSE approved

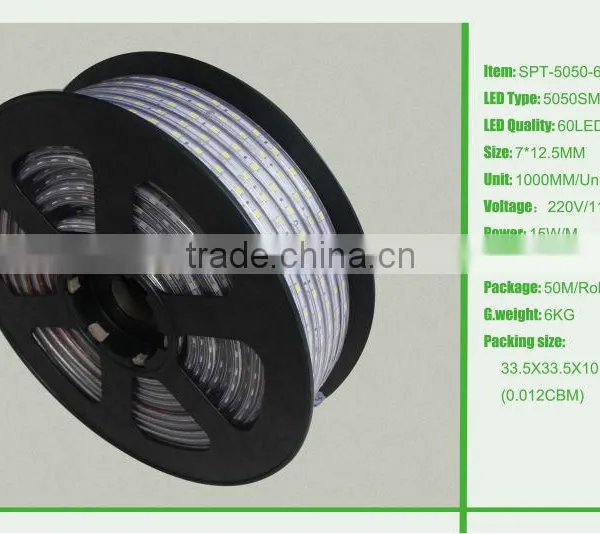

Item   SPT-HB5050-60WW
Parts list NO
Kit Size


LED type SMD5050
LED chip brand Epistar/Sanan
Lumen per led 22-24lm
Input voltage AC220V (AC110V is optional)
Max. power 14.4W/M

FPC width 8mm
Dimension of strip W12.5*H7.5mm
LED emitting color Cool White 4000-4500K (other color is optional)
Beam angle 120 degree
Waterproof grade IP65
Minimum cut length 1M can be cut along the cutting mark (0.5M for AC110V)
Working temperature -20°C~+40°C
Working humidity 5%~95%
Material LED+PVC+PFC+copper
Warranty 2 years



Features of Natural white blister strip led 5050 with CE RoHS PSE approved



  1. Length Optional:1M/3M/5M.Can be mixed into any length you need.(3528 or 2835 maximum 100m within one driver, 5050 maximum 50m)
  2. There are fast connectors on both ends of each strip,connect easily.
  3. Installation: Cable wire + standard strips + end cap, connect with screw connector, fix th strip with clips and screws,easy and convient.
  4. Repair free: easily screw off the broken strips and replace with a new piece.

led strips 5050 high brightness

LED Strip Item of Natural white blister strip led 5050 with CE RoHS PSE approved

Item LED Type LED Qty Emitting Color Lumen per LED Specification
SPT-5050HB-30W SMD 5050 30leds/M 6000-6500K 12~14LM or 22~24LM

Input:AC110V/220V

Max. Power:7.2W/M

Max. Power:21.6W/Kit

PCB width:8mm

Size:W12.5mm*H7.5mm
SPT-5050HB-30NW 4000-4500K 12~14LM or 22~24LM
SPT-5050HB-30WW 2800-3200K 12~14LM or 22~24LM
SPT-5050HB-30R Red High Brightness
SPT-5050HB-30G Green High Brightness
SPT-5050HB-30B Blue High Brightness
SPT-5050HB-30Y

Yellow

 High Brightness





Item LED Type LED Qty Emitting Color Lumen per LED Specification
SPT-5050HB-60W SMD 5050 60leds/M 6000-6500K 12~14LM or 22~24LM

Input:AC110V/220V

Max. Power:14.4W/M

Max. Power:43.2W/Kit

PCB width:8mm

Size:W12.5mm*H7.5mm
SPT-5050HB-60NW 4000-4500K 12~14LM or 22~24LM
SPT-5050HB-60WW 2800-3200K 12~14LM or 22~24LM
SPT-5050HB-60R Red High Brightness
SPT-5050HB-60G Green High Brightness
SPT-5050HB-60B Blue High Brightness
SPT-5050HB-60Y Yellow High Brightness







Installation Instructions  oof Natural white blister strip led 5050 with CE RoHS PSE approved

Following these step to fix the strips.

led strips 5050 high brightness



Strip & Power cord

Step 1:For avoid short cut, make sure the section smooth.

Step 2:Insert the plug needle into the led strip

Step 3:Insert plug needle into the hole of the power cord.

led strips 5050 high brightness

If you have any doubt, please contact our online service,we will help you soon.



Accessories  of Natural white blister strip led 5050 with CE RoHS PSE approved

If you need more accessories,please click the pictures,for more please inform us.

led strips 5050 high brightness led strips 5050 high brightness led strips 5050 high brightness
SPT-HD-PC80CN12 5050 SPT-HV-CLIP14 5050 SPT-HV-END14 5050



 Applications of Natural white blister strip led 5050 with CE RoHS PSE approved

  1. Led strips have many colors and suit for holiday decoration,like Christmas decoration, Diwali lights.

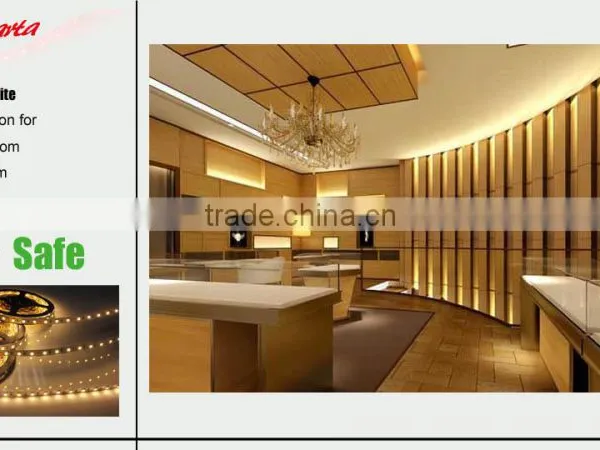

  2. Led flexible strips could be installed at the corner,ceiling and used as backlight.
  3. Waterproof led strips suit for indoor or outdoor use.

 led strips 5050 high brightnessled strips 5050 high brightnessled strips 5050 high brightnessled strips 5050 high brightnessled strips 5050 high brightness



Packaging&Shipping  of Natural white blister strip led 5050 with CE RoHS PSE approved

Item Quantity Meas. G.W. N.W. Shipping Mark
SPT-HC5050-60NW  50M 33*33*15.5cm  7.5kg   7kg  LED FLEXIBLE STRIP





Quality Control  ofNatural white blister strip led 5050 with CE RoHS PSE approved

We check all the material before production with our advanced equipment, to ensure the specification of material meet our requirement or customer’s special requirement.

  1. We do the red ink test and 24 hours aging test to make sure the LED is OK.
  2. We keep sample of LED of each order, including detail specification, if customer require the same color temperature in different order, we can make it as request. If any problem happen, we can also check what the problem was.
  3. We used automatic SMT machine to put soldering paste on the PCB, to ensure every soldering point has enough soldering paste, which can avoid miss soldering problem.
  4. We use automatic computer controlled high temperature reflow soldering machine, to ensure all the LED and components well soldered on the PCB, and avoid miss soldering problem.
  5. We will do the third QC of goods, check the soldering problem, outlook(clean or dirty), color consistence of LED, our QC will also do the beating test for the 5050 led strip light to avoid any soldering problem.
  6. We do the temperture test(-20~40) for 48hours, most problems can be found here. We can fix them in this procedure. If many LED has problem, we will reject all the goods and make new one for our customers.

led strips 5050 high brightness

led strips 5050 high brightness

Welcome to visit our factory ! Contact me derectly !
