Specifications
Hand Held Metal Detector1.Auto detects & light
2.With the earphone
3.Adjustable sensitivity
4.Reset switch operation

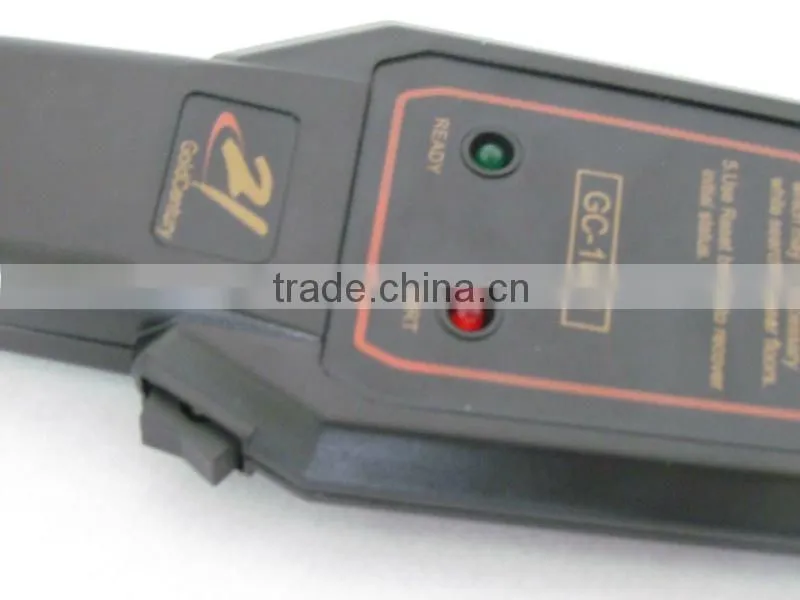

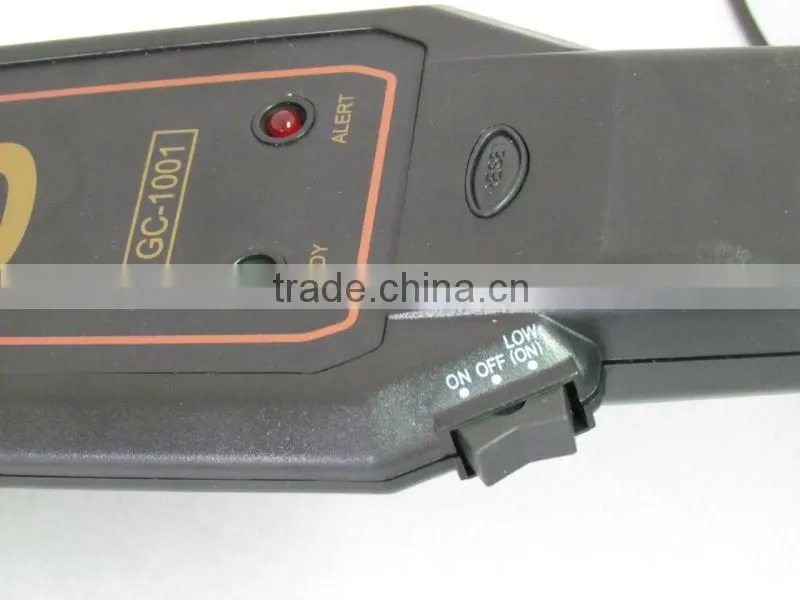

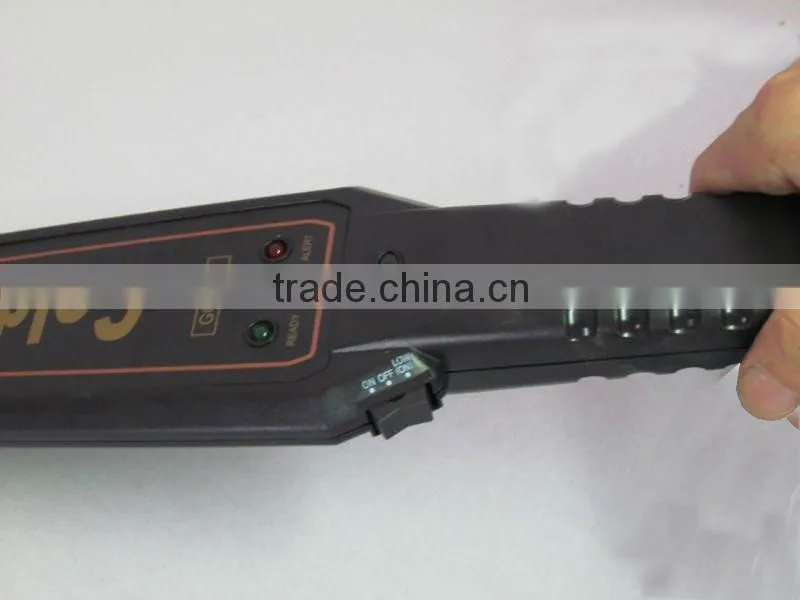

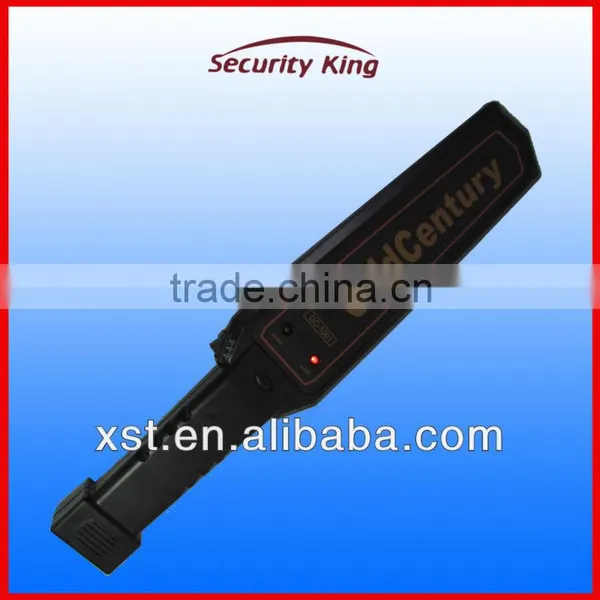

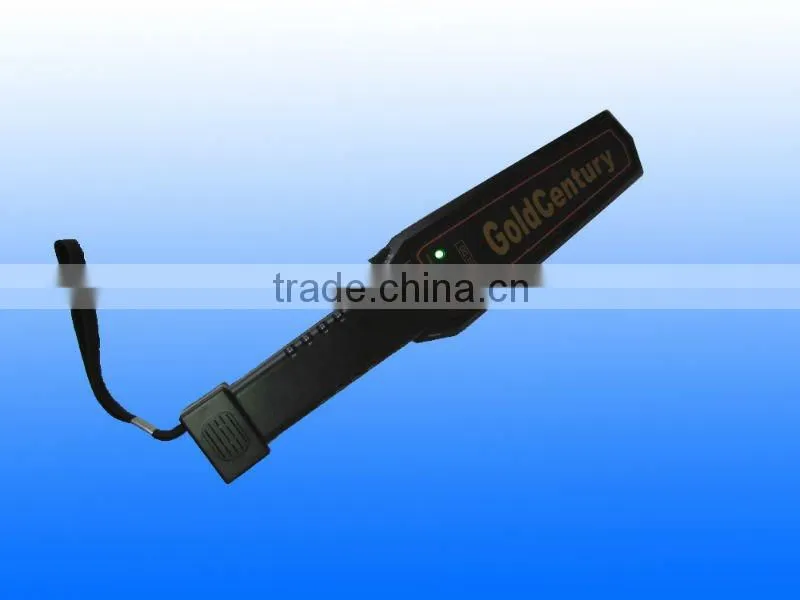

Super Scanner Hand Held Metal Detector for security(GC-1001)
Feartures:
1.With Elegant appearance,super sensitivity.
2.Adjustable Sensitivity,easy to use.
3.3 kinds of alarm methods:buzzer & LED alarm;viberation & LED alarm.
4.After installing chargeable battery (*Optional) in the battery compartment,you can chareg the device directly.
Function:
1.The battery lid can be opened by pushing backward with thumb at the concave groove.
2.Install the 9V battery according to the anode and cathode signs on the battery lid.
3.Cover with the battery lid and push forward firmly.
Operation:
1.Firstly,scanning the front body from the right shoulder,and move done to the right ankle,from the right ankle to the left,and move up to the left shoulder
2.Secondly,scanning the back body from the head,move aling the outline of the body,and over the left hand,the left leg,and move from the left ankle to the right ankle,then along the right leg and hand up to the right shoulder,from the neck move along the spine
3.While scanning the ankle and feet area,holding the detector level to the ground about 1~2 inches above the surface.When adetecting is being done near the ground,reduce the sensitivity
Sensitivity Adjustment:
1.The sensitivity shall be adjusted when performance instability is observed or sound is produced when detecting human body without any metal stuff because the detection distance is less than the stipulated requirement or the sensitivity is too high.
2.Rotate the Sensitivity Adjuster clockwise,until there is no sound from the Buzzer,then counter-clockwise barely to the position where a sound is produced,then rotate for another half a circle clockwise,until the sensitivity meets the requirement.
Detection distance:
The sensitivity of the detector is determined mostly by the size,shape and composition of the object to be detected.
Typical performance figures are given below:
Object:Sensitivity
Pin:30-60mm
One coin:75-100mm
6 inches knife:160-180mm
64 model hand gun:180-195mm
Note:
1.Be sure to switch off the power after use.If you are not going to use it for a while,take the battery out.
2.When use rechargeable battery,duration of charging is 5~6 hours.
3.Voltage of Charger:9~12V (DC). (*Charger is Optional)
4.Keep the metal detector dry and clean.Wipe off the detector by wet cloth,don't use the chemical detergent.
