110V 220V Home Decoration Constant Current Warm White Flexible Smd Led Strip
US$ 2.69 - 2.77
MOQ: 100 Meters
Key Specifications
Get Latest Price
LED Light Source:
SMD5054
Type:
Flex LED Strips
Input Voltage(V):
AC220V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
110V 220V Constant Current Home Decoration Led Flexible 5054 Smd Led LightUS$ 2.69 - 2.77MOQ: 100 Meters -
Constant Current Home Decoration Rechargeable Led Flexible 5054 Smd Led LightUS$ 2.69 - 2.77MOQ: 100 Meters
-
110V 220V Constant Current Home Decoration Rechargeable Led Flexible Strip LightUS$ 2.69 - 2.77MOQ: 100 Meters
-
110V 220V Constant Current Home Decoration Rechargeable Led Strip LightUS$ 2.69 - 2.77MOQ: 100 Meters
-
110V 220V Constant Current Home Decoration Floor Light Led Strip LightingUS$ 2.69 - 2.77MOQ: 100 Meters
LED Light Source
SMD5054
Type
Flex LED Strips
Input Voltage(V)
AC220V
Lamp Power
Max.12W
Lamp Luminous Flux(lm)
900
Color Temperature(CCT)
3000K
Working Temperature(℃)
-20, 40
Working Lifetime(Hour)
30000
Lamp Body Material
Copper
Certification
CE, EMC, Energy Star, LVD, PSE, SAA, UL
Emitting Color
Warm White
Place of Origin
Guangdong, China
Brand Name
neutral/OEM/SBARTAR
Model Number
SPT-CC5054HC-60
Product Description

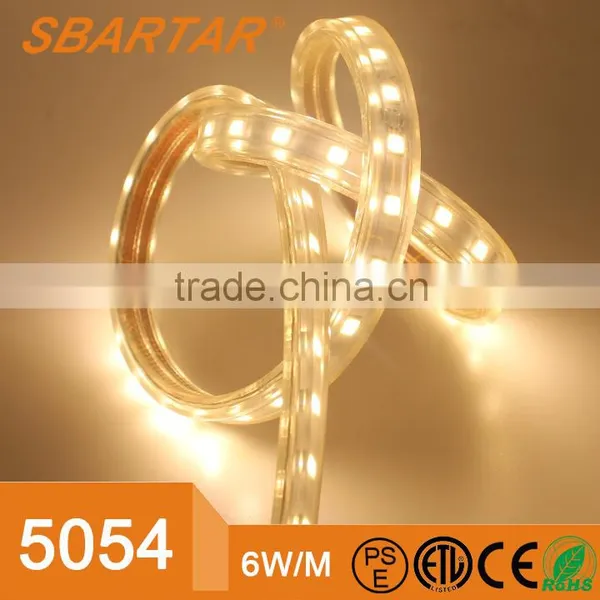

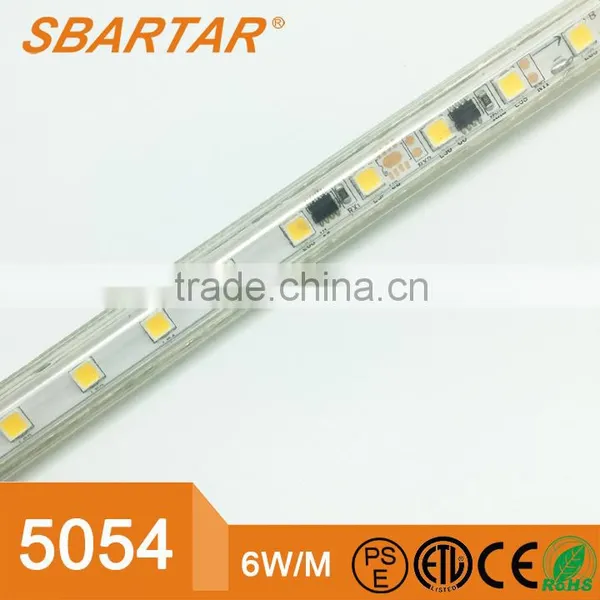

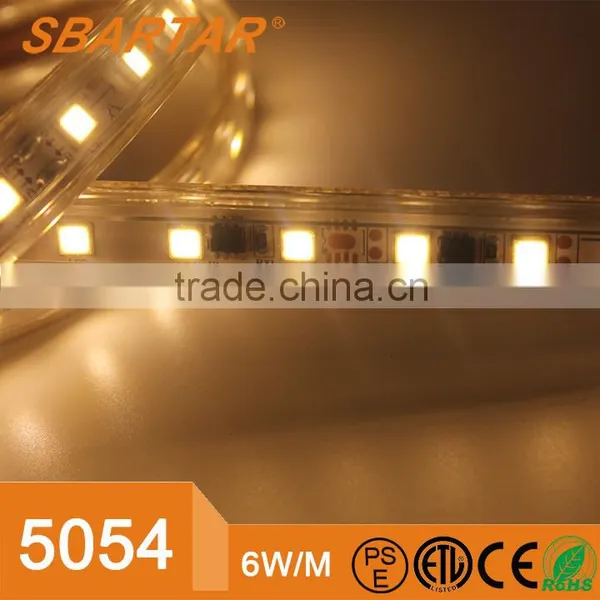

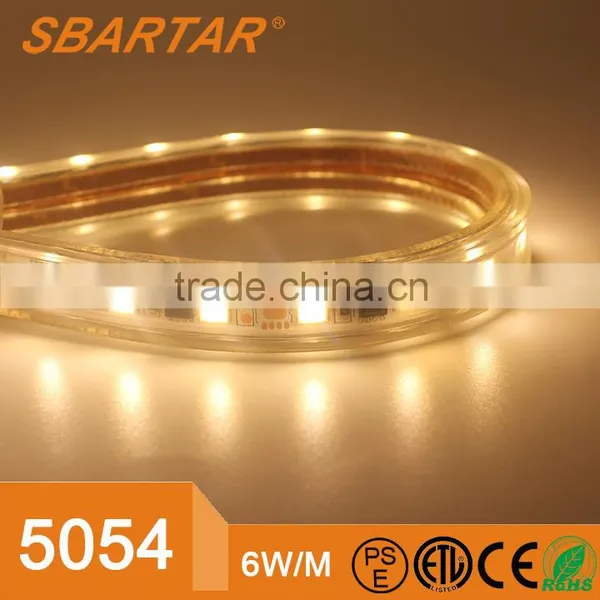

Specifications of flexible smd led strip
| Item | SPT-CC5054HC-60WW |
| LED Type | SMD5054 |
| LED chip brand | Epistar/Sanan/Sumsung |
| Lumen per led | 30-33lm/led |
| LED Qty | 60leds/M |
| Lumen per meter | 900LM |
| Input voltage | AC220V(AC110V is optional) |
| Max. Power | 6W/M |
| Max. Current | 0.05A (0.1A for AC110V) |
| FPC width | 10mm |
| Sectional Dimension | Max. Width14.5*Thickness7.5mm |
| LED Emitting Color | Warm White 2800-3200K (other colors available) |
| Beam angle | 120 degree |
| Waterproof Grade | IP67 UV protect PVC |
| Cuttable | 1 Meter |
| Working Temperature | -20℃~+40℃(25℃-best fit) |
| Working humidity | 5%~95% |
| Driver Mode | Constant voltage |
| Material | LED+PVC+PFC+copper |
| LED Lifespan | >50000 hours |
| Package | 1* 50 Meters/Roll + 1* Power cord + 1* End cap + 50* Mounting Clips |
| Neutral label + User manual + K ≠ K carton |
Features of flexible smd led strip
Long lifespan with 3 years warranty
- Very low light decay 0.5% after 1000 hours.
- It's won't be affected by the voltage fluctuation.
- Self-adjustable in different ambient temperature.
- Proprietary intelligent IC to defend led strip against great heat, and avoid strip burned due to a sudden change of voltage. (IC patent No.:201520214324.5)
- High brightness led and less heat realize lower light decay,less than 30% after 5 years.
- Super service life help to make 60% cost-saving.
- Easy to install, Plug and Play without wiring or power supply, 110-120V powered
- 50 meters or 100 meters in one roll without connection, and no signal amplifier needed.
- Waterproof IP65, can be used indoor and ourdoor
- Even one led not working,others led still working.
- Low Power Consumption, Super Bright LED light running with Low Temperature
- Energy saving,environment protection,longl life,low light decay, Flexible IP65 Light Body
- Flexible Clear PVC tube, Transparent and Durable and it can be shaped, can be shaped, formed or bent in any angle
- Eco-friendly: No splash and UV, without mercury and no damage to human and environment
Installation
Accessories of flexible smd led strip
If you need more accessories,please click the pictures,for more please inform us.
|
|
|

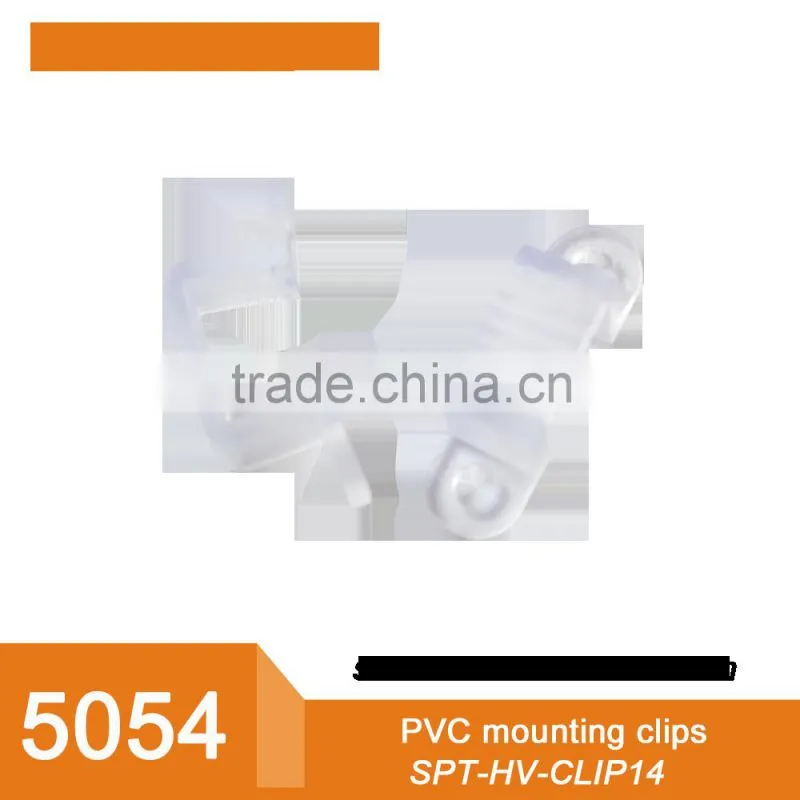

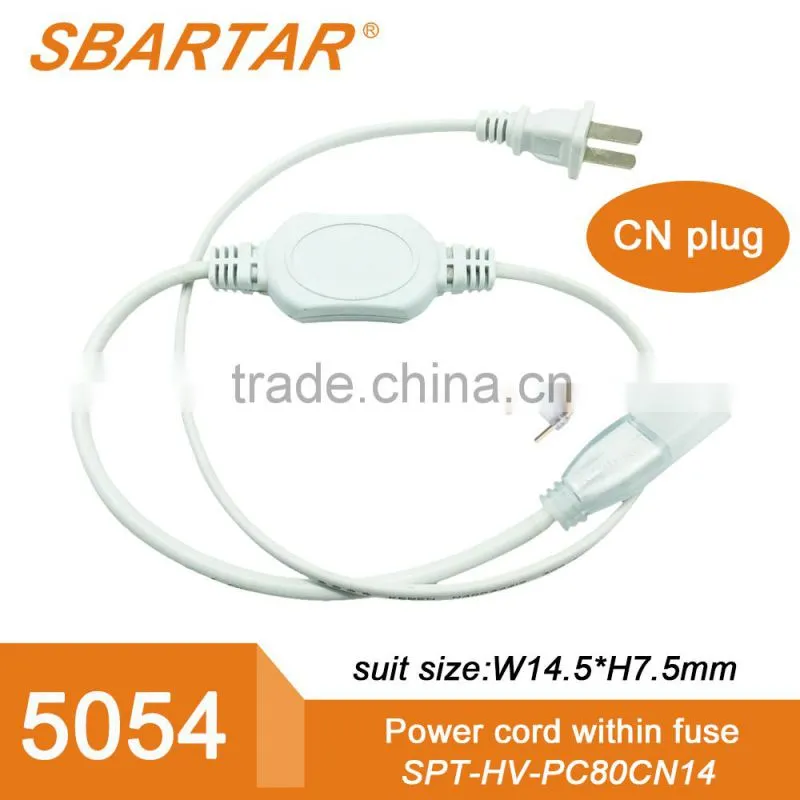

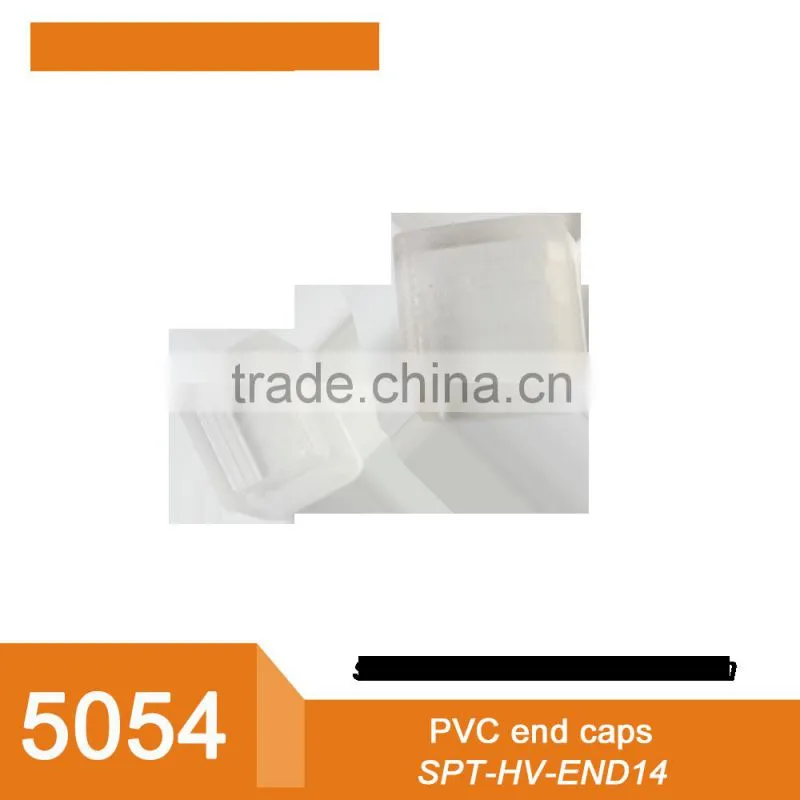

| SPT-HV-PC80CN14 5054 | SPT-HV-END14 5054 | SPT-HV-CLIP14 5054 |
Application

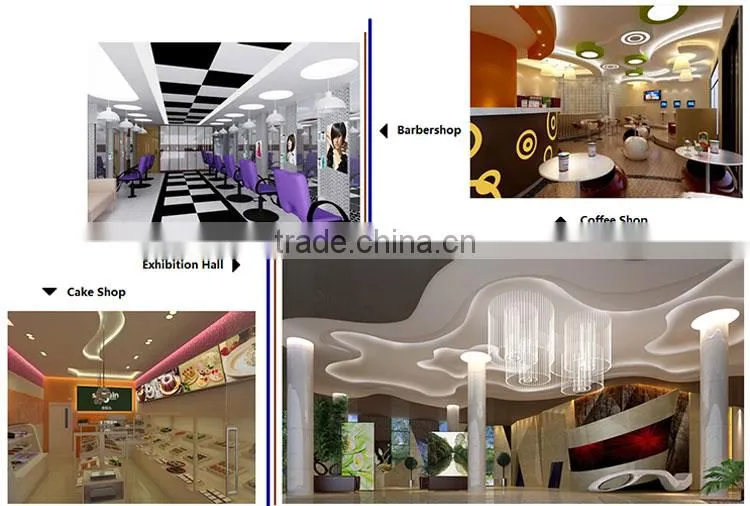

Applications of flexible smd led strip
Light up colorful home life, DIY household lights for hallways, stairs, trails ,windows
Light up colorful life hotels decoration use,Theaters, clubs, shopping malls, festivals and performances Architectural decorative lighting,Archway, canopy and bridge edge lighting, Security lighting and Emergency
Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting
- Window display lighting
- Amusement park or theater
- Emergency lighting
- Stairway accent lighting
- Ad signs, light boxes
- Back lighting for signage letters
- Holiday decorative lighting
- Architectural decorative lighting
-
- Led strips have many colors and suit for holiday decoration,like Christmas decoration, Diwali lights.
- Led flexible strips could be installed at the corner,ceiling and used as backlight.
- Waterproof led strips suit for indoor or outdoor use.
Packaging & Shipping
Package of flexible smd led strip
| Shipping Mark | Qty | Meas. | N.W. | G.W. |
| LED FLEXIBLE STRIP | 50 meters | 33*33*15.5cm | 6.5kg | 7.5kg |
Plastic Scroll + Carton Contents:
Led Strip * 100 meters
Power Cord * 1pc
End cap * 1pc
Mounting clips * 50pcs
User Manuel * 1pc
Wholesale Blister Packaging for retailer and supermarket of
|
|
|
| 1 M Package | 3 M Package | 5 M Package |
|
|
| Power Cord | Mini Controller |
Shipping of flexible smd led strip
- Goods will be shipped within 5-15 working days after receiving payment.
- It will takes approximately 3-7 working days by Express,DHL/UPS/Fedex etc.
- Please check your delivery address is right.
- Tranking number and finished goods pictures will be emailed.
- Please feel free to contact us,we will try our very best to resolve any problems with you.
Quality Control of flexible smd led strip
- We check all the material before production with our advanced equipment, to ensure the specification of material meet our requirement or customer’s special requirement.
- We do the red ink test and 24 hours aging test to make sure the LED is OK.
- We keep sample of LED of each order, including detail specification, if customer require the same color temperature in different order, we can make it as request. If any problem happen, we can also check what the problem was.
- We used automatic SMT machine to put soldering paste on the PCB, to ensure every soldering point has enough soldering paste, which can avoid miss soldering problem.
- We use automatic computer controlled high temperature reflow soldering machine, to ensure all the LED and components well soldered on the PCB, and avoid miss soldering problem.
- We will do the third QC of goods, check the soldering problem, outlook(clean or dirty), color consistence of LED, our QC will also do the beating test for the LED strip to avoid any soldering problem.
- We do the temperture test(-20~50) for 48hours, most problems can be found here. We can fix them in this procedure. If many LED has problem, we will reject all the goods and make new one for our customers.
