Home > Metallurgy, Mineral & Energy > Black Metal & Products > Steel Strand Wire 1x7

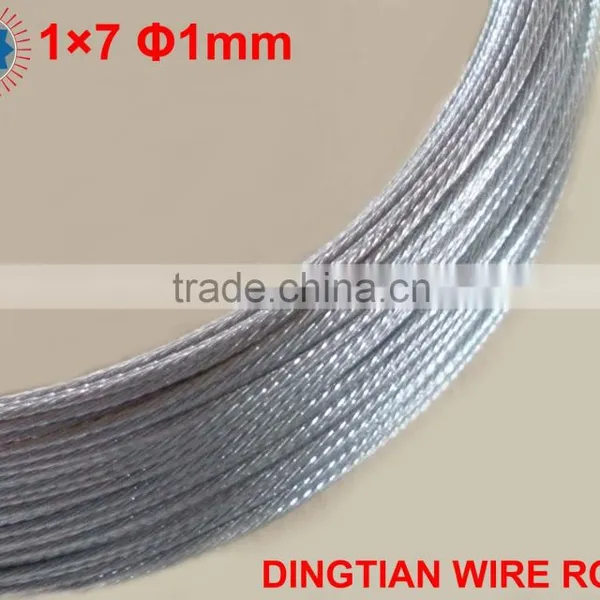

Steel Strand Wire 1x7

Steel Strand Wire 1x7 thumbnail-1
Steel Strand Wire 1x7 photo-1
US$ 800 - 2,100 MOQ: 2 Metric Tons
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DINGTIAN
Model Number:
1*7
Contact Supplier Request Quote Chat Now
Nantong Dingtian Metal Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Nantong Or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name DINGTIAN
Model Number 1*7
Application for stranding
Shape Round
Material Alloy
Dimensions 1*7
Chemical Composition Alloy

Galvanized steel stand wire:



Product Description

Product Detail


Steel Grade(Sha steel)  carbon steel
Standard ASTM,DIN,GB,ISO,EN
Diamater as your requests
Place of Origin Jiangsu,China(Mainland)
Alloy or not  Alloy or non-alloy
Brand Name Dingtian
Payment & Shipping Terms
Port Shanghai or Nantong Port
Packaging Details Wooden/Plastic Reels,Wooden Box,as required.
Delivery Time Within 40 days
Payment Terms L/C,T/T
Supply Ability 800 tons per month
Minimum Order Quantity 2000m
Detailed product description
Surface  bright or galvanized

Tensile strength

 1570,1670,1770,1870,1960MPa
OEM or not allowed


Raw Material Chemical Composition


Steel Grade

 Carbon(%) Silicon(%) Manganese(%) Phosphorus(%) Sulphur (%) Chromium(%) Nickel(%) Cuprum(%)
60# 0.60-0.61 0.18-0.22 0.52-0.59 0.012 0.007 0.06-0.07 0.05 0.18
65# 0.65 0.21 0.56 0.013 0.008 0.05 0.04 0.14
65Mn 0.60-0.70 0.10-0.25 0.70-1.00 0.030 0.030 0.20 0.20 0.25
70# 0.69-0.71 0.19-0.21 0.53-0.58 0.010-0.012 0.003-0.006 0.01-0.05 0.02-0.04 0.04
72A 72B 0.72 0.19 0.71 0.013 0.006 0.02 0.02 0.03
80# 0.80-0.81 0.22-0.24 0.59-0.76 0.008 0.004 0.04
82A 82B 0.82 0.24-0.25 0.76-0.77 0.011-0.014 0.004-0.007 0.17-0.17



1*7
Nominal diameter mm Approximate weigh kg/100m Minimum breaking force kN
0.6 0.19 0.34
1.2 0.75 1.37
1.5 1.17 2.15
1.8 1.69 3.09
2.1 2.3 4.21
2.4 3.01 5.5
2.7 3.8 6.96
3 4.7 8.6
3.3 5.69 10.4
3.6 6.76 12.3
3.9 7.94 14.5
4.2 9.21 16.8
4.5 10.57 19.3
4.8 12.03 22





Buying Guides

 check our main products of steel wire rope for more info.

Steel strand wire 1x7






Application recommendation for steel wire rope

Application products Construction
for aerospace controls wire rope 6x7, 6x19

for elevator lifting

 wire rope 6x19S, 8x19S,9x19s,8x25Fi,6x36SW
vertical well hoisting purposes linear contact lay wire rope 6x19S, 6x19W, 6x25Fi, 6x26WS, 6x31WS, 6x36WS, 6x41WS
multi-strand rope 18x7, 17x7
blanced wire to well flat ropes 6x4x7, 8x4x7, 8x4x9, 8x4x19
wire rope 6x37, 6x37S, 6x36WS
multi-strand rope 17x7, 18x7, 34x7, 36x7
for winch purposes wire rope 6x7, 6x9W
bearing to tank and cableway full-lock coil ropes see the standards of facial contacted wire rope
multi-strand rope 18x7, 17x7
wire rope 6x7
hoisting to slope linear contact lay wire rope 6x36WS, 6x37S, 6x41WS, 6x49SWS,6x55WS
for petroleum drilling purposes linear contact lay wire rope 6x19S, 6x19W, 6x25Fi, 6x29Fi, 6x26WS, 6x31WS, 6x36WS
rubber belt conveyer, cableway linear contact lay wire rope 6x19S, 6x19W, 6x25Fi, 6x29Fi, 6x26WS, 6x31WS, 6x36WS, 6x41WS
fishing industry wire rope 6x24, 6x24S, 6x24W, 6x19, 6x19S/W, 6x31WS, 6x36WS, 6x37, 6x37S
lashing wire rope 6x24, 6x24S, 6x24W
for crane purpose linear contact lay wire rope 6x19S+IWR, 6x19W+IWR, 6x25Fi+IWR, 6x36WS+IWR, 6x41WS+IWR
multi-strand rope 18x19, 18x19S, 18x19W, 34x7, 36x7
linear contact lay wire rope 6x19W/S, 6x25Fi, 6x29Fi, 6x26SW, 6x31WS, 6x36WS, 6x37S, 6x41WS, 6x49WS, 6x55WS, 8x19S/W, 8x25Fi
point contact wire rope 6x19, 6x37
for boat loading and unloading linear contact lay wire rope 6x24S/W, 6x19S/W, 6x25Fi, 6x29Fi, 6x31WS, 6x36WS, 6x37S
point contact wire rope 6x19, 6x37





Manufacture process

Steel strand wire 1x7

Steel strand wire 1x7



Packaging & Shipping

Packagement :wooden reel,ABS reel,coil in wooden case.Or can be made as your order!

Steel strand wire 1x7





Certifications

Steel strand wire 1x7

Steel strand wire 1x7



Company Information

Nantong Dingtian Metal Product Co, Ltd. is a medium-sized  business enterprise which specializes in manufacturing steel wire ropes for many years. Our company has implemented a quality management system with complete sets of inspection and testing equipments and experts for R&D. With strict system to guarantee the quality, our company has completely passed the ISO9001 quality system and we also gained “CE” quality certificate.



Steel strand wire 1x7







Welcome to click our website"" for more details about us.
