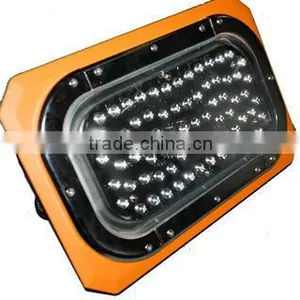

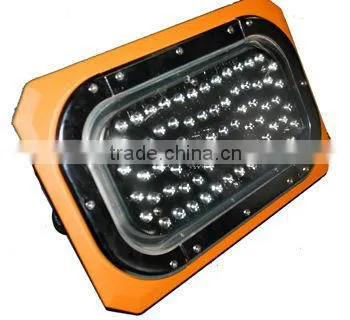

2013 Hot! 120W LED ex proof high bay light

Specifications

1.Osram LED, up to 143lm/w.
2.5KV Surge Protection power supply.
3.PF more than 0.95.
4.5 years warranty.
5.Stand 7J impact.

Features and benefits
1.Energy saving. Reduce the number of luminaires needed,
providing excellent luminaries efficacy and more light
2.Anti- glare, reduces glare in applications where the user may
have direct visual contact with the light source.
3.Shock and vibration resistant tempered glass, reduces the
risk of premature failure.
4.OSRAM LED source. High efficacy lumen output and high
CRI.
5.Driver module assembly High efficacy LED drivers
are designed to provide reliable operation in even the
harshest environments.
6.High strength aluminum alloy housing, can endure 20J
impact. IP66, can be used in wet locations, robust construction
suitable corrosive applications.
7.Adjusting plate, customer can adjust different angles.
8.80W,120W,160W,200W 240W available. Optional luminous
intensity distribution for different applications.
9.Ambient temperature from -40ºC to 55ºC.



Application:

1.Suitable for petroleum, petrochemical industry.

2.Used for area lighting in oil well sites, petrochemical units, warehouse.

3.Group II Zone 2, Zone 22.



Excecutive Standard:

IEC 60079-0:2007 Explosive atmospheres-Part 0: Equipment-General requirements.

IEC 60598-1:2008 Luminaires-Part 1:General requirements and tests.



Product Definition:



Electrical Parameter:



Photometric Parameter:





Other Parameter:



Candela Distribution:



Installation Method:



Size:

Optional Parts:
