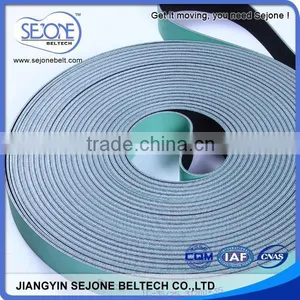

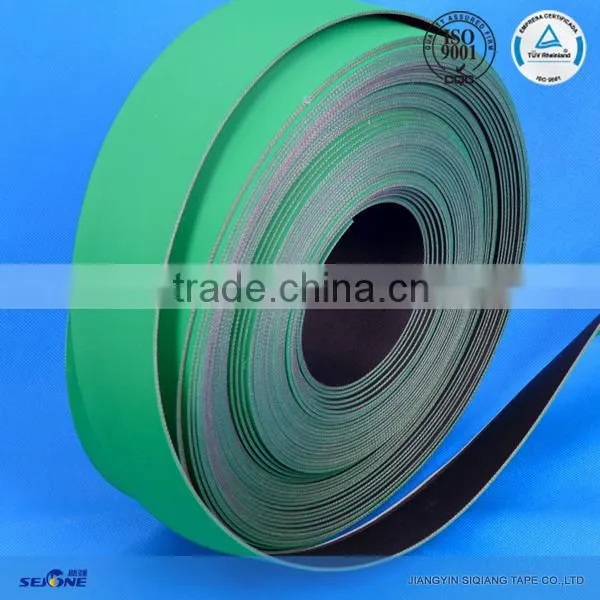

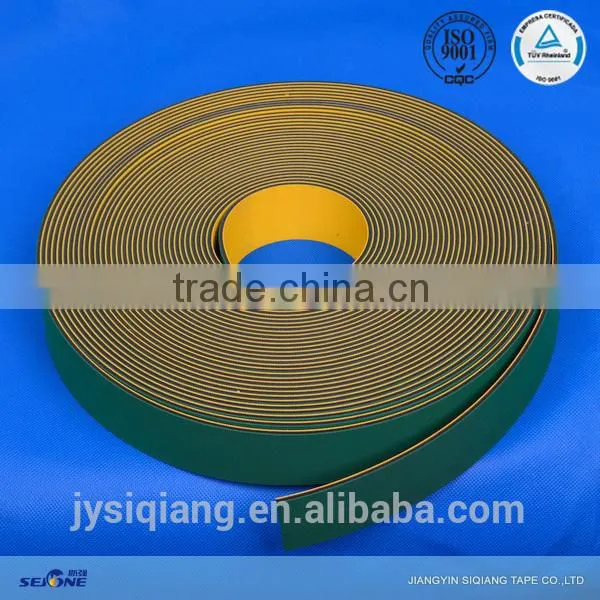

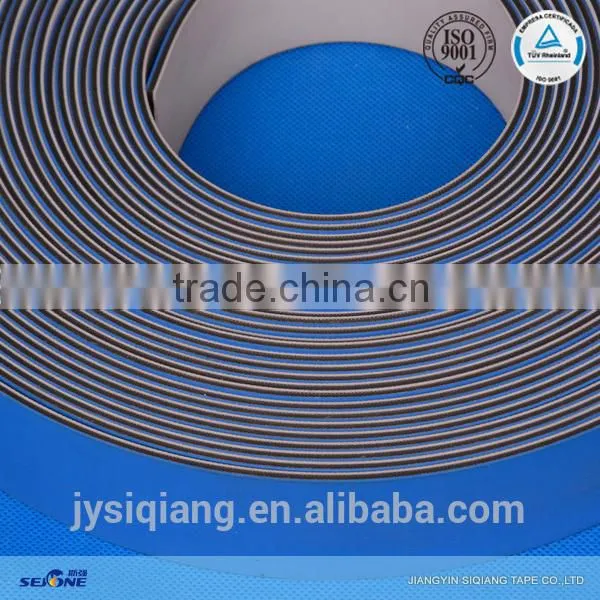

High Efficiency Flat Rubber industrial belt
- TECHNICAL DATA
| ITEM NO. | TC-35/25 | ANTISTATIC | YES |
| THICKNESS (MM) | 2.5 | TRACTION LAYER MATERIAL | PET |
| BELT WEIGHT (KG/M2) | 2.95 | FRICTION COVER MATERIAL | XNBR |
| MANUFACTURING WIDTH (MM) | 500 | REVERSE COVER MATERIAL |
XNBR |
| TENSILE FORCE FOR 1% ELONGATION PER UNIT OF WIDTH (N/MM) |
18 | REVERSE COVER COLOR |
LIGHT GREEN |
| MIN PULLEY DIAMETER (MM) | 50/50 | FRICTION COVER COLOR | BLACK |
| WORKING TEMPERATURE (OC) | -20~80 | JOINING METHOD | FLEXPROOF |
Power transmission field for industrial machinery of flat transmission belts, conveyor belts, etc.

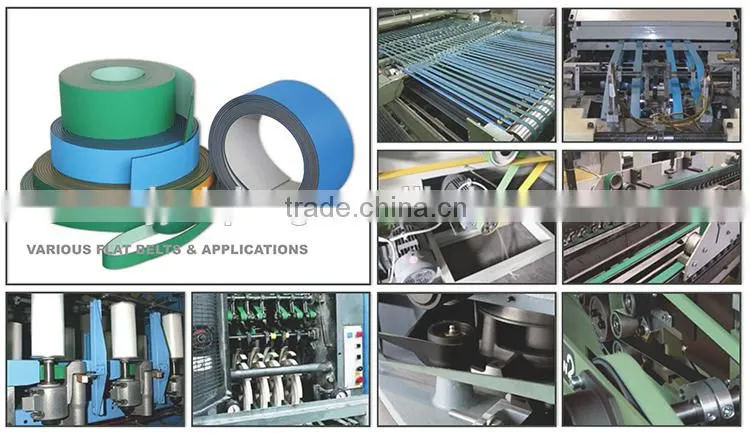

Major Applications:
Power transmission in industrial manchinery (fans, pumps, etc.)
Sawmill machines (chippers, etc.)
Paper working machines (coaters, etc.)
Other power transmissionsCut-proof conveyors (thin-plate conveyors, etc.)
- PACKING
- Put the paper tube inside.
- Transparent plastic film applied. To protect belts from damp environment.
- Bubble plastic film applied. To prevent belts from pressure and squeeze.
- The outer packing: Durable woven bag or customized wooden case.( Durable woven bag is free)
- SHIPPING
- FOB ShangHai.
- FCA anywhere of China.
- CIF anywhere.
- COMPANY INFORMATION
Since 2003
Specialized in power transmission field for industrial machinery of flat transmission belts, conveyor belts, etc.
Successive sales growth of 6 years
Export to more than 10 countries in Asia, North Africa, South America, etc.
Our mission is to delivey quality & repliable products and meet the needs of customers
Siqiang Beltech Industries is a privately owned Chinese company over 20 years expericences, and is today one of Chinese Major participants in the lightweight conveyor belting and power transmission belting industry. Siqiang Beltech offers technical support and innovative solutions to her customers.
Today, we could offer a wide variety of industrial belts, to meet the demands for Power Transmission in the line of textile, paper-making, furniture manufacturing and flour milling, etc. Else, conveyance for printing, box folding, and corrugated cardboard machines.
Siqiang Beltech is devoted to building up a professional team of ardor and efficiency, and step by step fulfills the perspective of product diversification and service individuation.
We believe your comments and enquiries would start an important beginning between us.
Each year, we participate in the exhibitions and fairs related textiles, packing, etc.
1Q: Manufacturer or Trading company?

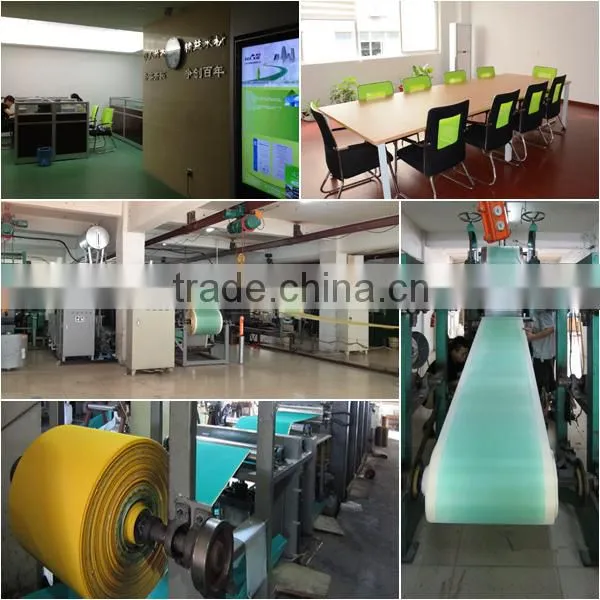

A: Manufacturer. Presently have 5 production lines, with own test center.
2Q: Location&Visit?
A: East China. 2 hour‘s drive away from Shanghai downtown; or 1 hour's bullet train. Call us, if need us pick up.
3Q: About R&D?
A: More than 0.1 million US dollars on R&D, with independent lab. Schedule of new products annually.
4Q: Material? Supplier?
A: Imported polyamide, polyester, NBR and XNBR, etc. Most suppliers authorized for 5 years more.
5Q: Customized, OEM?
A: Sure. Not only color, design, texture, but also labeling&marks.
6Q: Samples?
A: Sure. Normally 3 working days.
7Q: Quality Control?
A: Strict production flow and data to evaluate all steps; sheets track back each step.
- Skype account --- noya1983
- Wechat --- luomin1983
- Mobile&Whatsapp --- +86-15852620406
ITEM NO. |
THICK NESS (MM) |
TRAC TION LAYER |
REVERSE COVER COLOR |
REVERSE COVER MATERIAL |
FRICTION COVER COLOR |
FRICTION COVER MATERIAL |
JOINING METHOD |
ANTI STATIC |
TEMPERA TURE (OC) |
MAX WIDTH (MM) |
TC-15GK |
1.5 |
PET |
Green |
NBR |
Black |
NBR |
Flexproof |
YES |
-20~70 |
500 |
TC-20 |
2.0 |
PET |
Light green |
NBR |
Black |
NBR |
Flexproof |
YES |
-20~70 |
500 |
TC-20LG |
2.0 |
PET |
Light green |
NBR |
Dark green |
NBR |
Flexproof |
YES |
-20~70 |
500 |
TC-20/22DK |
2.2 |
PET |
Dark green |
NBR |
Black |
NBR |
Flexproof |
YES |
-20~70 |
500 |
TC-20/25 |
2.5 |
PET |
Light green |
NBR |
Black |
NBR |
Flexproof |
YES |
-20~70 |
500 |
TC-35/25 |
2.5 |
PET |
Light green |
NBR |
Black |
NBR |
Flexproof |
YES |
-20~70 |
500 |
TC-35/30 |
3.0 |
PET |
Light green |
NBR |
Black |
NBR |
Flexproof |
YES |
-20~70 |
500 |
TC-55/30 |
3.0 |
PET |
Light green |
NBR |
Black |
NBR |
Flexproof |
YES |
-20~70 |
500 |
