Hot style Automatic waterfilling solar water heater

Specifications

convenient ,economical , hi-tech-,envrionment protetion
certificate:CE CCC SGS ISO9001 RoHS





Water tank:

1.Inner tank :SUS 304-2B material,150L-200L 1.2mm

thickness, 300L-400L 1.5mm

2.Insulation: 50mm polyurethane foam.

3.Outer tank:0.5mm thickness galvanized steel material

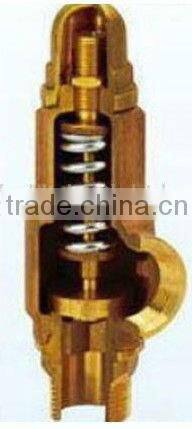

4.P/T relief valve, electrical heater element with terminator

5.Heat exchanger : 20m long,12mm diameter ,1mm thickness copper pipe



Work station:

1.Expansion tank:5L volume,-10°C-99°C operation temperature,  1Mpa maximum operation pressure (Italy)

2.Circulation pump :WILO RS15/6,three phases, 220v/50Hz (German)

3.Probe : Presssure &Temperature Probe &Check valve

4.Temperaure sensor: Three temperature sensor&flowmeter(Switzerland)

5.Digital display: Temperature adjustor &Timing water supply



Feature:

1.Pipeline is made of all red copper and conducted by heat transfer medium liquid.

2.Water does not flow in the vacuum tubes and is operated when confined.

3.The crust uses aluminum alloy mould material of high strength with airflow design.

4.It is finished in good style.

5.Tank is equipped with electric water heater setting ,automatic temperature controller.

6.With increased anode magnesium bar stick to prevent furring.

7.The insulating layer uses polyurethane bulk bubble.

8.It successfully carries out installation of separation according to fabricating yard.

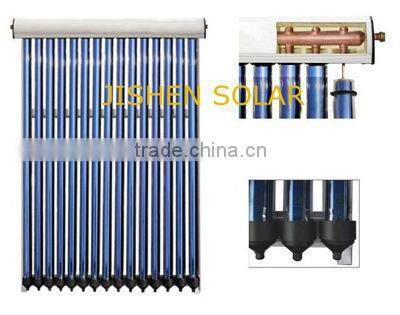

Vacuum tube solar collector:



1. Aluminum alloy shell
2. Heat pipe vacuum tube
3. Nylon vacuum tube holder
4. Silicon aluminum& polyurethane foam insulation
5. Galvanized steel bracket
6. Copper heat-pipe

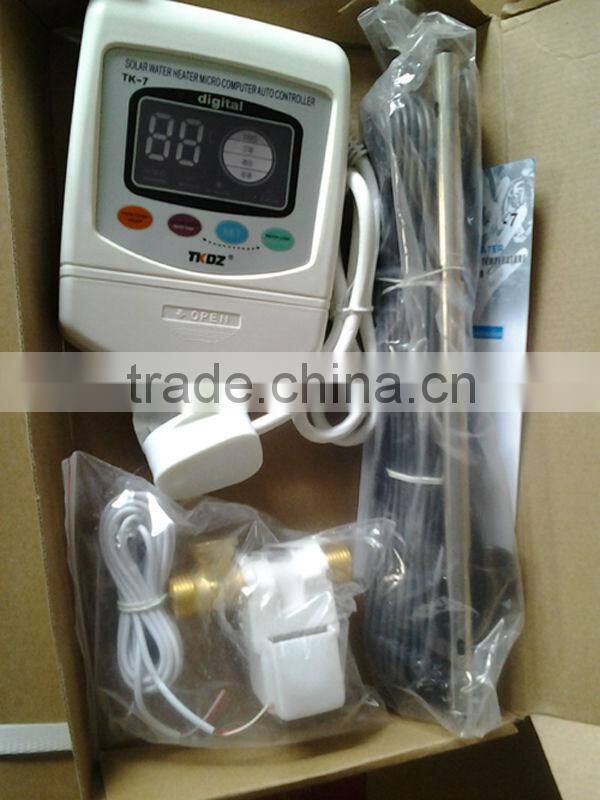

Control system

Working principle:

The temperature sensor and water level sensor put into the water tank, and the electromagnetism valve fix in the water pipe line. The sensor and electromagnetism connect to the digital adjustor. So it can display the temperature and water level, of course you preset temperature value and water level value, once their value is below the preset value, the digital will start the electromagnetism vale in the pipe line then supply water for water tank, at the same time it will start electrical heater or gas heater booster. Some times, the electrical heater or gas heater is not necessary to connect to digital adjustor directly, if they have their own thermostats.

So if you use the microcomputer control system, you needn’t an assistant tank to control the water level. The voltage of the controller can be choosing range form 100V-230V; the common voltage is 110V and 220 V in most countries.
