Specifications

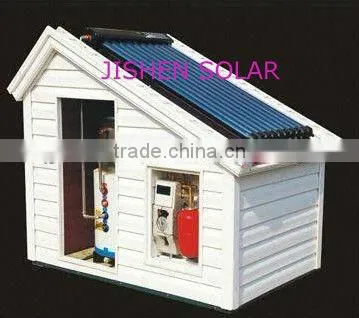

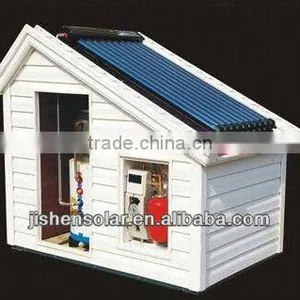

The heat collector and water tank are separated, and the system works under pressureSplit pressurized solar water heater
The split solar water heating system is such a system that separates the heat collector from the water tank, and transfers the solar energy collected by the heat collector to the water tank through the natural or forced cycle of medium to make water hot.
Characteristics
1.The heat collector and water tank are separated, and the system works under pressure.
2.Intelligent controller to assure the system runs automatically.
3.The storage water tank could be placed in any place of the room.
4.The solar collector could placed anywhere such as the balcony, southern wall, sliding roof, etc.
5.The water tank is placed indoors and it is in favor of reducing the heat loss of water tank.
6. You can have hot water 24 hours per day.

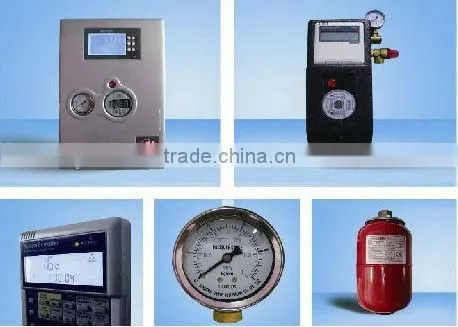

Components:
1. Heat pipe solar collector (solar thermal collector)
2. Pressurized storage tank, Water tank capacity: 100 L;150L; 200L; 250L; 300L; 350L; 400L; 450L; 500L
3. Working station
Heat Pipe Brief Indtroduction
Evacuated tube with copper pipe, and there is anti-freeze liquid inside as medium transfering heat.
1. Diameter and length: 58mm / 1800mm
2. Glass material: Borosilicate glass 3.3
3. Tube thickness: 1.6mm or 2.0mm
4. Resistant hail: 25mm or 38mm
5. Life span: 15 years to 20 years
Heat pipe solar collector brief information
1.vacuum tube size: 58*1800
2. stand frame:quality galvanized steel
3.insulation layer:polyurethane foam
4.quantity of heat pipe tubes in a collector: from 10 pieces to 30 pieces
ing pressure:0.6Mpa
6.life span: 15 to 20 years
Pressurized storage tank brief introduction
1.inner tank:1.5mm SUS304-2B stainless steel
2.outer tank:0.5mm color steel
pper coil heat exchanger: red copper diameter 12mm
4.insulation layer:polyurethane foam
5.rated pressure:0.7Mpa
6.accessories: T/P valve, Mg anode, electric backup
