Solar Flat Panel Collector
US$ 120 - 220
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JISHEN
Model Number:
JSFP-011
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
JISHEN
Model Number
JSFP-011
Type
Other, Flat Panel, Pressurized
Application
Solar Thermal
Pipe Material
Other, Copper, Copper
Specifications
Solar flat panel collector1.For 15years warranty!
2.CE,CCC,ROHS,SGS,ISO9001,SK, approved!
3.OEM is welcomed!
4.Sample offer

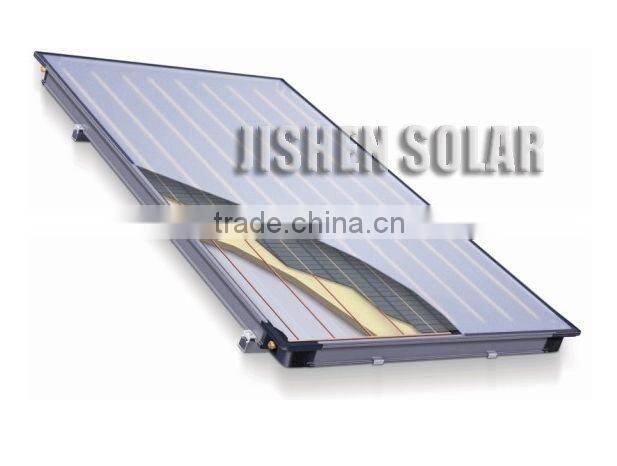

Solar flat panel collector:
Specification:
| Size(LxWxH mm) | 2000x1000x70/80/90(mm) | ||||||
| Total area of collector | 2 M2 | ||||||
| Daylighting area | 1.85 M2 | ||||||
| Absorbing area | 1.85 M2 | ||||||
| Material of cover glass/ thickness(mm) | float glass/toughened glass/low-iron ultra white tempered patterned glass/4.0mm | ||||||
| Absorbancy | ≥92% | ||||||
| Pipe port material /size | complete copper / Φ25x950mm | ||||||
| Pipe material/size | complete copper / Φ10x1950mm | ||||||
| Number of riser pipe | 7 / 8 / 9bars | ||||||
| Absorber fin/thickness(mm) | copper/aluminum(0.15-0.5mm) | ||||||
| Operation pressure | 1.0 Mpa | ||||||
| Test pressure | 1.6 Mpa | ||||||
| Insulation materials /thickness | high-density fiberglass board/3050mm | ||||||
| Back sheet | 0.3mm galvanized steel plate or 0.5mm embossed alumimum plate | ||||||
| Material of frame / thickness | Anodized aluminium alloy(silver and black color) / 70/80/90mm | ||||||
| Material of bracket | stainless steel/galvanized steel/aluminium alloy | ||||||
| Working temperature | -34≤T≤200 | ||||||
Bracket material:galvanized steel,1.5mm thickness.
The glistening obliquity:0-90 degree
Hail resistance:25mm.
Wind stress:180km/h
