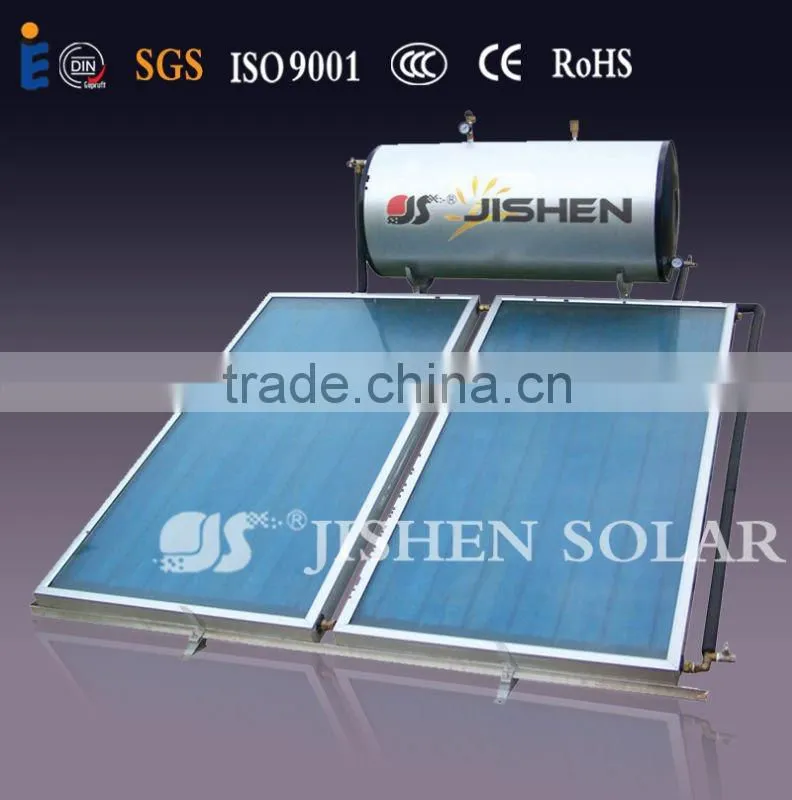

Fashionable Outlook Solar Flat Panel Collector(JSFP-L02)
US$ 200 - 700
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Flat-Plate
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Blazonry Flat Plate Pressurized Solar Water HeaterUS$ 80 - 360MOQ: 1 Set -
Compact Flat Panel Solar Water HeaterUS$ 500 - 1,500MOQ: 1 Set
-
Pressurized Flat Panel Solar Water HeaterUS$ 500 - 1,500MOQ: 1 Set
-
Pressurized Flat Panel Solar Water HeaterUS$ 500 - 1,500MOQ: 1 Set
-
Pressurized Flat Panel Solar Water HeaterUS$ 500 - 1,500MOQ: 1 Set
Type
Flat-Plate
Pressure
Pressurized
Circulation Type
Indirect / Closed Loop (Active)
Heating System
Thermosyphon (Passive)
Connection Type
Split
Installation
Freestanding
Certification
CE, Other, CE, RoHS, CCC,ISO9001
Capacity
500
Place of Origin
Zhejiang, China
Brand Name
Jishen
Model Number
JSFP-L02
Specifications
solar panel collector,solar flat plate,flat panels solar collectors,pressurized solar flat panel,flat panel solar water heater| Size(LxWxH mm) | 2000x1000x70/80/90(mm) |
| Total area of collector | 2 M² |
| Daylighting area | 1.85M² |
| Absorbing area | 1.85M² |
| Material of cover glass/ thickness(mm) | float glass/toughened glass/low-iron ultra white tempered patterned glass/4.0mm |
| Absorbancy | ≥92% |
| Pipe port material /size | complete copper / Φ25x950mm |
| Pipe material/size | complete copper / Φ10x1950mm |
| Number of riser pipe | 7 / 8 / 9bars |
| Absorber fin/thickness(mm) | copper/aluminum(0.15-0.5mm) |
| Operation pressure | 1.0Mpa |
| Test pressure | 1.6 Mpa |
| Insulation materials /thickness | high-density fiberglass board/3050mm |
| Back sheet | 0.3mm galvanized steel plate or 0.5mm embossed alumimum plate |
| Material of frame / thickness | Anodized aluminium alloy(silver and black color) / 70/80/90mm |
| Material of bracket | stainless steel/galvanized steel/aluminium alloy |
| Working temperature | -34≤T≤200 |
Inner tank material:SUS304-2B stainless steel 1.5mm thickness,food grade,innocuity.
Outer tank material:galvanized steel 0.33-0.55mm thickness,antirust.
Insulation layer between inner and outer tank:High density polyurethane foaming,50-65mm thickness.
Water tank capacity:300L
Bracket material:galvanized steel,1.5mm thickness.
The glistening obliquity:45 degree
Hail resistance:25mm.
Wind stress:180km/h
Heat preservation:72-96HOURS
