Horizontal Milling Machine

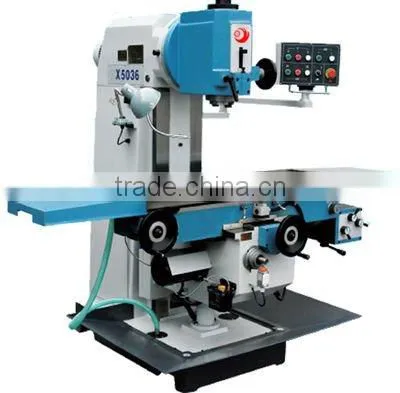

X5036B vertical milling machine is a kind of common metal cutting tools. This tool spindle cone can be directly or through the attachment of cylindrical milling, installation, end milling cutters, Angle cutter knives, applicable to such processing various parts of the plane, cant, groove, holes etc, machinery manufacturing, mould, instrument and meter, automobile, motorcycle industries ideal processing equipment.
This machine has the following features:
1 spindle sleeve can manually feed, and micro peneumatied device, milling, turning anti-clockwise head can adjust 45 °,
2 workbench but vertical and horizontal manually feed and vertical, and vertical and horizontal and can realize motor and motor feeding and vertical motor,
3 1200mm lengthen the slider, by extension, the workbench 1500mm worktable longitudinal have long, stability, travel 1000mm more strong,
4 main transmission and to adopt gear, 12 different speed, speed range.
5 spindle bearing, tapered roller bearings by loading capacity, and adopts braking energy, braking torque, stop quickly, brake reliably,
6 this moment with rail-style slideway is good stability,
7. The worktable and guide audio quenching, more strength.
Specification |
X5036A |
X5036B |
X5036C |
Spindle taper |
7:24 ISO50 |
7:24 ISO50 |
7:24 ISO50 |
Spindle nose to table(mm) |
80-44 |
70-450 |
70-450 |
Spindle center to column guide-way face(mm) |
320 |
360 |
360 |
Range of spindle speed(r/min) |
60-1700(12 steps) |
60-1690(12 steps) |
60-1690(12 steps) |
Swivel angle of vertical milling head |
±45° |
±45° |
±45° |
Table size(mm) |
1250×360 |
1500×360 |
1600×360 |
Table travel(horizontal/cross/vertical) mm |
600/320/360 |
1000/320/380 |
1300/320/380 |
Range of longitudinal,cross travel(mm/min) |
22-555(8steps)(Max.810) |
15-370(8steps)(Max.540) |
15-370(8steps)(Max.540) |
Range of vertical travel(mm/min) |
590 |
590 |
590 |
T-slot NO./width/distance of rotary table(mm) |
3/18/80 |
3/18/80 |
3/18/80 |
Main motor(kw) |
4 |
4 |
5.5 |
Motor for rapid device of table (kw) |
0.75 |
0.75 |
0.75 |
Motor for vertical device of table(kw) |
1.1 |
1.1 |
1.1 |
Motor of cooling pumps(w) |
90 |
90 |
90 |
Speed of cooling pumps(L/min) |
25 |
25 |
25 |
N.W/G.W.(kg) |
2200/2400 |
2230/2400 |
3000/3200 |
Overall dimension(mm) |
1700×1680×1880 |
2220×1790×1980 |
2520×1890×2080 |
