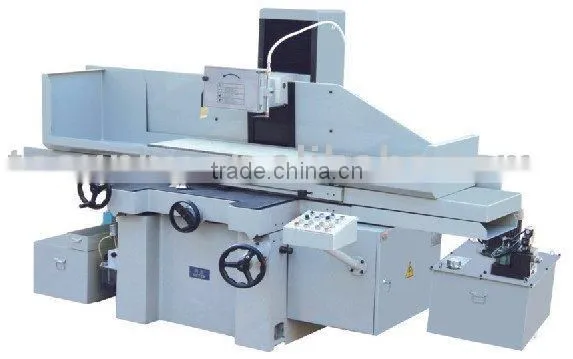

Surface Grinding Machine

Name: Surface Grinding Machine
Brand: TOSUNNY
SKU: 107290135

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

Taizhou Taisen Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Place of Origin Zhejiang, China

Brand Name TOSUNNY

Model Number GTS-4510AH

surface grinder

standards			unit	GTS-4510AH
capacity	available area of working table		mm	1000*450
	maximum moving dimension from left to right		mm	1150
	maximum moving dimension from front to back		mm	480
	maximum distance from surface of working table to spindle		mm	620
	maximum bearing weightof working table		Kgs	700
working table	T slot in working table		mmxN	14-3
	speed of working table		m/min	5-25
	Working table path		m/min	-V
	fornt & rea handwheel feed	a check	mm	0.02
		a circle	mm	4
	auto-supplying from front to back		mm	0.1-10
	high speed moving from front to back	50HZ	mm	990
		60HZ	mm	1190
grinding wheel	measurement of grinding wheel		mm	355(20-50)127
	rotational speed of spindle	50HZ	R.p.m	1450
		60HZ	R.p.m	1750
up and down structure	maximum moving dimension		mm	500
	up& down handwheel feed	a check	mm	0.001
		a turing round	mm	0.2
	auto-supplying volumn		mm	0.001-0.04
motor	spindle motor		HXP	7.5*4
	oil pressure motor		HXP	3*4
	dust catching motor		HXP	3/42(1/22)
	warter motor		HXP	1/8*2
	up and down driving motor		HXP	80W
	back and front driving motor		HXP	40W
dimension	machine height		mm	2010
	covering area		mm	2350*4000
	net weight		kgs	3500
	gross weight		kgs	4600
