Precision Surface Grinding Machine
- 50 Set / Sets per Month
- NINGBO
- T/T
- Second-hand sweeper second-hand mobile phone curved glass sweeper tablet computer curved glass sweeper
- Automatic Ultrafine Powder Grinder with Ceramic Mortar
- Automatic Powder Grinder with Ceramic Mortar
- Pneumatically-lifted Laboratory Grinder (Special grinding equipment for scientific research in Colleges and Universities)
- Pneumatically-lifted Grinder with Double Pestle and Ceramic Mortar (manual discharging)
- Pneumatically-lifted Grinder with Ceramic Mortar (Large grinder for chemical material and new material)
Product Details
Condition: | New | Type: | Surface Grinding Machine | CNC or Not: | Normal |
Max. Grinding Diameter: | 500mm | Max. Grinding Length: | 3000mm | Place of Origin: | Zhejiang, China |
Brand Name: | TOSUNNY | Model Number: | GTS-5010 | Voltage: | 380V |
Power(W): | 5.5KW | Dimension(L*W*H): | 1500MM*1500MM*1300MM | Weight: | 3550KG |
Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

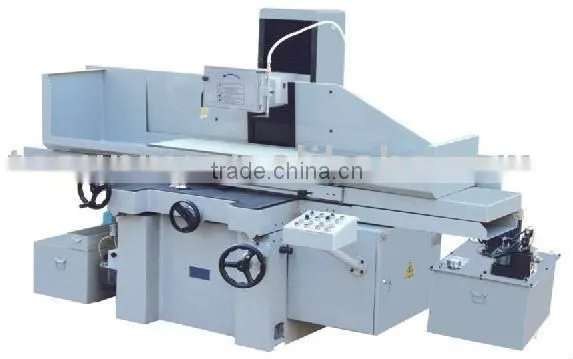

Precision Surface Grinding Machine
|
|
| GTS-5010AHR | GTS-5010AHD | GTS-5010MSI | |||
| available area of working table | mm | 1000*500 | 1000*500 | 1000*500 | |||
maximum moving dimension from left to right | mm | 1150 | 1150 | 1150 | ||||
maximum moving dimension from front to back | Without wallboard | mm | 500 | 500 | 500 | |||
With wallboard | mm | 480 | 480 | 480 | ||||
maximum distance from surface of working table to spindle | mm | 600 | 600 | 600 | ||||
maximum bearing weightof working table | Kgs | 750 | 750 | 750 | ||||
working table | slot in working table | mmxN | 14*3 | 14*3 | 14*3 | |||
peed of working table | m/min | 5-25 | 5-25 | 5-25 | ||||
Workbench orbit | m/min | -V-flat | -V-flat | -V-flat | ||||
fornt & rea handwheel feed | a check/mm | 0.02 | 0.02 | 0.02 | ||||
a circle/mm | 4 | 4 | 4 | |||||
auto-supplying from front to back | mm | 0.1-10 | 0.1-10 | 0.1-10 | ||||
high speed moving from front to back | 50HZ | mm | 990 | 990 | 990 | |||
60HZ | mm | 1190 | 1190 | 1190 | ||||
grinding wheel | measurement of grinding wheel | mm | 355*(20-50)*127 | 355*(20-50)*127 | 355*(20-50)*127 | |||
rotational speed of spindle | 50HZ | R.p.m | 1450 | 1450 | 1450 | |||
60HZ | R.p.m | 1750 | 1750 | 1750 | ||||
up and down structure | maximum moving dimension | mm | 500 | 500 | 500 | |||
up& down handwheel feed | a check | mm | 0.002 | 0.002 | 0.002 | |||
a turing round | mm | 0.2 | 0.2 | 0.2 | ||||
auto-supplying volumn | mm | / | 0.001*0.04 | 0.001*0.04 | ||||
high-speed moving dimension from up to down | m/min | 230 | 230 | 230 | ||||
motor | spindle motor | HXP | 10*4 | 10*4 | 10*4 | |||
oil pressure motor | HXP | 3*6 | 3*6 | 3*6 | ||||
dust catching motor | HXP | 1/2*2 | 1/2*2 | 1/2*2 | ||||
water motor | HXP | 1/8*2 | 1/8*2 | 1/8*2 | ||||
up and down driving motor | w | 80 | 400 | 400 | ||||
back and front driving motor | w | 40 | 40 | 40 | ||||
dimension | machine height | mm | 2010 | 2010 | 2010 | |||
covering area | mm | 2400*4000 | 2400*4000 | 2400*4000 | ||||
net weight | kgs | 3550 | 3550 | 3550 | ||||
gross weight | kgs | 4650 | 4650 | 4650 |
Properties:
1, AHR type: front and back (X axis) automatic, left and right (Y axis) automatic ,up and down (Z axis) quickly move .
2, AHD type: front and back (X axis) automatic, left and right (Y axis) automatic ,up and down (Z axis) automatic .
3, MSI type: front and back (X axis) automatic, left and right (Y axis) automatic ,up and down (Z axis) automatic .
servo motor control by PLC program with touch screen .
