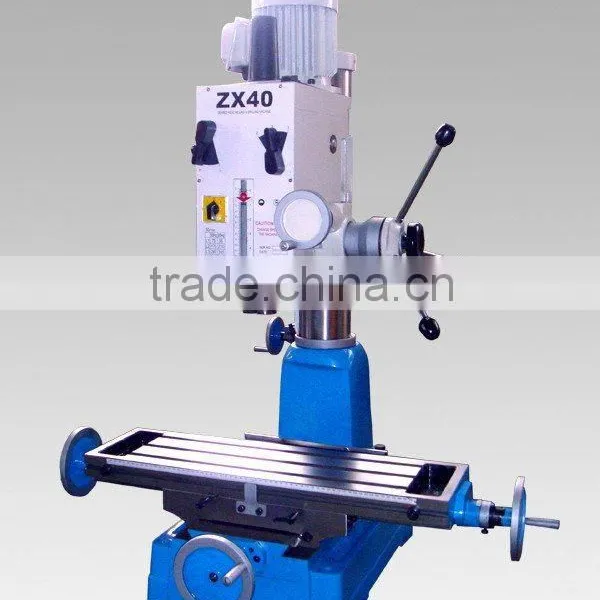

Drilling and Milling Machine

Drilling and Milling Machine thumbnail-1
Drilling and Milling Machine photo-1
US$ 3,800 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
TOSUNNY
Contact Supplier Request Quote Chat Now
Taizhou Taisen Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name TOSUNNY
Model Number ZX40
Type Other, Vertical, Drilling and Milling Machine
CNC or Not Normal
Voltage 380V
Power(W) 1.1kw
Dimension(L*W*H) 820*760*1150mm
Weight 300kg
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas









Drilling and Milling Machine





Item
 Parameter
 Max. Drilling dia (Steel/Iron)
  31.5/40mm
 Max.mill capacity(face/end)
  80/32mm
 Spindle taper
  MT3/MT4/R8/ISO30
 Worktable size
  730×210mm
 Worktable travelX/Y
  500/230mm
 Head tilt left right
  90°
 Spindle box swivel degree
  360°
 Spindle travel
  130mm
 Spindle nose to worktable
  470mm
 Spindle speeds(option)
   6steps:60Hz 90~1970rmp 50Hz 75~1600rmp
 Motor
  1.1kw
 N.W/G.W
  270/300KG
 Packing size(L×W×H,enclude foot)
  820×760×1150mm
 20'Container
  30 sets


Standard Accessories Optional
Draw bar,Adapter,Taper shank for drilling chuck ,Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun
 Foot stand+oil pan,Cooling system,Working light,Spindle power down feeder,2 step motor,Worktable power feed system,DRO ,depth indicator,spring collet,vices,milling collet ,milling clamp
