Specifications
carton machinerya) Vegetables
b) Meat/Bean product
c) Potherb, Condiments
d) Marine/aquatic product Vacuum packin
a) Vegetables
b) Meat/Bean product
c) Potherb
d) Condiments
e) Marine/aquatic product Vacuum packing machine
| Model | Working height | distance between the sealing bars | working efficiency | vacuum pump | voltage | Voltage | Machine weight | |

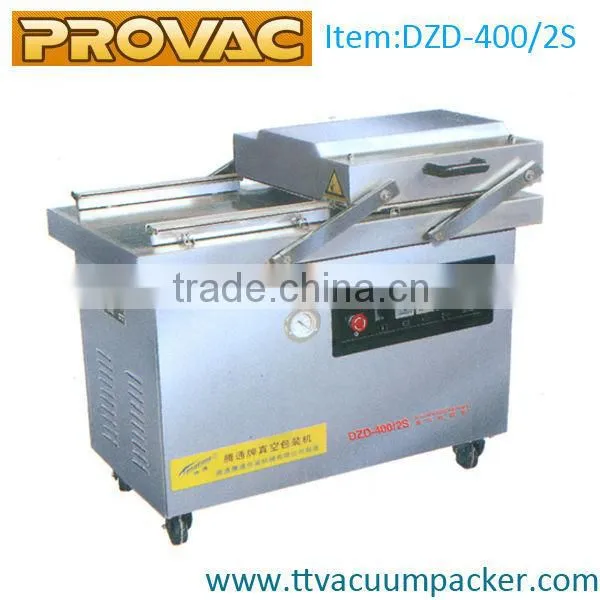

| DZD-400/2S | 100mm | 380mm | 2-4times/min | BUSCH XD-020 |
AC/380V AC/220V |
1.2kw | 120kg |
Description:
1) Vacuum chamber: 1090 x 210x 95mm (L x W x H)
2) Vacuum pump: BUSCH 250(302) vacuum pump
3) Ultimate vacuum: 50Pa
4) Material: stainless steel construction with shot blasting
5) Control system: Mitsubishi FX1S-20MR-001 PLC & F930GOT touch screen,Schneidercontactor, coal stepping driver, sensor switch
6) Vacuum system: the machine could multilevel vacuum operation for the packing requirements, especially for the products with some water
7) The sensor system could monitor the operation and fault alarm
8) The adjustable working platform: the working platform adjustable scope from 0 to 30 with 5 angle option and easy for cleaning
9) The vacuum chamber cover material: aluminum foil
10) Total power: 5.8kW (160 pump), 7.3kW (250 pump)
11) Power supply system: AC 380V 50Hz, 3 phase
12) We could make machine as customer special design requirement
Welcome your inquiry for more detailed and correct information.
