Product Description
$titles$

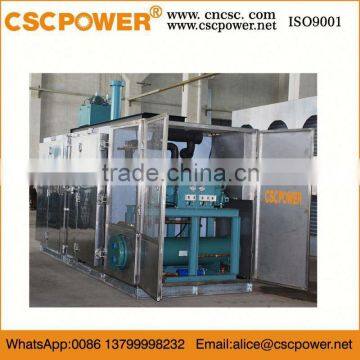

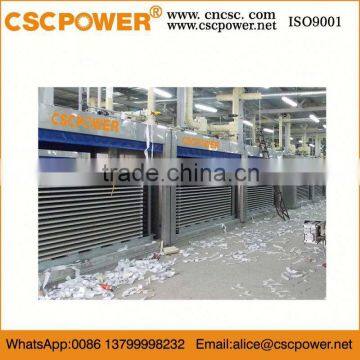

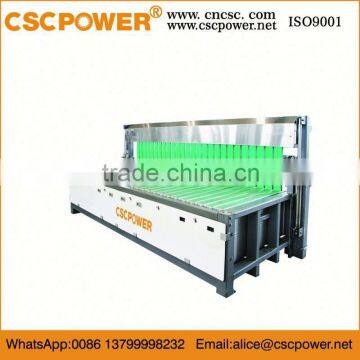

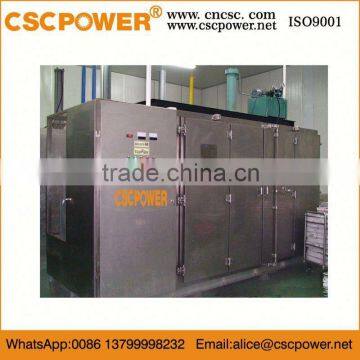

Aluminum alloy contact freezer is composed of Plate evaporator, Electrol Cabinet, Hydraulic Pressure device etc. The Aluminum alloy evaporator is driven by hoist cylinder to contact with frozen foods directly and keep certain pressure. The closed touch, with frozen food forms advantages of high frozen speed, high efficiency energy-saving, sanitation and c ompact. The unit is running under normal temperature to ensure long-ter m life. Adopt contact-type heat conducting, no air flow, which is benefit to decrease foods weight loss.
The Aluminum alloy is complete stainless steel machine housing,attractive appearance,easy cleaning an operation.Electromechanical integral design,less investment is aso very conveienct on installation and operation.
| Basic Data of the Machine | |
| In-take Temp: | +15°C |
| Out-take Temp: | -18°C |
| Ambient Temp: | ≤50°C |
| Condensing temp: | +35°C |
| Evap. Temp: | -35°C |
| Refrigerant: | R22, R404A, R717 or similar. |
| Freezing Time: | Fish: 2-4h/shift, (tray size: 600*400*80mm, 15kg/tray) Shrimp: 2-3h/shift, (tray size: 300*200*70mm, 2kg/tray) Codfish: 2.5h/shift, (tray size: 520*310*60mm, 7.5kg/tray) |
Required Information for Choosing the Contact Freezer
1. Frozen product name
2.Frozen product size (L×W×H mm)
3.Frozen product unit weight (“g/pc”, or “g/box” mentioning box material)
4.Freezing capacity (ton/h)
5.Product inlet temperature and outlet temperature(°C)
6.Installation room space (L×W×H mm)
7.Required freezer type(fully contact/semi-contact/marine plate freezer)
SCOPE OF APPLICATION
The unit is widely applied in cold storage, aquatic foods, meat processing foods quick freezing industry, fish catching boat and fishery processing industry etc.
| Model | Evaporation Plate | Frozen Fish | Frozen Prawn | Frozen Codfish | Dimensions (L*W*H) (mm) | Weight (Kg) | ||||||
| Effective Layer | Spacing of Each Layer (mm) | Effective Dimension (mm) | Evaporating Area (m2) | Frrozen Capacity (Kg/Time) | Consumption(Kw) | Frrozen Capacity (Kg/Time) | Consumption(Kw) | Frrozen Capacity (Kg/Time) | Consumption(Kw) | |||
| PZ(Y)-720-B1 | 8 | 58~108 | 1290*1260 | 30 | 720 | 23 | 384 | 15 | 480 | 22 | 2540*1750*2350 | 2300 |
| PZ(Y)-720-B2 | 2710*1750*1685 | 2400 | ||||||||||
| PZ(Y)-960-B1 | 8 | 58~108 | 1680*1260 | 40 | 960 | 31 | 512 | 20 | 720 | 33 | 2960*1750*2350 | 2700 |
| PZ(Y)-960-B2 | 3130*1750*1685 | 2800 | ||||||||||
| PZ(Y)-1200-B1 | 10 | 58~108 | 1680*1260 | 49 | 1200 | 39 | 640 | 24 | 900 | 41 | 2960*1750*2710 | 3000 |
| PZ(Y)-1200-B2 | 3130*1750*1945 | 3100 | ||||||||||
| PZ(Y)-1500-B1 | 10 | 58~108 | 2080*1260 | 60 | 1500 | 48 | 800 | 30 | 1200 | 54 | 3370*1750*2790 | 3600 |
| PZ(Y)-1500-B2 | 3540*1750*1945 | 3700 | ||||||||||
| PZ(Y)-1950-B1 | 13 | 58~108 | 2080*1260 | 76 | 1950 | 63 | 1040 | 39 | 1560 | 70 | 3370*1750*3305 | 4200 |
| PZ(Y)-1950-B2 | 3540*1750*2339 | 4200 | ||||||||||
| PZ(Y)-1980-B2 | 11 | 58~108 | 2530*1260 | 78 | 1980 | 64 | 1056 | 40 | — | — | 3780*1750*2950 | 4250 |
| PZ(Y)-2520-B2 | 13 | 58~108 | 2530*1260 | 91 | 2520 | 81 | 1344 | 51 | — | — | 3780*1750*3305 | 4900 |
| The Products with special type can be designed and manufactured according to the requirement of the customer.The specifications are the frozen goods consumption without water.The pictures are for reference only,the styles can be made to order! | ||||||||||||
Basic Information
FUJIAN CENTURY SEA GROUP CO.,LTD. (CSC GROUP) located in FUZHOU city of FUJIAN province , was founded in 2005, group with total investment of more than 80 million yuan.
CSCPOWER ICE MACHINE CO.,LTD r&d and production of ice machine includes flake ice machine series, tube ice machine series, cube ice machine series, block ice machine series, plate ice machine series and cold room, packing ice machine, ice crusher, cooling system.etc, complete set of refrigeration equipment, formed from pre-sales support, design, production, complete sets of installation and debugging, customer training, etc of a complete set of engineering and technical services.Products are mainly used in fresh supermarket, hospital, dock, chemical industry, concrete mixing, deep-sea fishing, aquatic products processing,Large-scale plant cooled industrial and commercial applications.
Credit Certificate
CSCPOWER credit has been checked by ALIBABA financial.
CSCPOWER has passed a financail assessment(including a credit check)
conducted by ALIBABA financial, including People's Bank of China credit archives,
business data, Alibaba network behavioral data, corporate and personal balance sheet, court enforcement records.
you can 100% trust us and place the order to us.
you will be satisfied with our quality and service.
Canton fair and Overseas exhibition
Certificate and Partner
1. We are China Leading Ice plant Manufacturer.
2.Alibaba Assessed 5 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price.
If you are interest in other ice machine,please check following picture for link.
...
