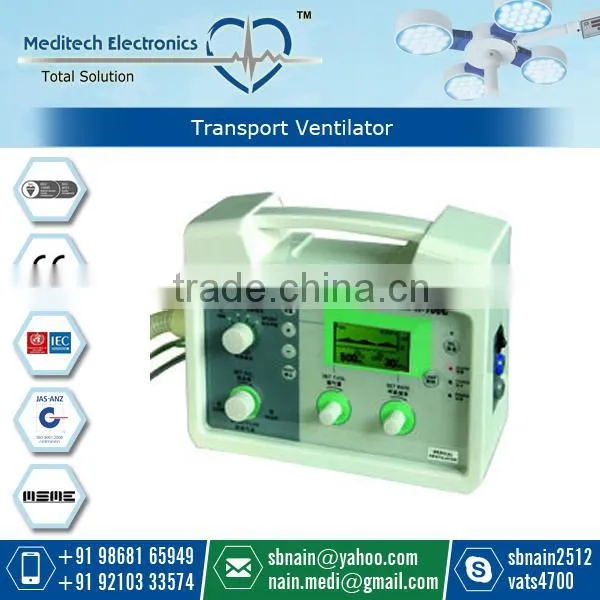

Light Weight Weight Compact Size Transport Ventilator for Medical Use

We offer transport ventilator of the model JiXi-H-100C, which is unique ventilator designed for intensive care, anesthesia and patient transportation, for infants through adults. It is an advanced electronic ventilator capable of treating the neonate as well as the adult patient.

Features:

• Dimensions W 50 X D 23 X H 23 cm (basic dimensions)
• Weight Approximately 19 Kg (42 lb)
• Insp. flow Constant or accelerating.
• Pattern decelerating in Pressure
• Controlled Ventilation
• Compressible 0.075 I (internal)
• Working pressure Up to 120 cm H2O
• Preset inspiratory 0.5-40 l/in. With sufficient working minute volume pressure
• Respiratory rate 5-120 breaths/min
• Inspiratory time 20, 25, 33, 50, 67 or 80 % of the respiratory cycle
• Pause time 0, 5, 10, 20 or 30 % of the respiratory cycle
• PEEP 0-50 cm H2O
• Upper Pressure 15-120 cm H2O limit
• Trig Sensitivity 20-0 cm H2O (below PEEP)
• SIMV-rate HIGH RATE (4-40 SIMV breaths/min)
• Low rate (0.4 -40SIMV breaths/min)
• Sigh Doubled tidal volume possible every 100 breaths

Special functions :

• Inspiratory pause hold
• Expiratory pause hold
• Gas Change

Monitoring :

• Airway pressure Range - 20-120 cm H2O
• Expired minute ADULTS range 0-40 l/min
• Infants range 0-40 l/min

Digital presentation :

• Respiratory rate Range 5-120 breaths/min
• O2 concentration in % by volume: Range 20-100%
• Inspired tidal volume Range 0-1999 ml
• Expired tidal volume Range 0-1999 ml
• Expired minute adults range 0-40 l/min
• Volume infants range 0-40 l/min
• Peak pressure range 0-120 cm H2O
• Pause pressure range 0-120 cm H2O
• Mean airway pressure range 0-120 cm H2O
