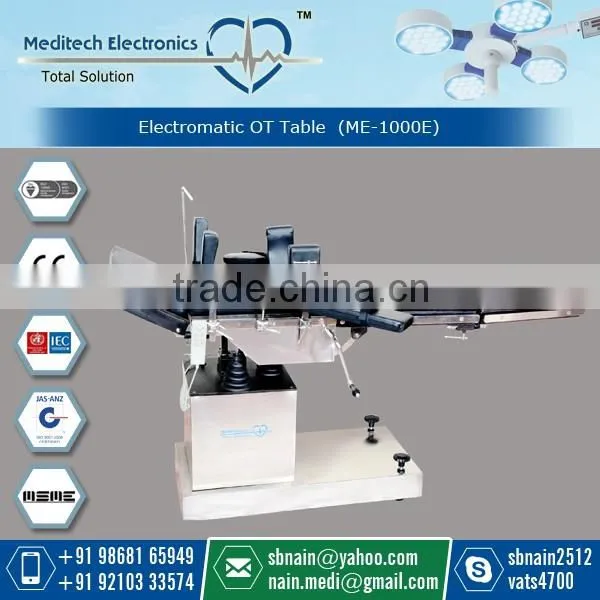

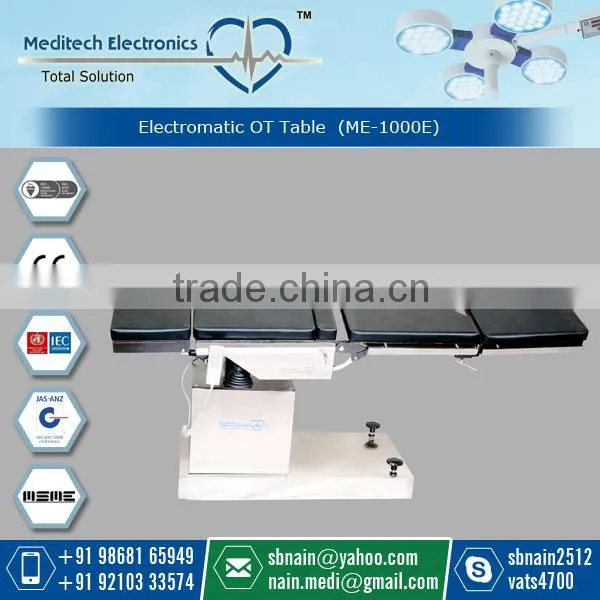

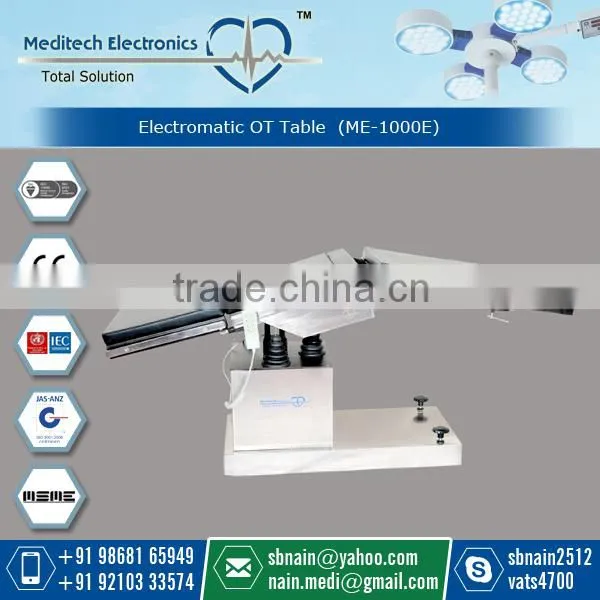

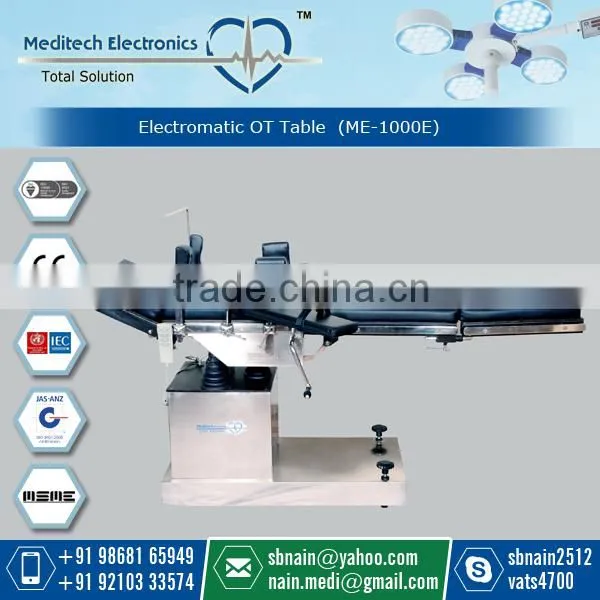

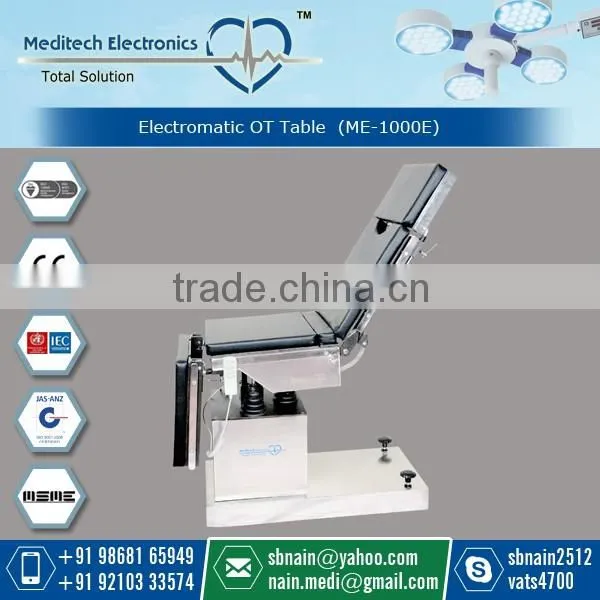

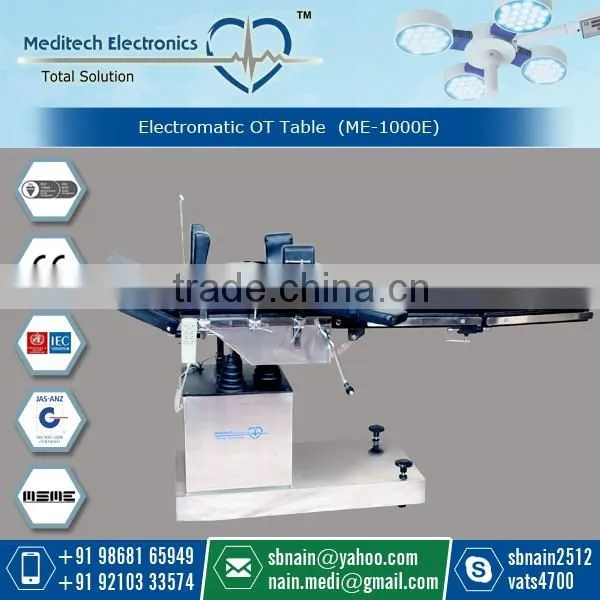

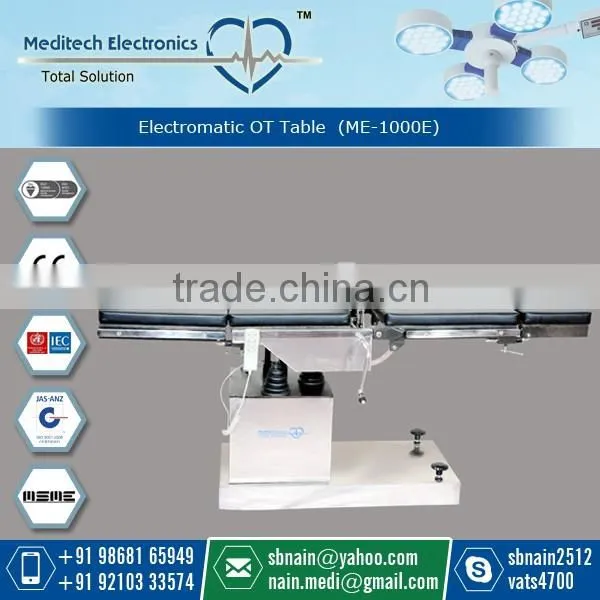

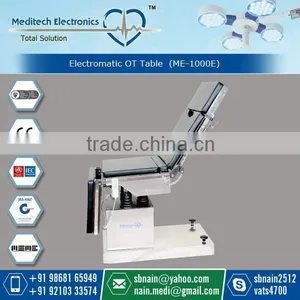

Electronic Hydraulic Operation Table C Arm Compatible Fully Remote
US$ 2,000 - 2,500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Operating Table
Power Source:
Electricity
Brand Name:
Meditech Electronics
Payment & Shipping
Payment Methods:
Port of Shipment:
Delhi & Mumbai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C-Arm Operating Theatre Table (ME-1000E)US$ 2,000 - 2,500MOQ: 1 Unit -
High Level and Humanized Design Hydraulic Operation Theatre Table With Advance TechnologyNegotiableMOQ: 1 Unit
-
Electric Up & Down OT Table With Multi Operating Positions OptionNegotiableMOQ: 1 Unit
-
New Technolgy Based Electric Operation Theatre Table for Best Human ComfortUS$ 2,000 - 2,500MOQ: 1 Unit
-
Electronic Operation Table With Easy Movement in 360US$ 2,000 - 2,500MOQ: 1 Piece
Type
Operating Table
Power Source
Electricity
Brand Name
Meditech Electronics
Model Number
ME-1000E
Place of Origin
Delhi, India
Product Description
The Electromatic OT Table accommodates all general surgery applications in addition to a wide range of specialist procedures.
Salient Features
- Perfect & easy floor locking system at the head end side by foot paddle.
- Easy movement of the table at 360 degrees with four castors on floor.
- All S S parts are fitted with 202/304G (as per requirement) (Lab tested).
- Antistatic mattress with fine finish & durable with 50mm thickness (Density 60).
- Dual leg Sections by single handle operating system.
- Head & legs sections interchangeable. Side railing is very beautiful & fine finish, with zero play.
- New designed blocks for side railing.
- You can detach or attach any accessory at any point at the side railing without disturbing any other accessory.
- Lifting system is very strong, non failure & maintenance free.
- Covering material is stainless steel 202/304G.
- All table parts are sandblasted by high class processing.
- Inbuilt Kidney Bridge driven by handle.
- Kidney Bridge knobs don't disturb any accessory.
- You can have any surgical position without any disturbance.
- All mechanical sizes are in mm standard in this table.
Standard Accessories
Meditech Electronics is one of working closely with the people that matter the most - the surgical clinicians and operating theatre professionals that use our world class products.
This close cooperation allows us to develop a range of operating table accessories that consistently exceed the exacting demands required in today's operating theatre environment. Operating table accessories work with our operating tables to extend the versatility of our operating tables, whilst optimizing patient security and comfort for all operating procedures.
- Five Sections mattress - 1 set
- Anesthetist Screen L - 1 Pc
- Lateral support padded - 2 pair
- Shoulder Support padded - 2 Pair
- Lithotomic Crutches Padded - 2 Pair
- Arm Rest Padded - 1 Pair
Optional Accessories
- Neuron Attachment Mayfield Type
- Neuron Attachment Sujata
- Spine Attachment Wilson Type
- Spine Attachment Four Pad Type
- Lateral Arm Support With Pad.
- Finger Attachment
- Wrist Fracture System
Orthopedic Attachments
Meditech Electronics also develops a range of Orthopedic Attachments that consistently exceed the exacting demands required in today's operating theatre environment. These attachments work with our operating tables to extend the versatility of our operating tables, whilst optimizing patient security and comfort for all operating procedures.
Salient Features
- Attachment made by stainless steel 202/304 G all parts.
- Traction guns are very smooth with fine setting.
- Attachment attaching system is by push only, no screws no handle.
- Attachment detaching system by press knob only by foot.
- Leg adaption system perfect looking by gear mechanism.
- Leg adapter lock & unlock from leg end side.
- Attachment moves on four castors.
- Attachment performance is better than other attachments.
Standard Accessories Ortho Attachments
- Orthopedic section - 1 pc
- Pelvic rest - 1 pc
- Pelvic support (R.T) – 1 pc
- Inner thigh support (RT) – 1 pc
- Foot plate with ortho shoes – 1 Pair
- Hand surgery table (RT) – 1 pc
- Tibia Attachment – 1 Pc
- Leg holder (G Type) – 1 Pc
- Steinmen Pin Holding Clamp – 1 Pc.
Technical Data
| Technical Data | ME-1000E |
| Overall length w/o head & legs | 1020mm |
| Overall length w/o head rest, with leg sections | 1730mm |
| Overall length with head & legs | 2030mm |
| Width of table top | 530mm |
| Total Width | 580mm |
| Diameter of the castors | 65mm |
| Height adjustment | 750mm-1050mm |
| Trendelenburg | 30* |
| Reverse trendelenburg | 30* |
| Lateral adjustment(L/R) | +/-20* |
| Kidney bridge | Inbuilt height 125mm |
| Longitudinal displacement | Optional |
| Back section | 82*/-30* |
| Leg plate(s) | +20*/-90* |
| Swivelling of leg plates | 40* to 45* |
| Head rest | +25*/-90* |
| Net weight including head & legs | 207 Kg |
| Weight capacity* safe working | 215 Kg |
| Mechanism of lifting | By Imported Actuators |
| Mechanism of positioning | By Imported Actuators |
| Leg sections | Dual leg paltes |
| Floor lock | By leg paddle |
