CE Approved Marine Oil Cooler-Stainless Steel 316L

CE Approved Marine Oil Cooler-Stainless Steel 316L thumbnail-1
CE Approved Marine Oil Cooler-Stainless Steel 316L thumbnail-2
CE Approved Marine Oil Cooler-Stainless Steel 316L thumbnail-3
CE Approved Marine Oil Cooler-Stainless Steel 316L thumbnail-4
CE Approved Marine Oil Cooler-Stainless Steel 316L photo-1
CE Approved Marine Oil Cooler-Stainless Steel 316L photo-2
CE Approved Marine Oil Cooler-Stainless Steel 316L photo-3
CE Approved Marine Oil Cooler-Stainless Steel 316L photo-4
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
AB
Contact Supplier Request Quote Chat Now
Linan Beta Mechanical & Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name AB
Model Number EC100-Eti
Structure Tube Heat Exchanger
Liquid Flow Rate 60L/min
Maximum Working Pressure 3.5MPA
Voltage 220,380v
Weight 2kgs
Dimension(L*W*H) 296*89*100mm
Power(W) 12.5kW
Certification CE, ROHS, UL, Other, CE, ROHS, UL, ISO
Warranty 5 years
After-sales Service Provided Overseas service center available

Specifications

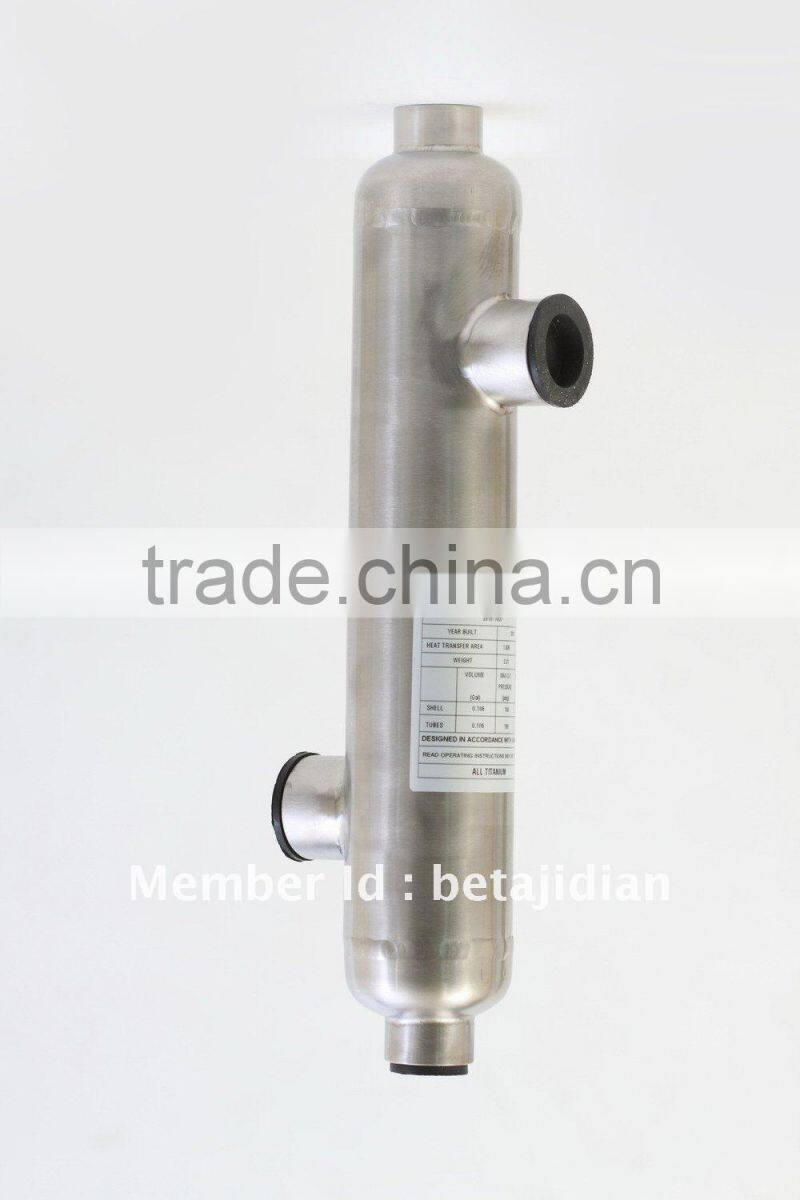

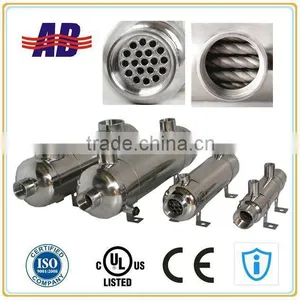

Our Marine heat exchanger is made of stainless steel 316L or titanium material and with a compacted size for boat cooling.


Product Description

We are specialized in the manufacturing of heat exchangers and oil coolers, including the following oil coolers



Engine & tranmission oil coolers

Exhausted air to water intercoolers

Hydraulic Oil Coolers

Marine Heat Exchangers

DC heat exchangers

Fuel Coolers

After Coolers



Features of Marine heat exchanger:

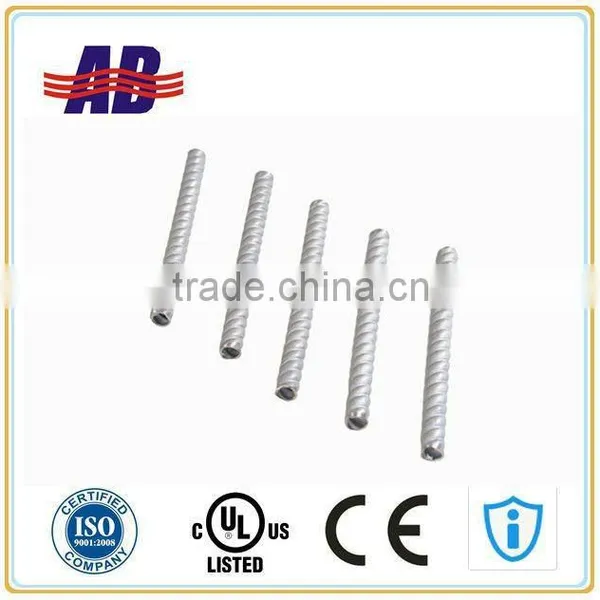

With corrugated tubes, this marine heat exchanger ensures high viscosity oil with good flow velocity inside of the unit.

 CE Approved Marine Oil Cooler-Stainless Steel 316L

This features made this marine heat exchanger efficient and cost effective on water to oil cooling system.



Advantages of Marine heat exchanger:

1. High heating efficiency for oil cooling

2. Compacted size

3. Easy installation

4. Stainless steel 316L or titanium shell & tubes.

5. Various connectors for connection.





Performance data of Marine heat exchangers



Typical examples of heat exchangers fitted to marine transmissions with an oil inlet temperature of 80°C and a sea water temperature of 32°C.



Type

Sea water pipe

(mm)

Engine Water Pipe

Engine power

kW

HP

DC 50

DC 60

DC 90

DC120

20/25

20/25

20/25

20/25

Rc 3/8" or 1/2"

Rc 3/8" or 1/2"

Rc 3/8" or 1/2"

Rc 3/8" or 1/2"

30

40

60

80

40

54

80

107

EC 80-E

EC100-E

EC120-E

EC140-E

32/40

32/40

32/40

32/40

Rc 1/2"

Rc 1/2" or 3/4"

Rc 1/2" or 3/4"

Rc 3/4"

60

90

120

150

80

120

160

200

FC100-E

FC120-E

FC140-E

FC160-E

65

65

65

65

Rc 1"

Rc 1"

Rc 1"

Rc 1"

135

180

225

270

180

240

300

360

FG100-E

FG120-E

FG140-E

Rc 2 1/2"

Rc 2 1/2"

Rc 2 1/2"

Rc 1 1/4"

Rc 1 1/4"

Rc 1 1/4"

225

270

360

300

360

480

GL140-E

GL180-E

GK190-E

GK250-E

GK320-E

Rc 2"

Rc 2"

100

100

100

Rc 1 1/2"

Rc 1 1/2"

Rc 2"

Rc 2"

Rc 2"

360

450

700

950

1200

480

600

940

1270

1608

GL140-H

GL180-H

GL240-H

GK190-E

GK250-E

GK320-E

Rc 1 1/2"

Rc 1 1/2"

Rc 1 1/2"

Rc 2"

Rc 2"

Rc 2"

Rc 2"

Rc 2"

Rc 2"

Rc 2 1/2"

Rc 2 1/2"

Rc 2 1/2"

180

250

320

360

450

550

240

335

428

428

600

737

JK190-E

JK250-E

JK320-E

PK190-E

PK320-E

PK350-E

PK400-E

Rc 2 1/2"

Rc 2 1/2"

Rc 2 1/2"

Rc3"

Rc3"

Rc3"

Rc3"

80

80

80

100

100

100

100

550

700

850

700

950

1200

1400

737

938

1140

938

1273

1608

1876





Design Parameter



Maximum working pressure on oil side:25 bar

Maximum working pressure on water side: 3 bar, 10 bar, 15 bar

Maximum working temperature: 125°C

We produce customized applications on different working pressure and temperature.

 CE Approved Marine Oil Cooler-Stainless Steel 316L


Packaging & Shipping

1. High temperature resistant and water proof label

2. One unit will one instruction booklet

3. One heat exchanger is packed in a foam filled carton. Then packed all the units in wood box for bulk order.

CE Approved Marine Oil Cooler-Stainless Steel 316LCE Approved Marine Oil Cooler-Stainless Steel 316L



Our Services



1. Sample provied

2. Quick delivery by FedEx or DHL

3. Customized production for special requirements

4. OEM logo and brand
