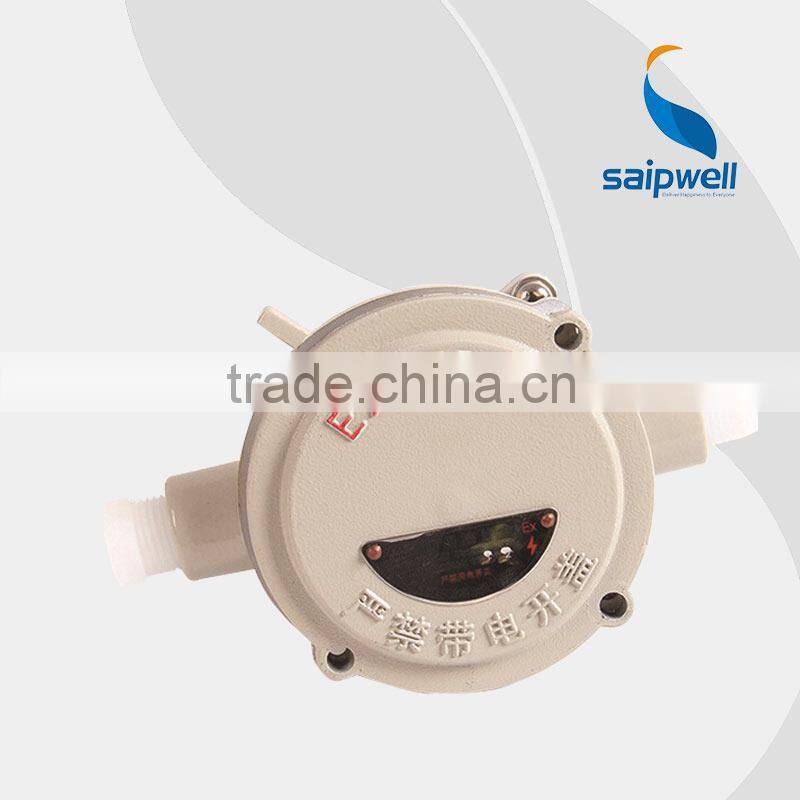

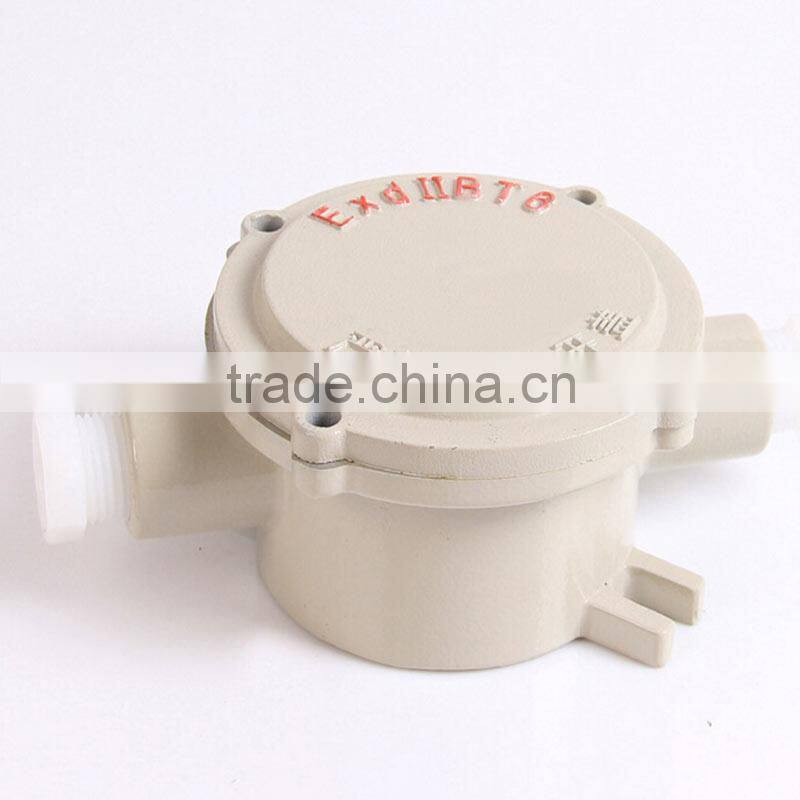

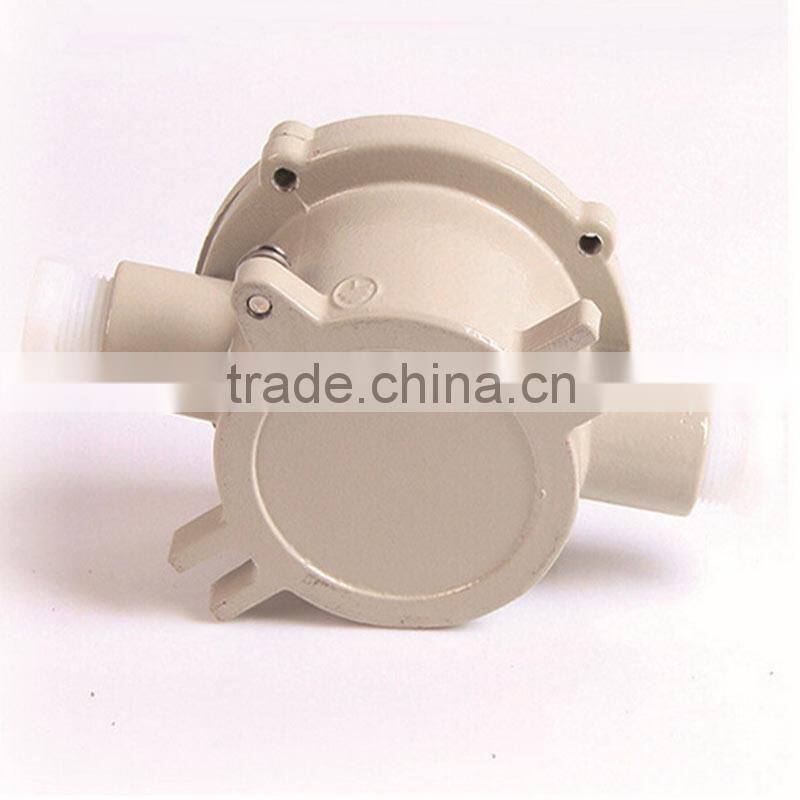

Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)

Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B) thumbnail-1
Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B) photo-1
US$ 3.5 - 6.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SAIPWELL
Model Number:
BHD51-B
Contact Supplier Request Quote Chat Now
Shanghai Saipwell Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SAIPWELL
Model Number BHD51-B
Protection Level IP65
Type Other, junction case
External Size around 18mm

Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)



 Saipwell/Saip Best Selling Explosion proof die casting aluminium box

Saipwell/Saip Best Selling BHC Explosion-proof Die Casting Aluminium Junction Case
Die casting aluminium explosio-proof junction case
Exe II explosion-proof junction case
IP65 exposion proof junction case



  Saipwell/Saip Best Selling Explosion proof die casting aluminium box

 Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)





  Saipwell/Saip Best Selling Explosion proof die casting aluminium box

 Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)





  Saipwell/Saip Best Selling Explosion proof die casting aluminium box

 Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)

  Saipwell/Saip Best Selling Explosion proof die casting aluminium box



Product    Descriptions

  Saipwell/Saip Best Selling Explosion proof die casting aluminium box

1.BHC series Explosion-proof junction box.

2.can be used in zone1 and zone2,zone21 and zone 22.

3.ex-proof enclosure ,aluminium alloy.

4.Widely used in chemical, petroleum, military industry, etc. For the dangerous sites.



 Product    Specifications



1. Conduict outlet body come in G1/2''.

2. Inlet or outlethas many kinds of modes and speciafications (specail outlet mode can be customized ).

3. Aluminum conduit box is made of aluminum die casting .

4. Serew fixed removable cover makes general maintenance and wire pulling and feed through easy and convenient .

5. Threaed conduit outlet box contain cover and gasket.

6. Plastic powder-coated finish and water-tight gasket ensure a weatherproof installation .

7. Conduit body available in G1/2", G3/4", G1", G1-3/4 G1-1/2", G2" .



Product           Series



  Saipwell/Saip Best Selling Explosion proof die casting aluminium box



Model A Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B) Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)
Model Pipe Inner Diameter(φ,mm) Proofing Grade (G″) L B H
BHC-A1/2 15 1/2 121 33 42
BHC-A3/4 20 3/4 141 37 51
BHC-A1 25 1 157 45 58
BHC-A11/4 32 11/4 183 53 69
BHC-A11/2 40 11/2 198 60 74
BHC-A2 50 2 225 73 85
BHC-A21/2 70 21/2 262 95 112
BHC-A3 80 3 248 104 126
BHC-A4 100 4 300 120 135



  Saipwell/Saip Best Selling Explosion proof die casting aluminium box



Model B Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B) Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)
Model Pipe Inner Diameter(φ,mm) Proofing Grade (G″) L B H
BHC-B1/2 15 1/2 121 45 42
BHC-B3/4 20 3/4 141 49 51
BHC-B1 25 1 157 59 58
BHC-B11/4 32 11/4 183 71 69
BHC-B11/2 40 11/2 198 79 74
BHC-B2 50 2 225 94 85
BHC-B21/2 70 21/2 262 120 112
BHC-B3 80 3 248 128 126
BHC-B4 100 4 300 145 135



  Saipwell/Saip Best Selling Explosion proof die casting aluminium box



Model C Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B) Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)
Model Pipe Inner Diameter(φ,mm) Proofing Grade (G″) L B H
BHC-C1/2 15 1/2 121 57 42
BHC-C3/4 20 3/4 141 61 51
BHC-C1 25 1 157 73 58
BHC-C11/4 32 11/4 183 89 69
BHC-C11/2 40 11/2 198 98 74
BHC-C2 50 2 225 115 85
BHC-C21/2 70 21/2 262 145 112
BHC-C3 80 3 248 152 126
BHC-C4 100 4 300 180 135



  Saipwell/Saip Best Selling Explosion proof die casting aluminium box



Model D Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B) Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)
Model Pipe Inner Diameter(φ,mm) Proofing Grade (G″) L B H
BHC-D1/2 15 1/2 109 45 42
BHC-D3/4 20 3/4 129 49 51
BHC-D1 25 1 143 59 58
BHC-D11/4 32 11/4 165 71 69
BHC-D11/2 40 11/2 179 79 74
BHC-D2 50 2 204 94 85
BHC-D21/2 70 21/2 237 120 112
BHC-D3 80 3 224 128 126
BHC-D4 100 4 275 145 135



  Saipwell/Saip Best Selling Explosion proof die casting aluminium box



Model E Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)  Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)
Model Pipe Inner Diameter(φ,mm) Proofing Grade (G″) L B H
BHC-E1/2 15 1/2 109 45 42
BHC-E3/4 20 3/4 129 49 51
BHC-E1 25 1 143 59 58
BHC-E11/4 32 11/4 165 71 69
BHC-E11/2 40 11/2 179 79 74
BHC-E2 50 2 204 94 85
BHC-E21/2 70 21/2 237 120 112
BHC-E3 80 3 224 128 126
BHC-E4 100 4 275 145 135



  Saipwell/Saip Best Selling Explosion proof die casting aluminium box

 Saipwell/Saip Best Selling Exd Explosion-proof Die Casting Aluminium Junction Case(BHD51-B)



  Saipwell/Saip Best Selling Explosion proof die casting aluminium box

Our        Company



 Saip Electric Group Co.,(called "Saip" for short) is an enterprise specialized in design,production and sales of electric equipments.Head office located in the largest manufacturing base of electric equipment of Wenzhou China,which is called "the Electric Equipment Capital of China",next to Shanghai and Ningbo Ports.

Saip ,an ISO9001 certificated enterprise.Now it has five design and production bases in Hong Kong,Singapore,Turkey and Shanghai(China Mainland),28 sales organizations in the world and more than 50 holding member enterprises.All exported products have passed through the certification of CE and partial products have passed through Several kinds of international certification like ROHS ,EMC,LVD,IP68 and so on.

Saip as always inherits "high quality and sincere service".

Saip-your successful cooperative partner!





Packaging   &   Delivery





♦We can do the packaging according to your requirement.



♦Each product is sealed by polythelene bag.



♦ Goods are using standard packaging.



♦ 7-25 days after payment/deposit,subject to the order quantity.
