Product Details
Place of Origin: | Shanghai, China | Brand Name: | SAIPWELL | Model Number: | PDB-SMC-801232 |
Protection Level: | IP65 | Type: | Control Box | External Size: | 800*1250*320mm |
Product Description
SAIP/SAIPWELL 800*1250*320mm New IP65 Control Box SMC Fiberglass Compositive Box
Box Structure:
Box parts are high temperature pressure formed with completely insulation plymer composite
materials(SMC). The whole body is formed by functional parts linked together,having high
manufacturing precision. It has features of new and compact structure, convenient assembly,
and special rainproof design ans ventilation design.
The box has excellent electric specifications, such as insulation index dielectric
strength, electric leakage resistance tracking index and aging resistance. Even in the wet
condition, it will not have condensation. High mechanical strength makes if safer than metal
boxes,ecen wire fault inside the box or broken by external force will not cause the box
electrified. It is suitable for the area with big population without guard net.
Box Features:
1) Box parts is pressure formed, modular construction, with high dimensional precision and
convenient installation.
2) Exellent insulation property. The box is completely insulating structure, no need adding
earthing system.
3) Exellent heat-shielding performance and special ventilation structure design prevent box
inside from condensation and glazed frost.
4) Exellent corrosion proof properties withstand dilute acid, base, salt and rain corrosion.
5) Exellent aging resistance property adding substace withstanding ultraviolet ray in the
material makes the box more durable and longer life.
6) Completely sealed structure and special protection design make orotection class up to
IP55, IP65.
7) Plenty of inside parts make components easy to install.
8) Light weight, high strength, high temperture resistant, and fire resistant, steady and
safe structure.
9) Compact structure, attractive outline design and natural color, without light pollution.
Payment Terms:
We accept 30% payment in advance, the balance payment before shipping.
We also accept L/C according to the order amount
We can accept the payment by T/T, Western Union, Paypal, Private Account, Escrow,Cash,and others.
Model | Dimension W*H*D(mm) | Model | Dimension W*H*D(mm) |
PDB-SMC-816497 | 810*640*970 | PDB-SMC-126497 | 1200*640*970 |
PDB-SMC-966032 | 960*600*320 | PDB-SMC-156497 | 1500*640*970 |
PDB-SMC-978164 | 970*810*640 | PDB-SMC-176497 | 1700*640*970 |
PDB-SMC-116032 | 1140*600*320 | PDB-SMC-196497 | 1900*640*970 |
PDB-SMC-126032 | 1200*600*320 |
|
|
Components List:
NO. | Name | No. | Name |
1 | Rack plate | 13 | Door lock catch |
2 | Left plate | 14 | Hinge hitch |
3 | Right plate | 15 | Lightning symbol |
4 | Top plate | 16 | Upper sliding part |
5 | Movable plate | 17 | Under sliding part |
6 | Left door plate | 18 | Door lock |
7 | Door lock catch | 19 | Door lock antislip piece |
8 | Screw | 20 | Lock bolt |
9 | Square nut | 21 | Left door plate |
10 | Section lock catch | 22 | Back plate connecting piece |
11 | Top plate screw | 23 | Base right plate |
12 | Pad | 24 | Base front back plate |

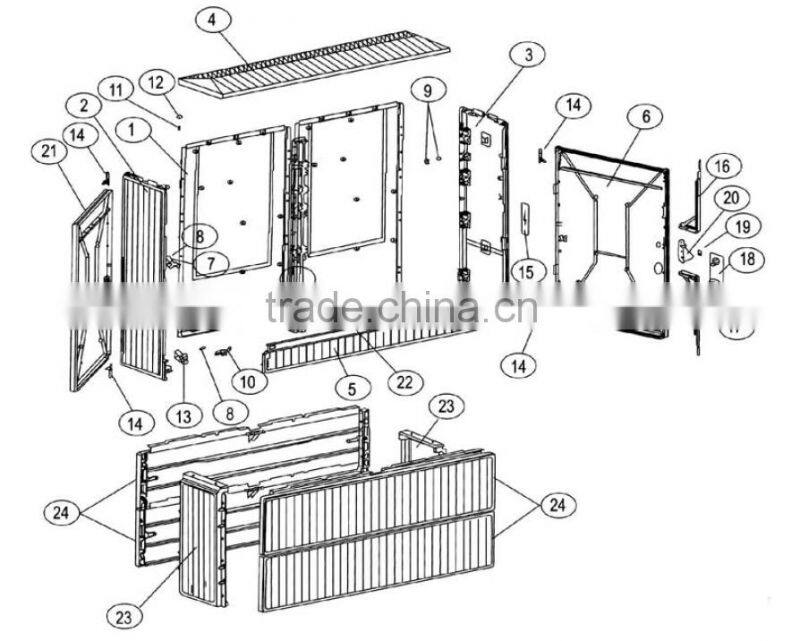

Box Exploded Diagram:

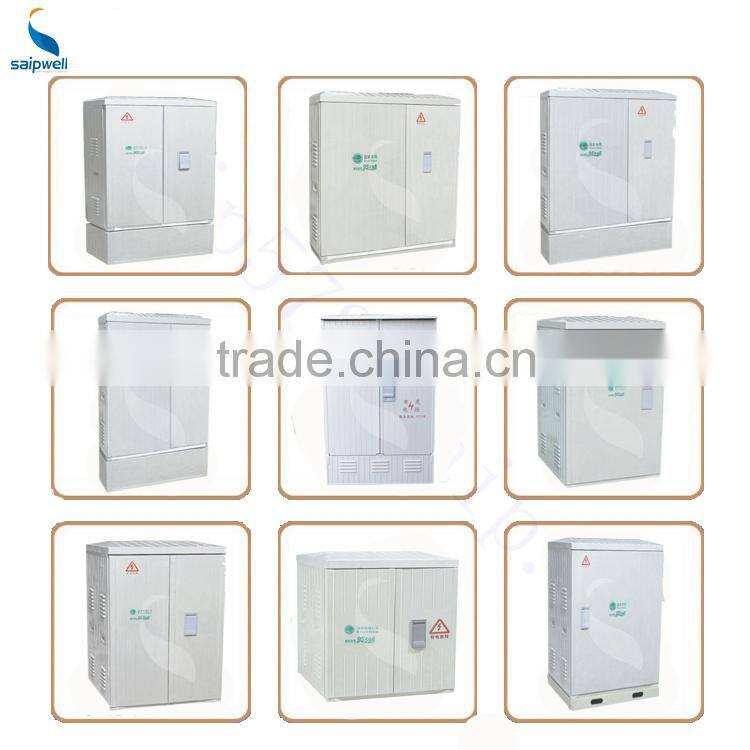

Product Show:

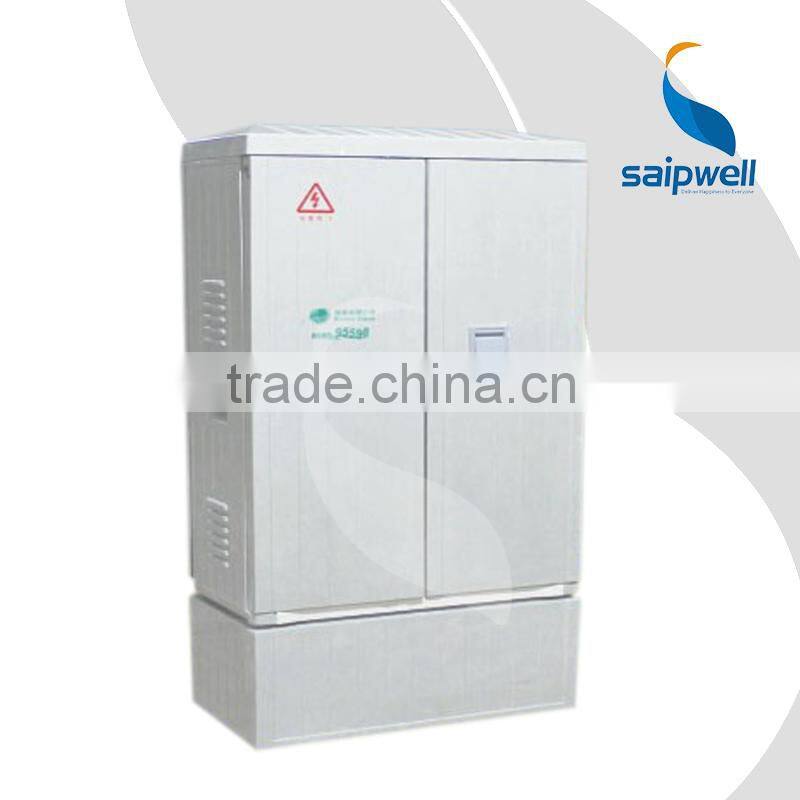

SAIP/SAIPWELL 800*1250*320mm New IP65 Control Box SMC Fiberglass Compositive Box
SAIP/SAIPWELL 800*1250*320mm New IP65 Control Box SMC Fiberglass Compositive Box
