Place of Origin Zhejiang, China
Brand Name Saip / Saipwell
Model Number CA series
Usage Current
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer

SAIP / SAIPWELL current transformer testing equipment ( CA 62/20 -104/80 )





1. Specification:

current transformer
1. 5A 720V Power Current Transformer
2. Class:0.5&1.0
3. CE Certified
4. 4 KVeff, 50Hz,1Min





 2. Features:



Microprocessor control ; Built-in DC start function enables UPS to be started up without AC ; power supplied ; Smart RS-232 communication port ; Auto charge even though UPS is off ; Provides discharge ; Overcharge, and overload protection;current transformer testing equipment





 3. Applications:



1) Application: to be used in combination with measurement instruments: ammeters,         watt-hour meters, measurement units, control relays, etc.

2) Secondary current Isn: 5A
3) Max. voltage rating Ue:660 V
4) Frequency: 50/60 Hz
5) Safety factor (fs):10
6) Degree of protection: IP20
7) Operating temperature: -5to +40, the average value within 24h shall not exceed+35, 8) humidity <80%.
9) Standards: IEC/EN 60044-1

10) Installation type: mounting on plates or bars

current transformer testing equipment





 4. Technical data:



No.

Parameters

Detail

1

Rated Frequency

AC50/60HZ

2

Rated Test Voltage

3kv AC(1min)

3

Rated short-time thermal current (Ith)

 60In

4

Rated Voltage(Um)

0.72KV(AC)

5

Continuous Overload(Id)

1.2In

6

Operating Temperature

-10degreee to +50 degree

7

Housing self extinguishing class

VO

8

Safety Factor

FS 5

9

Seconday Current

5A/1A

10

Rated Dynamic Current

2.5Ith

current transformer testing equipment



Rated Current (A) Primary/Secondary

30/5A

40/5A

50/5A

60/5A

75/5A

80/5A

100/5A

Accuracy Class

3

1.0

1.0

1.0

1.0

Rated Burden(VA)

1

1.5

2.5

2.5

2.5

current transformer testing equipment



5. Outline Drawing :



SAIP / SAIPWELL current transformer testing equipment PROFESSIONAL TRANSFORMERS ( CA 62/20-104/80 )

 current transformer testing equipment

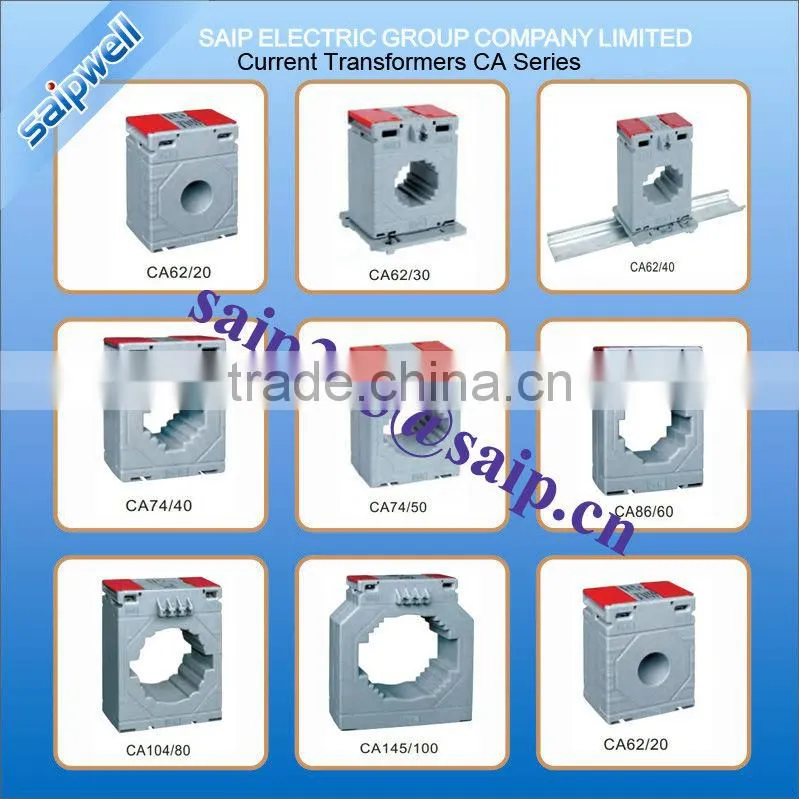

6. Display of Our CA Series :



SAIP / SAIPWELL current transformer testing equipment PROFESSIONAL TRANSFORMERS ( CA 62/20-104/80 )

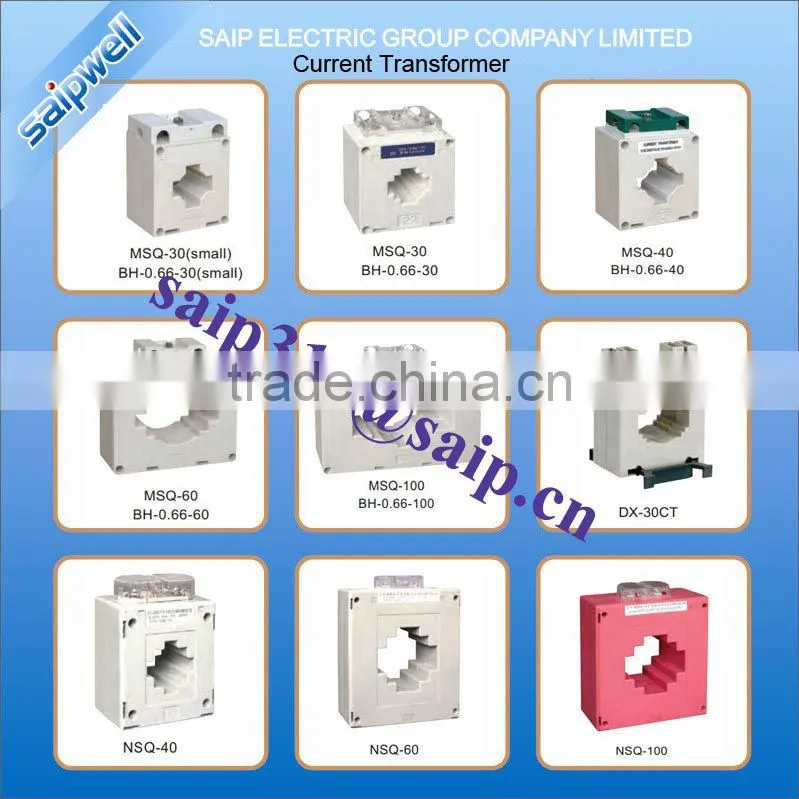

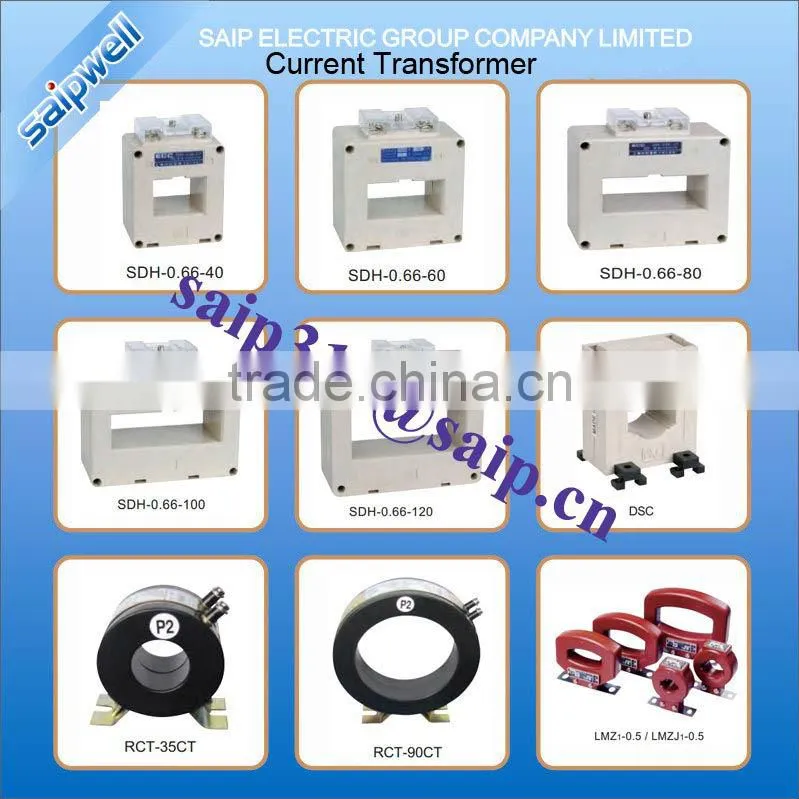

7. Other Similar Production for Reference :



SAIP / SAIPWELL current transformer testing equipment PROFESSIONAL TRANSFORMERS ( CA 62/20-104/80 )SAIP / SAIPWELL current transformer testing equipment PROFESSIONAL TRANSFORMERS ( CA 62/20-104/80 )

SAIP / SAIPWELL current transformer testing equipment PROFESSIONAL TRANSFORMERS ( CA 62/20-104/80 )SAIP / SAIPWELL current transformer testing equipment PROFESSIONAL TRANSFORMERS ( CA 62/20-104/80 )SAIP / SAIPWELL current transformer testing equipment PROFESSIONAL TRANSFORMERS ( CA 62/20-104/80 )

SAIP / SAIPWELL current transformer testing equipment PROFESSIONAL TRANSFORMERS ( CA 62/20-104/80 )



8. About Our Company :





SAIP / SAIPWELL current transformer testing equipment PROFESSIONAL TRANSFORMERS ( CA 62/20-104/80 )



 SAIP / SAIPWELL current transformer testing equipment PROFESSIONAL TRANSFORMERS ( CA 62/20-104/80 )



More products,you can visit our web :  to check.



Contact Person:May Qie



Skype:saip530



Mob:0086-18721848775



Happy to service for you.
