SAIP/SAIPWELL New Small Electrtic Aluminium Semiconductor PTC Cabinet Heater
RC 016 Heater: These small heaters designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.
1. Features:
1). Temperature limiting
2). Wide voltage range
3). Dynamic heating up
4). Energy saving
5). Compact
2. Temperature controller passed CE ,RoHS.
3. Samples will be offered to you for our future cooperation.
4. OEM/ODM service are offerred.
5. Payment: T/T Advance, L/C 100% Payment if total amount less than $10,000USD.
6. Shipment: by air/sea or express.
SAIP/SAIPWELL New Small Electrtic Aluminium Semiconductor PTC Cabinet Heater
Technical Data
Operating voltage | 120-240V AC/DC (min. 110V, max. 265V) |
Heating element | PTC resistor, self regulating and temperature limiting |
Heater body | aluminium,anodised |
Connection | Screw fixing |
Fitting position | variable |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Protection type/Protection class | IP32 / II (double insulated) |
*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
| Art. No. | Heating capacity | Inrush current | Surface temperature(approx.) | Connection | Weight(approx.) |
| 01602.0-00 | 8W | 2.0A | 150 ℃ | 2*AWG 18 standard wire | 20g |
| 01609.0-00 | 10W | 2.5A | 155 ℃ | 2*AWG 22 sheathed calbe(silicone) | 30g |
| 01610.0-00 | 13W | 3.0A | 170 ℃ | 2*AWG 22 sheathed calbe(silicone) | 40g |
*at 20°C (68°F) ambient temperature

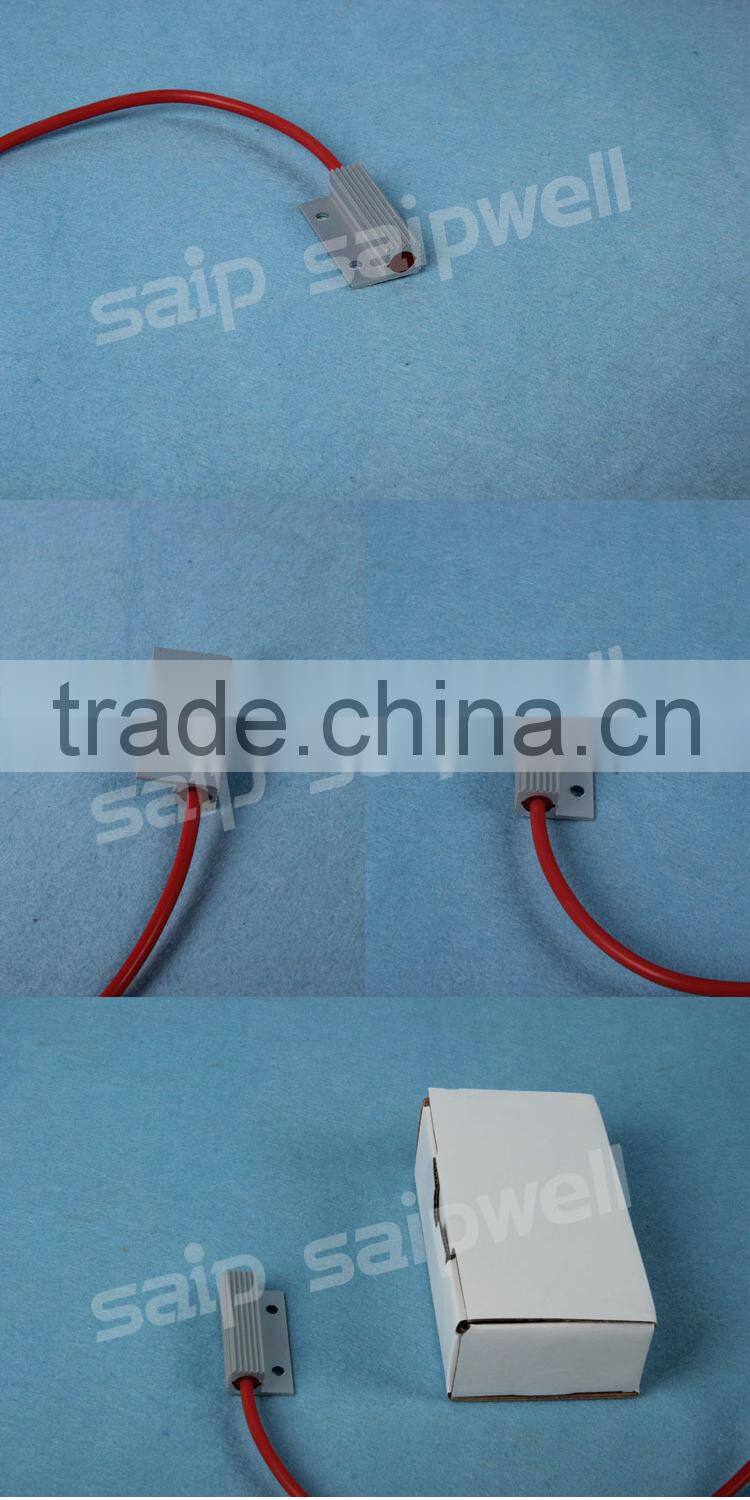

Product show:

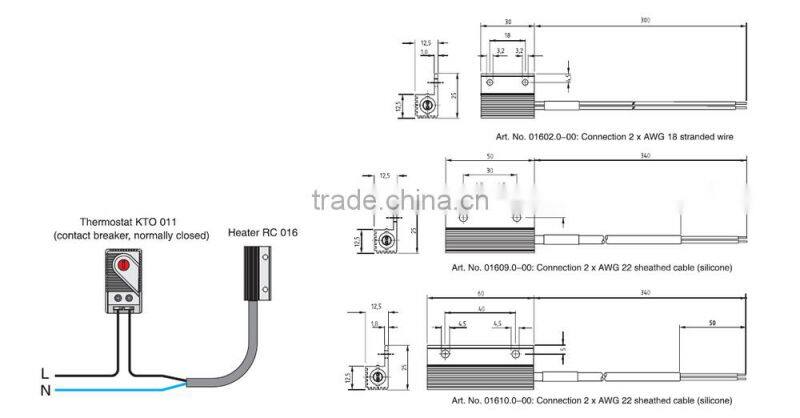

Connection
SAIP/SAIPWELL New Small Electrtic Aluminium Semiconductor PTC Cabinet Heater
SAIP/SAIPWELL New Small Electrtic Aluminium Semiconductor PTC Cabinet Heater
SAIP/SAIPWELL New Small Electrtic Aluminium Semiconductor PTC Cabinet Heater
SAIPWELL is a famous enterprise specialized in design, production and sales of electric
equipments.Had factory located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
Business Type:Manufacturer.
Main Products: low-voltage apparatus, welding equipment, instrument and meter, photoelectron, electrical products for construction ,automobile apparatus and industrial automation.
SAIP/SAIPWELL New Small Electrtic Aluminium Semiconductor PTC Cabinet Heater
1. Reply inquiry in 24 hours.
2,Material,size and other requirements are customized.
3,Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
4,Answer your question detailed
5,Solve the problem with you during using our products
6,More our products you can visit our website:
Transportation:
1.By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and China Post, China Small Package and so on.
2. By Air: We can ship from Ningbo, Shanghai, Shenzhen, Hongkong, Urumqi, Beijing.
3.By Sea: We can offer you FOB Ningbo, FOB Shanghai, FOB Shenzhen, FOB Urumqi, FOB XiaMen, FOB Beijing.
4. We also can send to your forwarder or agent in China, who can arrange shipment for you.
FAQ:
Q: Is sample available and free?
A:Sample is available , but the cost should be payed by you.
The cost of sample will be refund after further order.
Q: What certificate do you got ?
A:We got CE , SAA , RoHS , SGS , ISO...
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: It usually takes 7-25days after we confirm the payment,
but specific time should be based on the order quantity.
Q: How about the transport ?
A:We usually transport by Express for samll order and by sea or by air for large quantity.
Contact us:
Seller:Tina
Mob: +86-13585642636
Tel: +86-21 33050667-8082
QQ: 1470952317
Skype: saip381
ADD:8F/8K Red Stone Technical Center NO.512, Wenchuan Road, Shanghai 201906,China
Website:
Our company provide heater, electric heater, electric heater, electric heater, electric heater, electric heater, electric heater, electric heater, electric heater, electric heater, compact heater, compact heater, compact heater, cabinet heater, room heater, electrical heater, water heater, oil heater etc.
The heater can be installed in enclosures,such as ABS enclosrues,waterproof box,plastic box, junction box,control box,terminal box,switch box etc.
