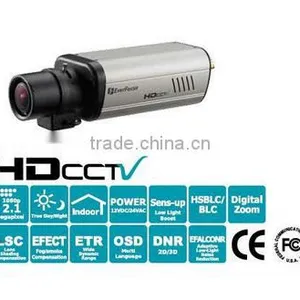

High-quality Best-price 2.1 Megapixel Full HDcctv Box Camera

High-quality Best-price 2.1 Megapixel Full HDcctv Box Camera thumbnail-1
High-quality Best-price 2.1 Megapixel Full HDcctv Box Camera photo-1
US$ 200 - 300 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Brand Name:
Everfocus
Model Number:
EQH5202
Contact Supplier Request Quote Chat Now
Edge Technical Solution L.l.c
Payment & Shipping
Payment Methods:
Port of Shipment:
Jabel Ali
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Everfocus
Model Number EQH5202
Type Digital Camera
Style Box Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Product Description


Specifications


2.1 Megapixel 1920x1080p HDcctv HD
Day/Night operation with automatic ICR module
Certificates:CE, FCC
8 Privacy Zones



Features



• 2.1 Megapixel 1920x1080p HDcctv HD video over coax for superlative image detail


• CS/C mount, manual and DC iris control for flexible choice of HD Megapixel lenses


• Electronic Lens Shading Compensation for uniform image illumination across the desired field of view


• True Day/Night operation with automatic ICR module


• Provides 2D&3D DNR/EFALCONR/SENS-UP (up to 60x) to improve image clarity, particularly in low light scenes


• ETR (EverFocus Tone Reproduction) to deliver properly exposed images despite bright light sources, deep shadows and/or unbalanced lighting in the same scene


• EFECT (EverFocus Enhanced Contrast Technology) delivers recognizable images despite interference from fog or smoke


• Digital zoom increases effective lens magnification and includes PIP viewer for adjusting electronic pan, tilt and zoom


• HSBLC/BLC with programmable zones aid in control of image exposure and contrast in the presence of concentrated light sources such as automobile headlights or from deep shadows surrounding objects of interest


• Up to 8 Privacy Zones programmable for size, location and color detection


• Dead pixel compensation for increased clarity and extended service life


• Easy to use OSD setup menu for digital signal processing feature control


• SD TV Out to aim and focus using a standard hand held test monitor


• Dual Voltage Power Source 12VDC/24VAC



Specifications



Pickup Device 1/3” Panasonic 2.1 Megapixel Color Progressive CMOS sensor
Image Pixels 1920(H) x 1080(V) with 2.75μx 2.75μ pixel size
HDcctv Image Area Dimensions 5.28mm(H) x 2.97mm(W); ø 6.06mm area diagonal
Angle of View

Wide end: Diagonal 94.5°; Horizontal 86.6°; Vertical 55.9°
Narrow end: Diagonal 33.7°; Horizontal 29.6°; Vertical 16.9°
Sensitivity 0.4 Lux/F=1.2; 0 Lux(IR LED ON)
S/N Ratio Max. 50dB
Video Format Main Output HDcctv

Video Resolution/Mode Main
Output

 1920 x 1080p 30/25
Main Output Connector BNC
Video Format Test Output NTSC/PAL selectable
Test Output Connector Pin header; adapter cable to BNC supplied
Lens Type C/CS mount, (Adapter included for C-mount; lens sold separately).
Lens Control manual/DC iris control support

True Day/Night Control Yes (Auto IR cut filter removal)
OSD Menu Yes (controlled from 5-axis joystick control)
Electronic Shutter Auto/Manual selectable
Polestar SENS-UP

Low light boost 2X~60X(recommended no more than 8X without careful
consideration of application conditions)

EverFocus Tone Reproduction
(ETR)

 Off/Low/Medium/High [Electronic Wide Dynamic Range]
Lens Shading Compensation On/Off

Back Light Compensation
(HSBLC=Highlight Suppression
Back Light Compensation)

Off/BLC/HSBLC
BLC (select areas from 8x15 grid)
HSBLC (4 zones programmable for size and location)
Auto Gain Control Low/Middle/High
Auto White Balance ATW/Push/Manual/Outdoor/Indoor
DNR

Common Level Adjust 0~100
2D DNR – On/Off; 3D DNR –On/Off
EFALCONR [EverFocus Adaptive Luminance Compensated
Optimized Noise Reduction] –On/Off

EFECT
(EverFocus Enhanced Contrast
Technology)



Low/Middle/High
EFECT improves contrast in smoke, fog and similar conditions
Digital Zoom

2X~64X with optional PIP mode
for ease of electronic pan/tilt alignment
Motion Identification   On screen highlighting of changing areas
OSD Text Color Control  Custom camera title; ability to change text display color and turn black text

outline off/on to contrast with scene
 Image Flip Off/H Flip/V Flip/HV Flip (rotate 180°)
 Programmable Privacy Zones 8 areas independently adjustable for size, location, color
 OSD Text Language Selection English / Traditional Chinese / Simple Chinese / Japanese
 Dead Pixel Compensation Dynamic Method Off/On/Auto;

Static Method Off/On; separate adjustable threshold levels

   Power Source & Consumption

DC12V 220mA 2.64 (Max)
AC24V 155mA 3.6W (Max)


Dimensions (W x D x H)

68.4 x63.7x150mm/2.7“x2.5”x5.9“


Weight 410g/0.90lbs
Certificates   CE, FCC




Dimensions



Place of Origin Taiwan
Brand Everfocus
Model Number EQH5202
