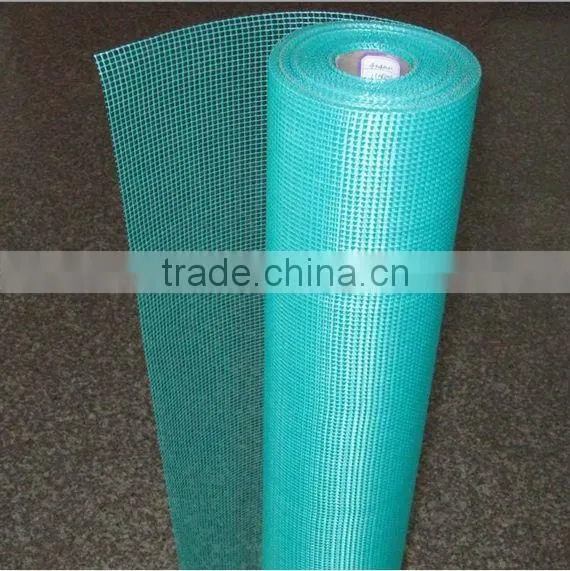

leno weaving glass fibre woven mesh

Specifications

glass fibre woven mesh
weight:45g/m2-600 g/m2
mesh size:2.5x2.5,3x3,4x4,5x5,4x5,6x6,8x8,10x10
alkali resistant
US Canada

Introduction:



Fiberglass mesh is mainly alkali-resistant fiberglass fabric, it made of the C or E glass fiber yarn (main ingredient is a silicate, good chemical stability) through a special weaving technique, then coated by the anti-alkali and reinforcing agent and treated by high temperature heat finishing. It’s ideal engineering material in construction and decoration industry!



Main characteristics:



1.Good chemical stability: Alkali-resistant, acid-resistant, waterproof, cement erosion-resistant, and other chemical corrosion resistant, and strong resin bonding, soluble in styrene.



2.Outstanding process :Include coating enough alkali-resist glue, our coating glue is produced by Germany BASF which can keep 60-80% strength after 28-day immersion of 5% Na(OH) solution, so that guarantee high strength, high tensility, light weight.



3.Our fiberglass yarn is supplied by Jushi Group which is the largest producer of fiberglass yarn in the world like Saint Gobain, it own 20% extra strength and beauty surface than normal fiberglass yarn!



4.Strength retention rate > 90%, elongation <1%, the durability of more than 50 years



5.Good dimensional stability, stiffness, smoothness an difficult to shrink and deformation, good positioning property..



6.Good impact resistance and not easy to be teared.



7.Fire resistant, thermal insulation, sound insulation, insulations etc.



Application:



1. Wall reinforced material (such as fiberglass wall mesh, GRC wall panels, EPS insulation with the wall board, gypsum board, bitumen etc)



2. Reinforced cement products.



3. Used for Granite, mosaic, marble back mesh etc.



4.Waterproof membrane fabric, asphalt roofing.



5. Framework material for reinforced plastics, rubber products,.



6. Fire board.



7. Grinding wheel base fabric.



8. Road surface with geogrid



9. Construction caulking tape etc.



specifications:

weight	45g/m2-600g/m2
roll width	100mm-2000mm
roll Length	10m-300m
color	white(standard), blue, yellow, green, red
mesh size	2.5x2.5mm, 2.85x2.85mm, 3x3mm, 4x4mm, 4x5mm, 5x5mm, 8x8mm, 10x10mm



technical data

NO	SPEC(mm)	Width(mm)	Mesh size(mm)		Yarn density(tex)		Resin content(%)	Mash(g/m^2)	Tensile strength(N/50mm)		Weave
			warp	weft	warp	weft			warp	weft
1	5x5-145	1000	5	5	132x2	364	18±2	145±3	1450	1550	leno
2	5x5-125	1000	5	5	99x2	343	18±2	125±3	1100	1300	leno
3	5x5-110	1000	5	5	99x2	278	18±2	110±3	1000	1100	leno
4	4x4-165	1000	4	4	132x2	338	18±2	165±3	1500	1650	leno
5	4x5-160	1000	4	5	132x2	357	18±2	160±3	1500	1600	leno
6	4x5-145	1000	4	5	132x2	295	18±2	145±3	1500	1400	leno
7	4x4-145	1000	4	4	99x2	340	18±2	145±3	1500	1500	leno
8	4x5-125	1000	4	5	99x2	293	18±2	125±3	1150	1350	leno
9	4x5-110	1000	4	5	66x2	308	18±2	110±3	1100	1200	leno
10	4x4-90	1000	4	4	66x2	202	18±2	90±3	1000	800	leno
11	4x4-85	1000	4	4	33x2	260	18±2	85±3	800	900	leno
12	4x4-75	1000	4	4	33x2	220	18±2	75±3	700	850	leno
13	4x4-60	1000	4	4	33x2	160	18±2	60±3	700	500	leno
14	10x10-130	1000	10	10	250x2	600	18±2	130±3	1200	1500	leno
15	10x10-110	1000	10	10	200x2	550	18±2	110±3	1000	1400	leno



photos



plant



4 or 6 rolls in a carton





 30 rolls in a pallet





container loading



leno weaving glass fibre woven mesh
