Specifications
glassfibre meshweight:45g/m2-680 g/m2
mesh size:2.5x2.5,3x3,4x4,5x5,4x5,6x6,8x8,10x10
alkali resist
wall reinforcement
Introduction:
Fiberglass mesh is mainly alkali-resistant fiberglass fabric, it made of the C or E glass fiber yarn (main ingredient is a silicate, good chemical stability) through a special weaving technique, then coated by the anti-alkali and reinforcing agent and treated by high temperature heat finishing. It’s ideal engineering material in construction and decoration industry!
Main characteristics:
1.Good chemical stability: Alkali-resistant, acid-resistant, waterproof, cement erosion-resistant, and other chemical corrosion resistant, and strong resin bonding, soluble in styrene.
2.Outstanding process :Include coating enough alkali-resist glue, our coating glue is produced by Germany BASF which can keep 60-80% strength after 28-day immersion of 5% Na(OH) solution, so that guarantee high strength, high tensility, light weight.
3.Our fiberglass yarn is supplied by Jushi Group which is the largest producer of fiberglass yarn in the world like Saint Gobain, it own 20% extra strength and beauty surface than normal fiberglass yarn!
4.Strength retention rate > 90%, elongation <1%, the durability of more than 50 years
5.Good dimensional stability, stiffness, smoothness an difficult to shrink and deformation, good positioning property..
6.Good impact resistance and not easy to be teared.
7.Fire resistant, thermal insulation, sound insulation, insulations etc.
Application:
1. Wall reinforced material (such as fiberglass wall mesh, GRC wall panels, EPS insulation with the wall board, gypsum board, bitumen etc)
2. Reinforced cement products.
3. Used for Granite, mosaic, marble back mesh etc.
4.Waterproof membrane fabric, asphalt roofing.
5. Framework material for reinforced plastics, rubber products,.
6. Fire board.
7. Grinding wheel base fabric.
8. Road surface with geogrid
9. Construction caulking tape etc.
specifications:
weight |
45g/m2-600g/m2 |
roll width |
100mm-2000mm |
roll Length |
10m-300m |
color |
white(standard), blue, yellow, green, red |
mesh size |
2.5x2.5mm, 2.85x2.85mm, 3x3mm, 4x4mm, 4x5mm, 5x5mm, 8x8mm, 10x10mm |
technical data
| NO | SPEC(mm) | Width(mm) | Mesh size(mm) | Yarn density(tex) | Resin content(%) | Mash(g/m^2) | Tensile strength(N/50mm) | Weave | |||
| warp | weft | warp | weft | warp | weft | ||||||
| 1 | 5x5-145 | 1000 | 5 | 5 | 132x2 | 364 | 18±2 | 145±3 | 1450 | 1550 | leno |
| 2 | 5x5-125 | 1000 | 5 | 5 | 99x2 | 343 | 18±2 | 125±3 | 1100 | 1300 | leno |
| 3 | 5x5-110 | 1000 | 5 | 5 | 99x2 | 278 | 18±2 | 110±3 | 1000 | 1100 | leno |
| 4 | 4x4-165 | 1000 | 4 | 4 | 132x2 | 338 | 18±2 | 165±3 | 1500 | 1650 | leno |
| 5 | 4x5-160 | 1000 | 4 | 5 | 132x2 | 357 | 18±2 | 160±3 | 1500 | 1600 | leno |
| 6 | 4x5-145 | 1000 | 4 | 5 | 132x2 | 295 | 18±2 | 145±3 | 1500 | 1400 | leno |
| 7 | 4x4-145 | 1000 | 4 | 4 | 99x2 | 340 | 18±2 | 145±3 | 1500 | 1500 | leno |
| 8 | 4x5-125 | 1000 | 4 | 5 | 99x2 | 293 | 18±2 | 125±3 | 1150 | 1350 | leno |
| 9 | 4x5-110 | 1000 | 4 | 5 | 66x2 | 308 | 18±2 | 110±3 | 1100 | 1200 | leno |
| 10 | 4x4-90 | 1000 | 4 | 4 | 66x2 | 202 | 18±2 | 90±3 | 1000 | 800 | leno |
| 11 | 4x4-85 | 1000 | 4 | 4 | 33x2 | 260 | 18±2 | 85±3 | 800 | 900 | leno |
| 12 | 4x4-75 | 1000 | 4 | 4 | 33x2 | 220 | 18±2 | 75±3 | 700 | 850 | leno |
| 13 | 4x4-60 | 1000 | 4 | 4 | 33x2 | 160 | 18±2 | 60±3 | 700 | 500 | leno |
| 14 | 10x10-130 | 1000 | 10 | 10 | 250x2 | 600 | 18±2 | 130±3 | 1200 | 1500 | leno |
| 15 | 10x10-110 | 1000 | 10 | 10 | 200x2 | 550 | 18±2 | 110±3 | 1000 | 1400 | leno |
photos

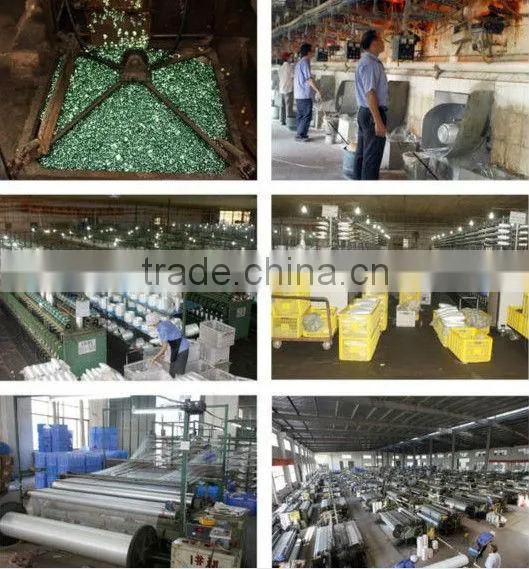

plant

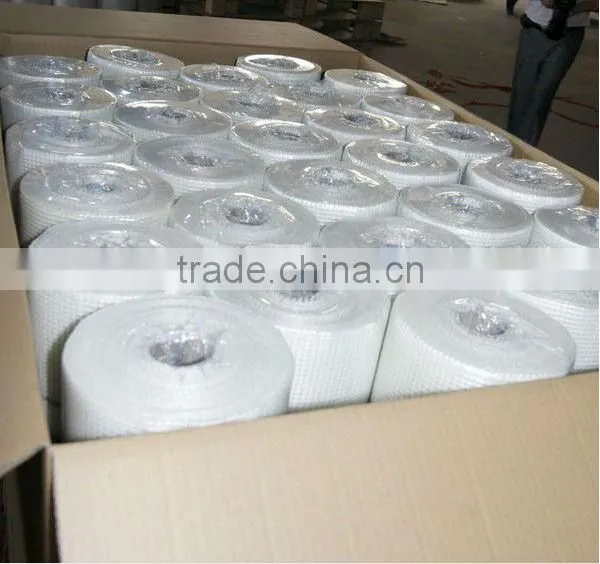

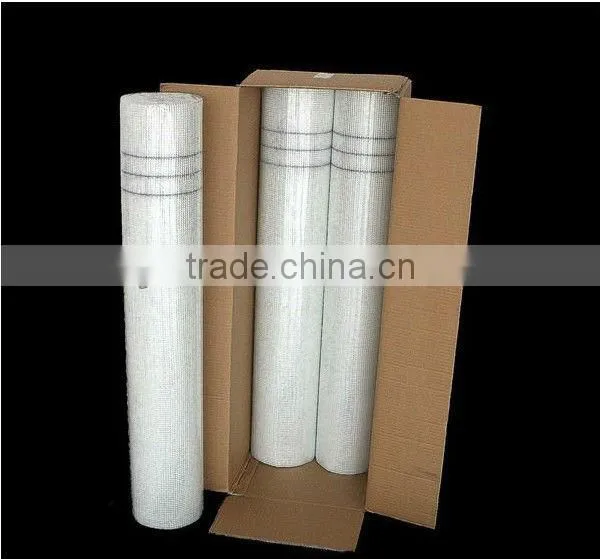

4 or 6 rolls in a carton
30 rolls in a pallet

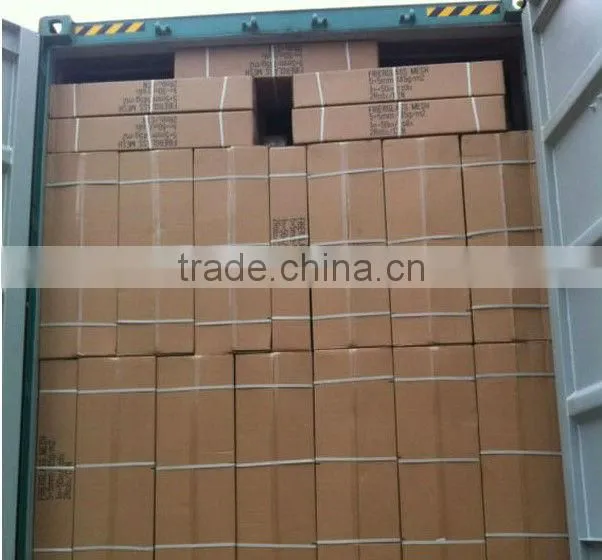

container loading

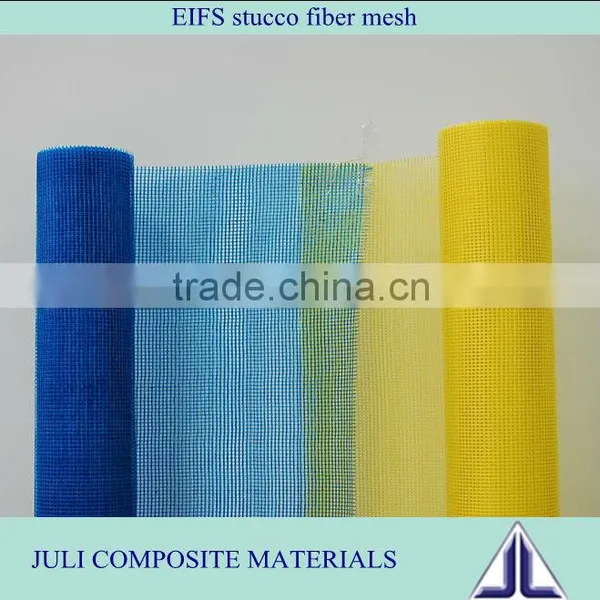

EIFS rendering glassfibre mesh
