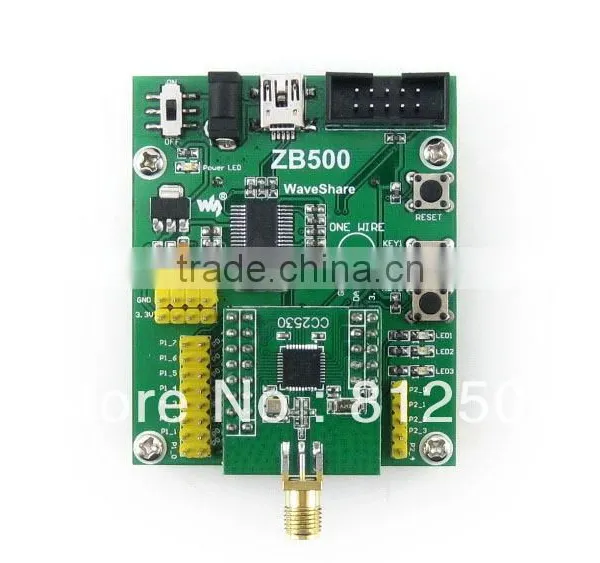

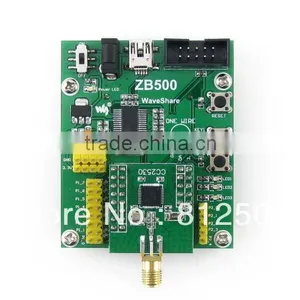

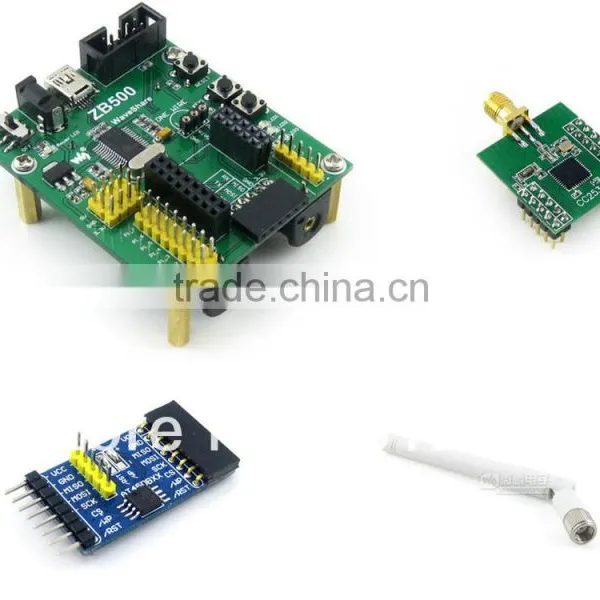

WaveShare Zigbee Cc2530 Module Zigbee Wireless Module CC2530 Development Kit

US$ 19.48 - 19.48 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

cc2530

Shenzhen DSP Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name NA

Model Number cc2530

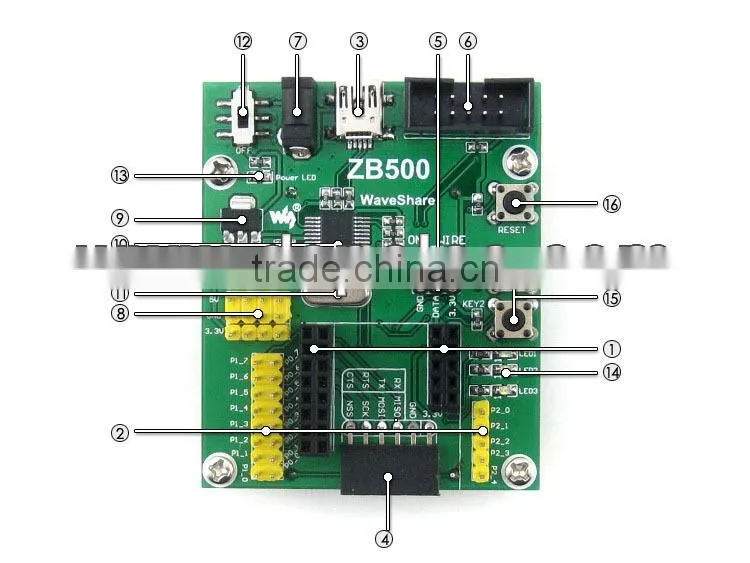

[ Interface ]

[ Devices ]

Core2530 is a master chip to CC2530F256 as core board .
CC2530F256RHAR core parameters :

Working frequency : 2.4GHz
16 transmission channels , depending on the environment for reliable communication channel switch
Wireless transmission speeds up to 250kbps
High performance , low power 8051 microcontroller core
Adapt 2.4GHz IEEE 802.15.4 RF transceiver
Power supply voltage range (2.0 ~ 3.6V)
Watchdog, battery monitor and temperature sensor
It has 8 inputs 8 to 14 ADC
2 supports multiple serial communication protocol USART, 1 infrared generating circuit
A general-purpose 16-bit and two 8-bit timers
Advanced Encryption Standard (AES) Coprocessor
21 general purpose I / O pins, two with a capacity of 20mA current sink or current supply

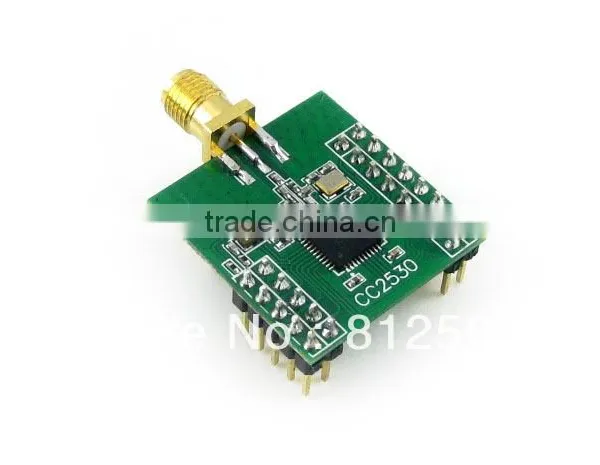

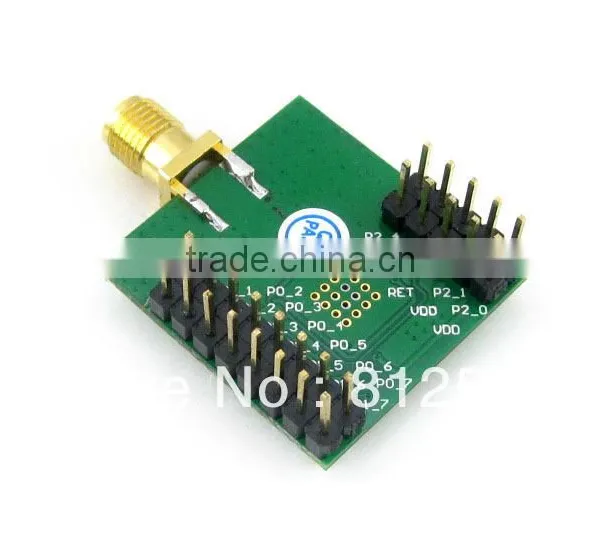

Core2530 core parameters :

Master chip : CC2530F256RHAR
Communication distance : You can communicate : more than 350 meters ; reliable communication : more than 250 meters ; automatically reconnect : more than 120 meters ( Working environment: open area )
Working frequency : 2.4GHz
Operating voltage : 2.0V-3.6V
Temperature range : -40 ~ 85
Baud rate : 38400bps ( default ) , the baud rate can be set to other
Dimension : 26mm x 27mm (PCB)
Interface : All I / O interface
Interface Pitch: PIN pin spacing : 2.54mm; sides pin spacing 22.86mm (9x2.54)
Antenna: using 2.4G, 2DB omnidirectional antenna
Node: can be configured as Coordinator, Router, EndDevice ( factory default : Router)

Product distribution CD-ROM includes the following information:

Software Development
The sample program (C program )
Circuit diagram (PDF format )
ZIGBEE development information ( including all types of devices Datasheet, learning materials , the development of information )
