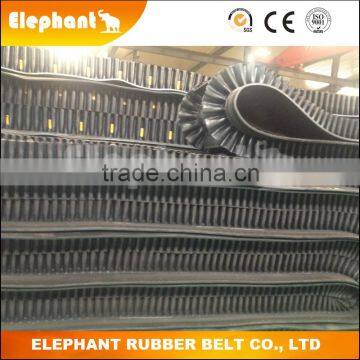

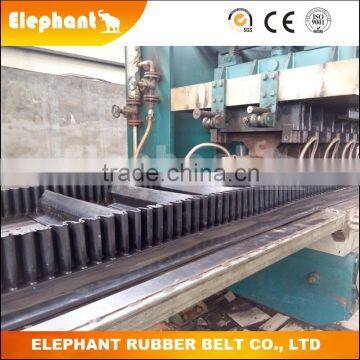

Corrugated Flange Sidewall Conveyor Belt
Description :

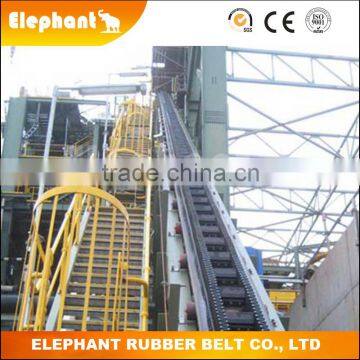

Used for large angle transport (0°- 90°) , allowing for large carrying capacity, heavy duty transport .
Features :
l Strong Transport Capacity for Transport Bulk Goods
l Saving Space Conveyance at Inclines up to 90°
l Good Longitudinal Flexibility
l Different Feed and Discharge Directions are possible
l Smooth Transportation to Protect Materials
Specification :
|
Type of Sidewall |
Block Height (H) |
Block Width (BW) |
Wave Distance (T) |
Bottom Plate Width (BF) |
Square Meter /m (SK) |
Adapted Clapboard (H) |
Clapboard type |
Bottom Plate Width (BF) |
Square Meter /m (SK) |
S |
60 |
44 |
42 |
45 |
0.61 |
50 |
TC |
55 |
0.55 |
S |
80 |
44 |
42 |
50 |
0.75 |
75 |
TC |
70 |
1.29 |
S |
120 |
44 |
42 |
50 |
1.69 |
110 |
TC |
100 |
1.76 |
S |
160 |
65 |
65 |
80 |
2.68 |
150 |
TC |
100 |
2.24 |
S |
200 |
70 |
65 |
90 |
3.53 |
180 |
TC |
160 |
3.39 |
S |
240 |
80 |
65 |
90 |
4.75 |
220 |
TC |
160 |
5.00 |
S |
300 |
90 |
70 |
95 |
7.03 |
280 |
TC |
180 |
7.05 |
Physical Performance of Cover Rubber :
Grade of Cover Rubber |
Tensile Strength |
Elongation at Break % ≥ |
Abrasion Loss |
Change rate of tensile strength and elongation at break after 70℃x168h aging |
laceration resistant type(H) |
24 |
450 |
120 |
-25 ~ +25 |
abrasion resistant type(D) |
18 |
400 |
100 |
-25 ~ +25 |
ordinary type(L) |
15 |
350 |
200 |
-25 ~ +25 |
