Specifications
Grade of steel including:C, K, D, KD, H, the HL, HY, etc..Size:5/8'',3/4'',7/8''
Standard:API
API Spec 11B Sucker Rod
Product Feature:
oil sucker rod pump have the advantages of reasonable design, high efficiency of sucking oil, anti-corosive and wear-resit.
Product specifiction:
1.suker rod/pony rod
Size:5/8''(16mm),3/4(19mm),7/8''(22mm),1''(25mm)...
Length:25ft,30ft,16ft,14ft,20ft,2ft,4ft,8ft,10ft,12ft.
Product Name: sucker rod, polished rod and accessories
Product Description: Our company produce and operate various standard sizes of sucker rod and the polished rod.
Grade of steel including:C, K, D, KD, H, the HL, HY, etc..
Polished rod surface treatment including:polishing and chrome plated layer, tungsten alloy layer.
Rod accessories including:sucker rod nipple, sucker rod coupling and variable diameter nylon coupling, sucker rod nylon centralizer, sucker rod roller centralizer, polished rod clip, polished rod sealing device, etc.

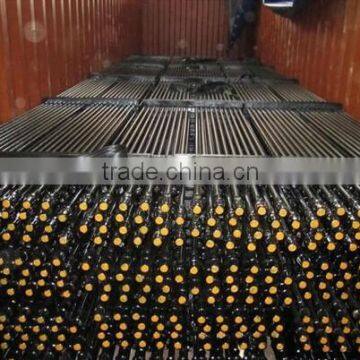

Sucker rod picture
Sucker rod specifications and main dimensions
Specification |
Diameter of rod body (mm) |
Thread nominal diameter (in) |
outside diameter (mm) |
Wrench width (mm) |
Length(m) |
5/8” |
16 |
5/16 |
31.8 |
22.2 |
---- |
3/4” |
19 |
11/16 |
38.1 |
25.4 |
|
7/8” |
22 |
13/16 |
41.3 |
25.4 |
|
1” |
25 |
13/8 |
50.8 |
33.3 |
Specification |
Connecting rod size (mm) |
Thread nominal diameter (mm) |
outside diameter (mm) |
Length |
Grade |
5/8 T |
16 |
15/16 |
38.1 |
101.6/4 |
T |
3/4 T |
19 |
1/16 |
41.3 |
||
7/8 T |
22 |
3/16 |
46.0 |
||
1 T |
25 |
3/8 |
55.6 |
Variable diameter coupling picture
Variable diameter coupling specification and main size
Specification |
Thread nominal size |
outside diameter (mm) |
Length |
Grade |
YJG5/8-3/4 |
15/16-11/16 |
41.3 |
101.6/4 |
T |
YJG3/4-7/8 |
11/16-13/16 |
46.0 |
||
YJG7/8-1 |
1 3/16-1 3/8 |
55.6 |
