New API Centralizer Oil Gas Well Drilling Casing Centralizer
Product name: casing centralizer
Product classification:Bow-spring centralizer,Rigid roller centralizer,Cast aluminum centralizer
Product overview:
Casing centralizer is one of the necessary conventional casing accessories, upon well operationscompletion, the rational use of casing centralizer can play the role of:
Reducing lower casing resistance phenomenon, making the casing smoothly down to the design position;
Making casing centralizer centered within the well|; Reducing the sticking phenomenon to make the annular space hydrostatic pressure balanced;
Reduce channeling, improve the mud replacement efficiency, thus improve the cementing quality.
The reset force of double bow type centralizer is higher than that of single bow centralizer, centering centering performance is better than that of single bow type.

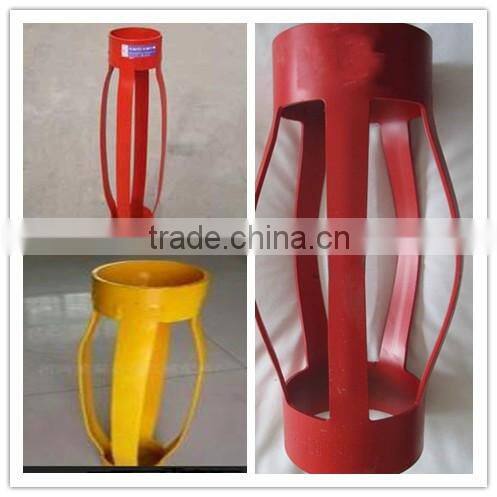

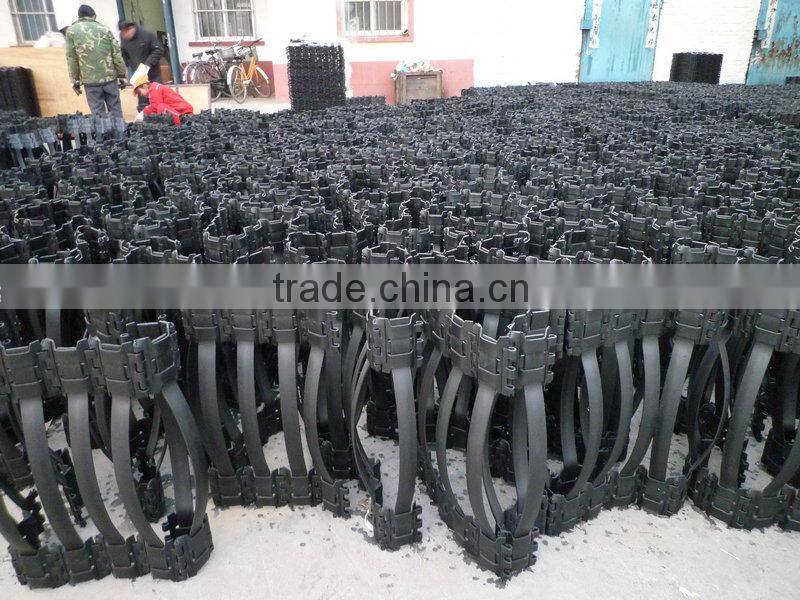

Bow-spring centralizer
1.These Centralizers are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Vertical, Horizontal and Deviated well
2.Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over
3.Spec and performance index of bow spring casing centralizer meet API Spec 10D. The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.
Rigid roller centralizer
Rigid casing centralizer is used in deviated wells and horizontal wells. There are several blades on the rigid roller centralizer that can keep casing from contacting the wellbore wall
Roller rigid centralizer which is most suitable for highly deviated wells and horizontal wells has two or three rollers in each blade. It can change slipping friction to rolling friction, so the Roller rigid centralizer greatly reduces the friction between casing and wellbore wall and let casing go to desired position smoothly

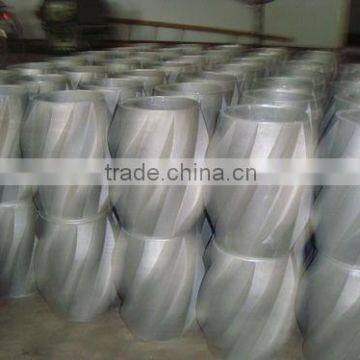

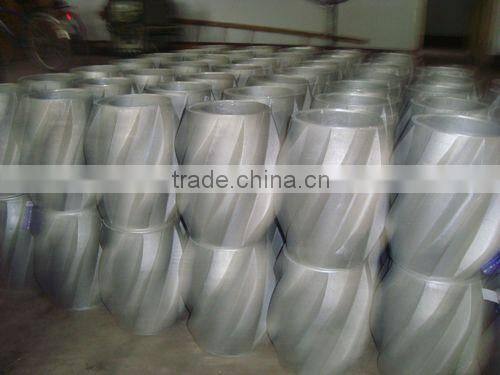

Cast aluminum centralizer:
The smooth spiral 360 overlap solid vane design of centralizers provide max wall contact will not damage wellhead equipment, has high impact and shock resistance comand fluid swirl. The 30slope from the body to the height of the vane will eliminate scraping, or digging into the formation.
The solid cast aluminum centralizers bine with high tensile and yield strengths
Casingcentralizer technical parameters:
Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
