| GENERAL INFORMATION | |||
| Driving type: | 6x4 | Model No.: | ZZ3257N3847 |

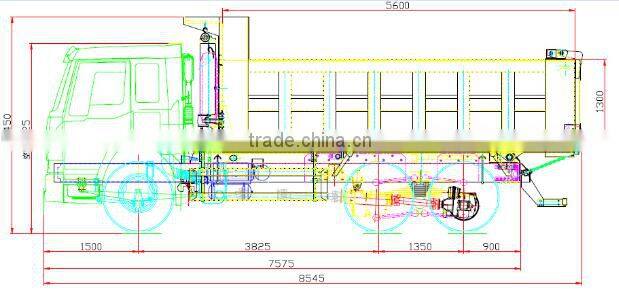

| Whole Dimention: | 8145x2496x3450mm | Wheel Base: | 3800mm |
| Loading weight: | Depends on volume of bucket and engine power:20 ton, 30ton, 40ton,50 ton | Max Speed: | 75km/h |
| DUMP TRUCK ENGINE | |||
| Engine No: | WD615.69 | Cylinder No: | 6 |
| Fuel type: | Diesel | Emission: | 9.726L |
| Emission standard: | Euro 2,Euro 3,Euro 4 | Horse power: | 336hp,266hp,290hp,371hp |
| DUMP TRUCK GEAR BOX | |||
| Gearbox No: | HW15710 | Transmission Type: | Manual |
| Forward: | 10 speed | Reverse: | 2 speed |
| CHASSIS AND TIRE | |||
| Front axle: | HF9 | Front axle loading: | 9000kg |
| Rear axle: | HC16 | Rear axle loading: | 16000kgx2 |
| Tires: | 11.00R20(optional:12.00R20) | Tire quantity: | 10+1(spare tire) |
| CARGO BOX | |||
| Box dimention: | 5600x2300x1500mm(optional) | Lifting system: | middle lifting /front lifting |
| Floor thickness: | 8mm(optional) | Side thickness: | 6mm(optional) |

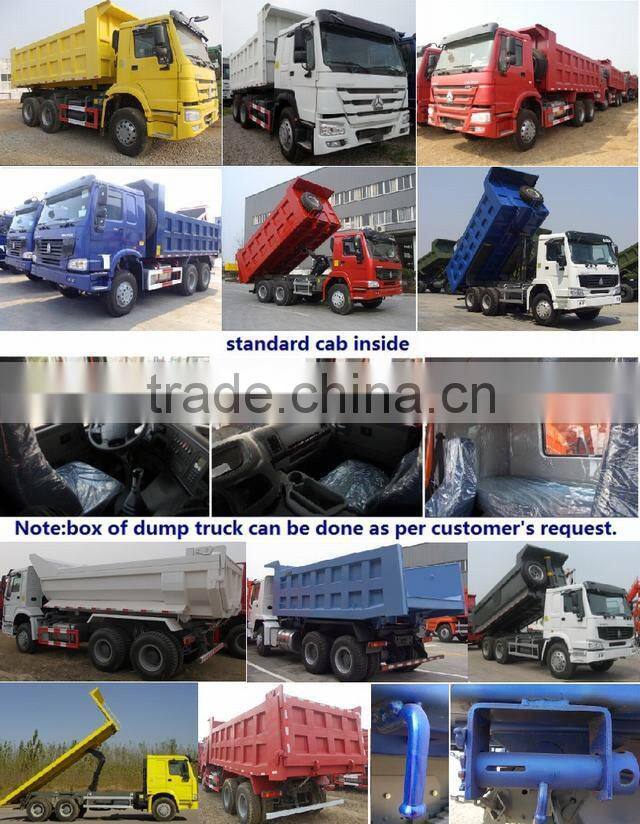

| Note:Box of DUMP TRUCK can be done as per customer's request | |||

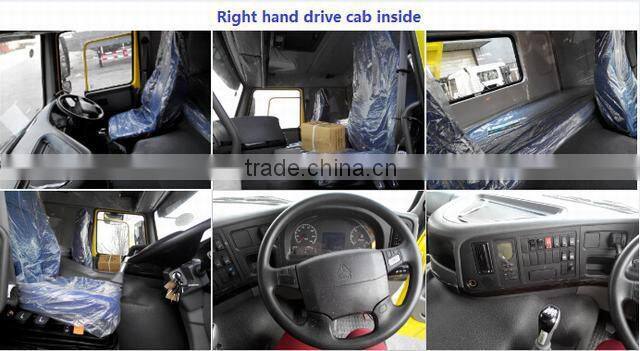

Also can produce right hand drive model:
1.Cooperated with international famous company to improve the truck parts :
- Engine and axles---- Austrian Steyr tech.
- Steering----German ZF steering.
- Frame----German MAN tech
- Air compressor----WABCO brand
- Cab----Sweden VOLVO tech
- Fuel oil filtration system----MANN+HUMMEL brand
- Hydraulic lifting system----USA Permco brand and Holland HYVA brand
2. Heavy duty payload and suitable for bad road condition:
- Engine----Large horse power(Max 371hp),4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling
- Rear axles----Pressed axle housing, central single reduction gear with planetary wheel reduction and differential locks
- Tyre----11.00R20 or 12.00R20 steel-wire tyres
- Clutch----Single- plate dry diaphragm-spring clutch,mechanically operating with air assistance
- Steering----hydraulic steering with power assistance
- Brakes----dual circuit compressed air brake

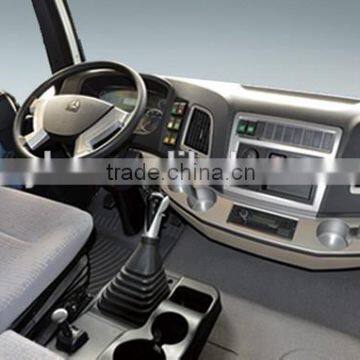

- Strong and comfortable driver’s cab----all steel forward control,hydraulically damped adjustable driver’s seat with one berth and air conditioner
3.Easy to get accessaries in customers' local market,save time and cost.
1. For key parts:
12 months guarantee for key parts-engine,transmission,steering,axles,frame etc.
2. For easy broken parts:
Provide easy broken parts and maintenance tools for free,delivery with the truck.
3. Have built service centres with our cooperators in Angola, Ghana, Nigeria, Ethiopia,Congo etc.
4. Send engineers to customers for training and service.
- SINOTRUK Tai'an SYKE Special Vehicle Co.,Ltd is the subsidiary factory of SINOTRUK Tai'an Wuyue Company(Established in 1950).Wholly owned member of SINOTRUK GROUP.With total assets of 540.00 million Yuan(CNY) and 1400 staffs of which 340 engineers.
- We are one of the earliest enterprises which have passed ISO9001 Certification,CCC certification,SGS,BV and many third party inspection organization:
1. How long production cycle of the truck?
It usually takes 20 workdays.
2. How can you ensure the truck intact to the customer designated location?
- The truck will get wax sprayed thickly before delivery to prevent corrosion by seawater.
- All the tools will be packaged and locked into the truck cab to prevent stolen.
3. What payment terms can you accept?
We accept T/T(bank transfer) as payment method only at present.
4. Can you produce the right hand drive truck?
Yes, we can.
5. Can you do SKD?
Yes,we can do SKD.
6. How can we get the correct truck accessories fastly?
- We establish files for every truck.So any parts needed,please send us the VIN number of the truck.We check the correct model fastly and deliver the parts from warehouse directly.
- Have built service centers in many countries.Customers can get accessories from local service center,it helps save time and cost.
7. Can we visit your company and have a test driving?
Of course,warmest welcome to visiting us and have a test driving.
We will pick you up at Jinan airport or Tai'an high speed train station.
