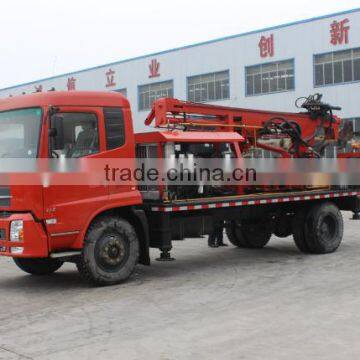

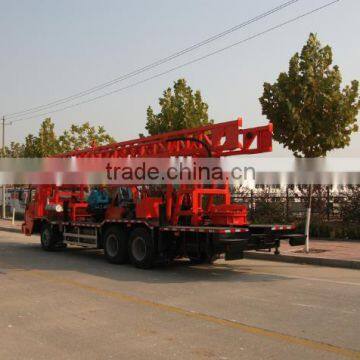

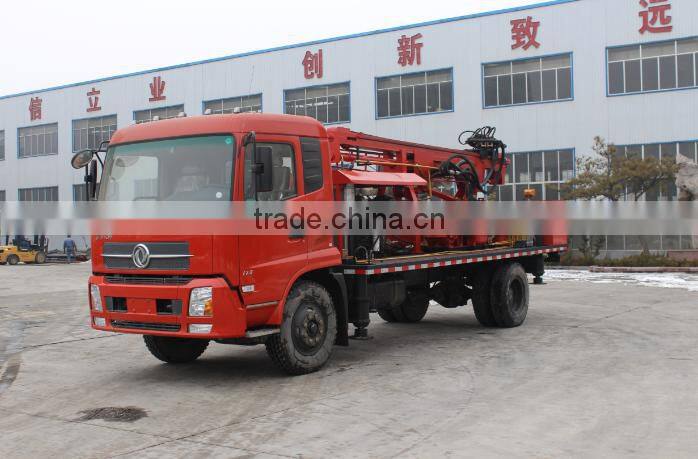

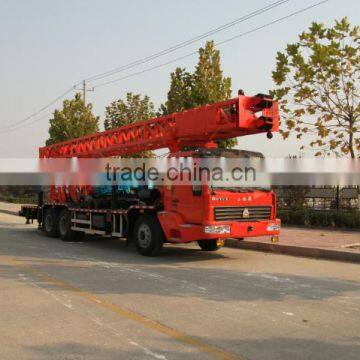

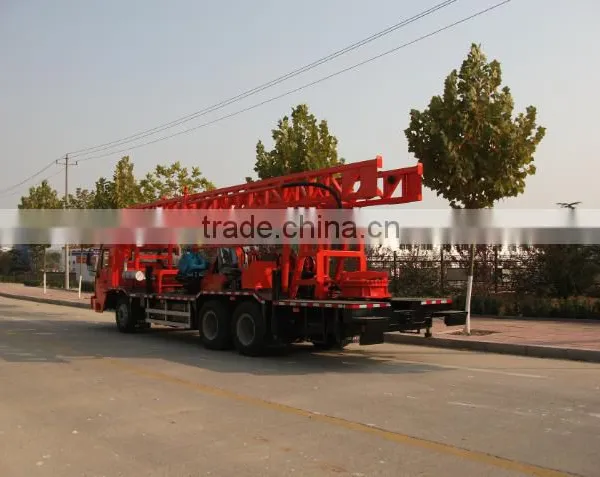

2016 brand new tractor mounted deep water well drilling rig
Drilling depth and drilling diameter can be manufactured as per clients' request.
Technical parameters | |||||
Drilling depth(m) |
Optional |
|
|||
Drilling diameter(mm) |
Optional |
|
|||
Rotary speed(r/min) |
21.2;36;63.2;100.6;155;20.2(reverse) |
||||
Rotary torque(KN) |
18;10.6;6;3.8;2.5;18.9(reverse) |
||||
Single rope lifting capacity of windlass(KN) |
30 |
||||
The mix lifting capacity of windlass(KN) |
180 |
||||
Single rope lifting capacity of hydraulic hoisting vice(KN) |
40 |
||||
The mix lifting capacity of hydraulic hoisting vice(KN) |
160 |
||||
The lifting capacity of hook(KN) |
180 |
||||
Bearing capacity of mast (KN) |
180 |
||||
The height of mast (mm) |
11500 |
||||
Bearing capacity (t) |
25 |
||||
Pipe |
Kelly(mm) |
108*108*7500 |
|||
Assistant pipe (mm) |
Φ89*10*5500 |
||||
|
BW850/2A Mud pump
|
Diameter of cylinder (mm) |
150 |
|||
Stroke of piston (mm) |
180 |
||||
Theory of flow (L / min) |
600 850 |
||||
Rated pressure (Mpa) |
3 2 |
||||
Pounding times (min-1) |
58 82 |
||||
Diameter of suction tube (mm) |
127 |
||||
Diameter of drain pipe (mm) |
64 |
||||
Input speed (r / min) |
470 |
||||
Input power (kw) |
40 |
||||
Overall dimensions (mm) |
2000*1030*1400 |
||||
Weight (t) |
1.5 |
||||
|
Supporting power |
Engine |
Model |
CA6DE3-20E3 |
||
Rated power(KW) |
147 |
||||
Speed (r/min) |
2300 |
||||
The maximum torque |
650.m/1400-1500rpm |
||||
Drive form |
6*4 |
||||
|
Engine
|
Model |
CA6DE3-20E3(Europe Ⅲemission standard) |
|||
Rated power(KW) |
147 |
||||
Speed (r/min) |
2300 |
||||
|
11110*2490*2500 |
||||
|
Electri generator |
Model |
MF |
|||
Rated power (kw) |
15 |
||||
Rated voltage(v) |
400 |
||||
Rated current(A) |
27 |
||||
power factor |
0.8 |
||||
Speed (r/min) |
1500 |
||||
Frequency(Hz) |
50 |
||||
Insulation Class |
H |
||||
Protection level |
IP21 |
||||
The best working gear (or speed) |
5th gear (1000-1400r/min) |
||||
The highest speed(Km/h) |
75 |
||||
Weight (kg) |
19600 |
||||
Transport size(L*W*H)(mm) |
12160*2490*3440 |
||||
Working size(L*W*H)(mm) |
11110*2490*13110 |
||||

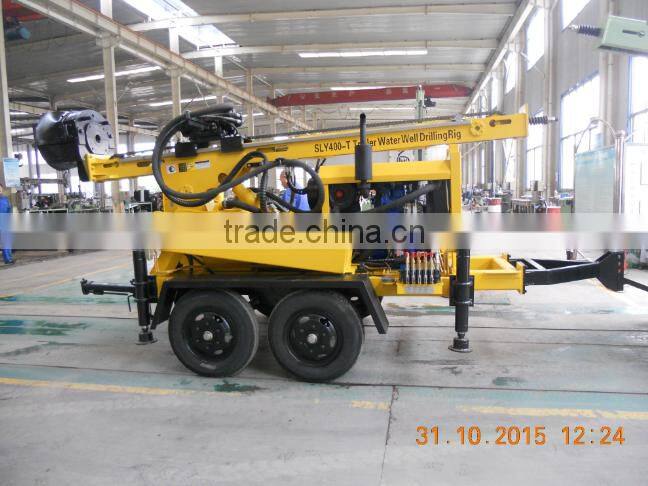

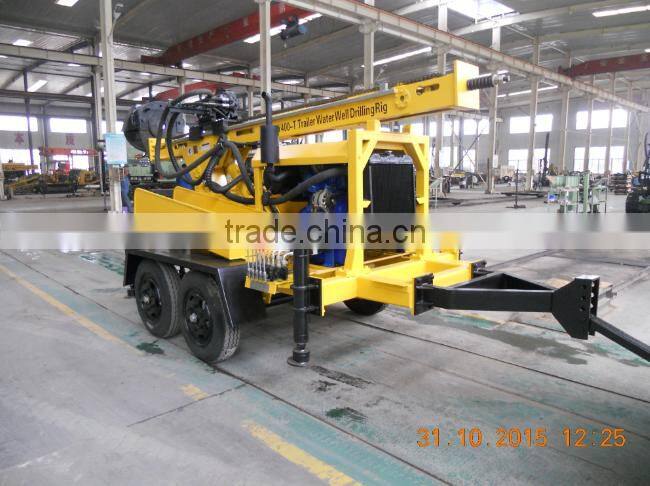

We also manufacture trailer mounted water well drilling rig:
We are one of the earliest enterprises which have passed ISO Certification,CCC certification,SGS,BV and many third party inspection organization:
1. For key parts:
12 months guarantee for key parts-engine,transmission,steering,axles etc.
2. For easy broken parts:
Provide easy broken parts and maintenance tools for free,delivery with the truck.
3. Have built service centres with our cooperators in Angola, Ghana, Nigeria, Ethiopia,Congo etc.
1)Payment terms:T/T(Bank Transfer), 30% deposit, 70% balance before shipment.
2)Delievery date:50 workdays after receiving deposit.
3)Packing:packing in nude,skd container,flat rack container,also design the most suitable packaging and shipping plan for every customer.
4)Shipping:by bulk ship,Ro-Ro or flat rack container.
5)We have exported to most of the countries in the world:
My friend,as Alibaba Gold Supplier, we try our best to protect your rights and interests:
We have joined in Alibaba Trade Assurance,ensure the good quality and fast delivery.Otherwise Alibaba will pay you max USD85000 as reparations(This amount is still growing now).
Please feel free and not hesitate to choose us.
Please not hesitate to contact us,
we provide professional solution according to your request.
