Home > Products > Safety School Bus > WZL6930AT4-X school bus

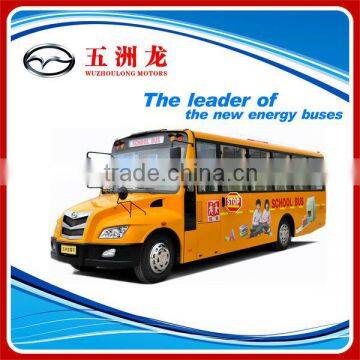

WZL6930AT4-X school bus
Negotiable
/ Unit
1 Unit(Min.Order)
- 15000 Unit / Units per Month
- Shenzhen or Shanghai port
- T/T
You May Like
Product Details
| Seats | Other, 56-61 | Emission Standard | Euro 4 | |
| Transmission Type | Manual | Max Speed | 71 - 90 km/h | |
| Steering Position | LHD | Fuel Type | Diesel | |
| Dimensions (L x W x H) (mm) | 9260x2500x3140mm | Place of Origin | Chongqing, China | |
| Brand Name | Wuzhoulong | Model Number | WZL6930AT4-X |
Product Description
Our Products can be customized,
small order quantity is acceptable.
WZL6930AT4-X SCHOOL BUS
Overall Parameter
| Overall Length (mm) | 9260 |
| Overall Width (mm) | 2500 |
| Overall Height (mm) | 3140 |
| Wheelbase (mm) | 5000 |
| Front/Rear Overhang (mm) | 1110/3150 |
| Approaching/Departure Angle (°) | 20/9 |
| Front/Rear Tread (mm) | 2035/1800 |
| Max Weight (kg) | 12000 |
| Rated Passenger Capacity | 56-61 |
| Top Speed (km/h) | 85 |
Engine Parameter
| Model | YC4E160-42 |
| Manufacturer | YUCHAI |
| Position/Fuel type | Front/ Diesel |
| Type | Inline ,4 strokes, water-cooling ,turbo-intercool,electricity control. |
| Max Power (kw/r/min) | 118/2600 |
| Max Torque (N.m/r/min) | 550/1300-1600 |
| Displacement | 4.26 L |
| Emission Standard | Euro IV |
Chassis Parameter
| Model | NJ6731YFD2 |
| Gear box | 5MT with synchronizer |
| Clutch | φ380 diaphragm spring clutch. |
| Front Axle | Forged module, “H”type section, two fist-end type 4.5T |
| Drive Axle | Integrate instructions 8T |
| Suspension | Leaf spring 5/6 |
| Steering | Integrated power steering |
| Brake | ECE standards, dual-circuit pneumatic, drum braking. |
| oil Tank | 120L |
| Tyre | 9.00R20 6pcs |
| battery | 135Ah×2/110A 28V |
| Others | Automatic-adjusting arm, ABS |
Body
| Body constructure | Semi-monocoque |
| Interior Trim | Molding A/C Interior(Without reading Light ,safety window ,PVC board ) |
| Door and Door pump | Middle Pneumatic outward-swing passenger door rear safety door |
| Window and side wind screen | full-view laminated windscreen,Steel windshield, alloy aluminum sliding side windows. |
| Rear view system | manual bracket rear view mirror,inside view mirror. |
| A/C | 18000kcal/h Capability, top fixed |
| Heating system/ defrost | water-heating defrost system |
| Auto Video system | MP3 |
| Lamp | Front combination big Lamp , rectangular inner roof lamp . |
| Rain wiper | opposed wiper with detergent. |
| seats | 58 seats (3+3 style ) students seats . 2 care seats ,with adjustable driver seat,all seats with safety belt . |
| blanket | Bamboo leather ,china check leather |
| Lacquer | China solid Lacquer |
| Others | extinguisher(4Kg×2), froth rail ,Half driver sun-visor, Electric clock, Roof fan for driver, Travel recorder with GPS, Alloy type cover, colorful rearing monitor. |
