ER10 Euro III Engine Front Wheel Loader With Grapple Bucket
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SYKE
Model Number:
ER10
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Made in China 1000kg Mini Front Wheel Loader With Grapple ForkNegotiableMOQ: 1 Set -
Chinese Manufacturer Front End Wheel Loader/Multi-function Mini Wheel LoaderNegotiableMOQ: 1 Set
-
New Brand CE Articulated Flexible Small Wheel Loader for SaleNegotiableMOQ: 1 Set
-
CE Approved Farm Machine Small Wheel Loader With Snow BucketNegotiableMOQ: 1 Set
-
1 Ton Multifunction Mini Wheel LoaderNegotiableMOQ: 1 Set
Condition
New
Brand Name
SYKE
Model Number
ER10
Place of Origin
Shandong, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
4750*1730*2500mm
Rated Load
1000kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Overseas service center available
Product Description
–Specifications:
| 1.0 Engine Details | ||
| (1) Model: Xichai 4DW91-45 | ||
| (2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine | ||
| (3) Rated Power: 37KW | ||
| (4) Rated Speed: 2200 r/min (rpm) | ||
| (5) Fuel Consumption ratio in standard working condition: 230g /kw. H | ||
| 2.0 Transmission System | ||
| (1) Type: Fixed-spindle Power shift | ||
| (2) Shift gear control oil pressure: 1.2~1.5MPa | ||
| (3) Rated input speed: 2500 (rpm) | ||
| 3.0 Bucket | ||
| (1) Bucket Capacity: 0.6 m3 (2) Bucket width: 1800mm | ||
| (3) Bucket type: Heavy-duty bolt on teeth | ||
| (4) Rated Load: 1000kg | ||
| (5) Operating Weight: 3300kg | ||
| 4.0 Overall Dimensions | ||
| (1) Overall Length (Bucket on ground position): 4750mm | ||
| (2) Overall Height | ||
| (a) Ground to Cab Top: 2500mm | ||
| (b) Dumping Height: 2600mm | ||
| (c) Min. Base to the Ground: 230mm | ||
| (3) Overall Width: 1730mm | ||
| 5.0 Operating Specifications | ||
| (1) Steering System: Articulated Frame with hydraulic power steering | ||
| (2) Min Turning Radius: 3900mm | ||
| (3) Driving System: Hydraulic converter | ||
| 6.0 Brake System | ||
| (1) Service Brake: Four Wheel Hydraulic spread-shoed brake | ||
| (2) Parking Brake: Hand operated | ||
| 7.0 Tyre: 12-1600 |
–Standard Equipments:
Standard Bucket, Luxury Cabin, E-Mark Seat, Adjustable Steering Wheel,130W Heater, 220 V Engine Heater, Lock for Lifting and Steering Cylinder, Backward Imagine, Tipping Cabin, Mechanical Joystick, Disc-Brake and Easy-damaged Spare Parts.
–Optional Attachments:
| EuroIII Engine |
| Quick Hitch |
| Hydraulic Joystick |
| 12-16.5 Tyre |
| 14-17.5 Tyre |
| 31.5×15-15 Tyre |
| Pallet/Grass Forks |
| Grapple Forks/Wooden Forks |
| Grapple Bucket |
| Electric Handle |
| Adjustable Pallet Forks |
| E4 Lamp |
| Snow Bucket |
| Hydraulic Snow Blade |
| Sweeper |
| Snow Blower |
| Tyre Chain |
| Hydraulic Line(per one more) |
| 4 in 1 Bucket |
| Drum Folder/Barrel Clamp |
| Mixer Bucket |
| Floating Function |
| Varta Anti-freeze Battery |
| LED Light |

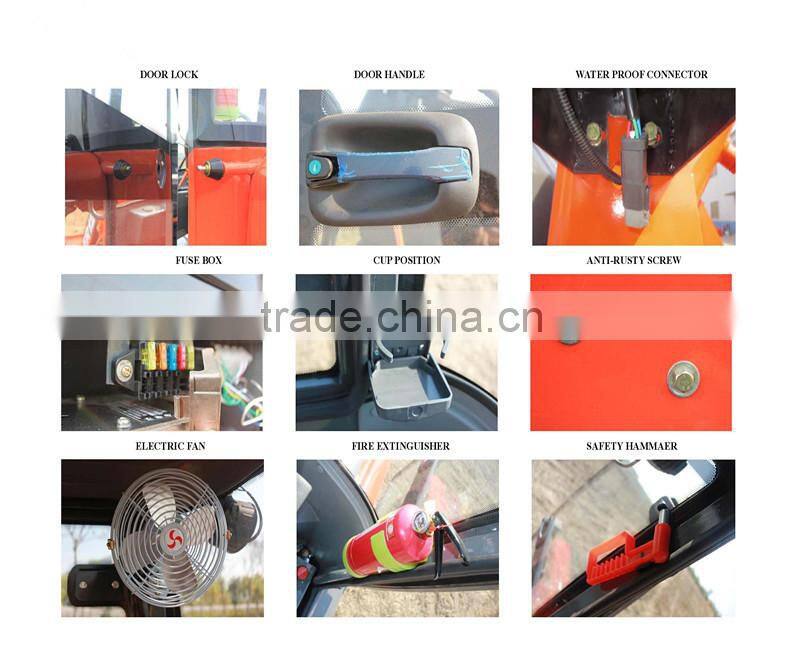

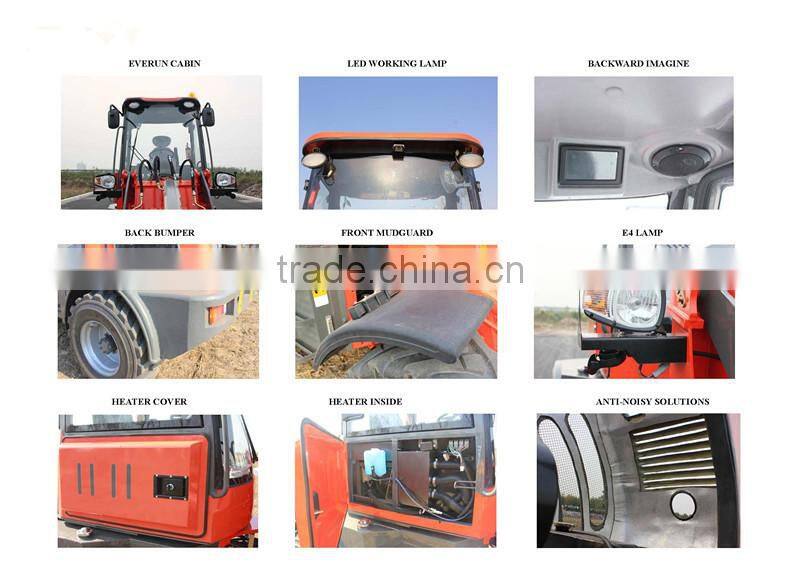

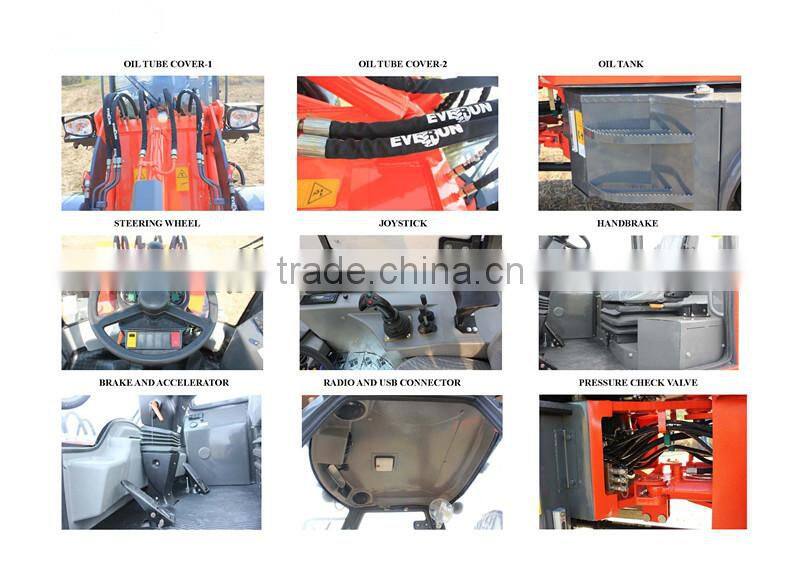

Detail Photos:
