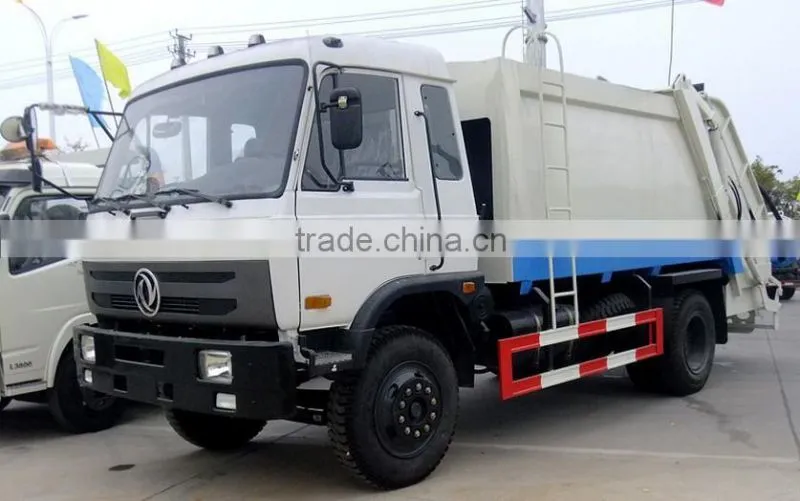

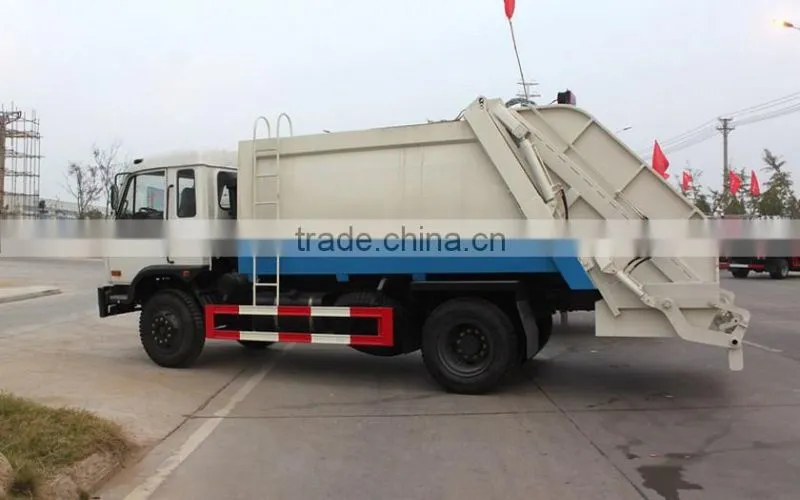

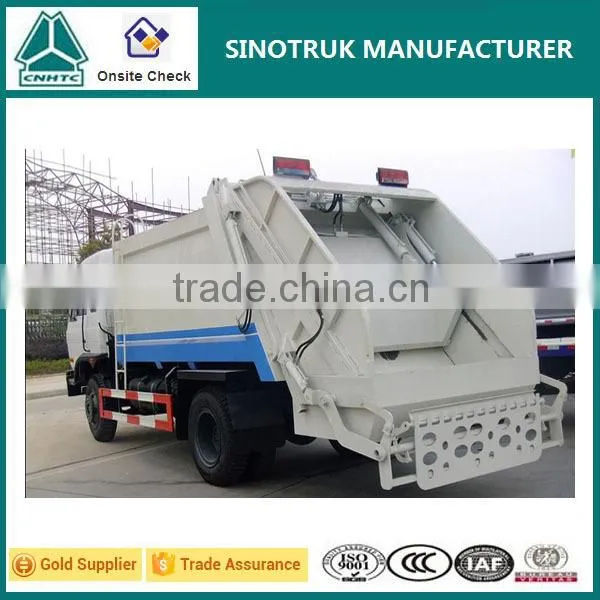

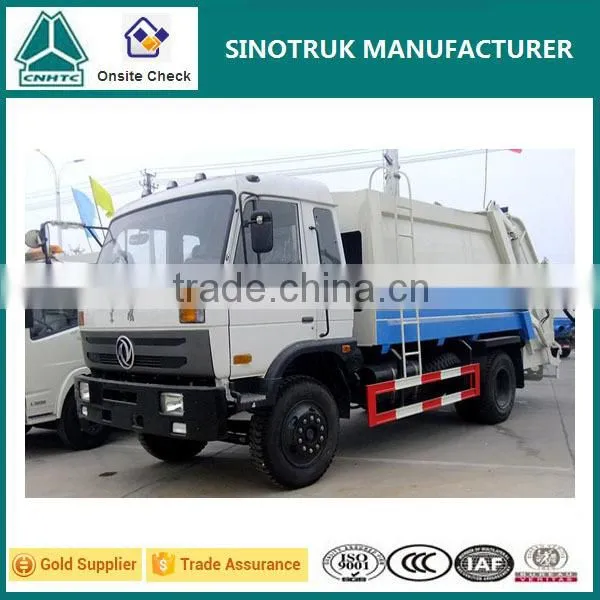

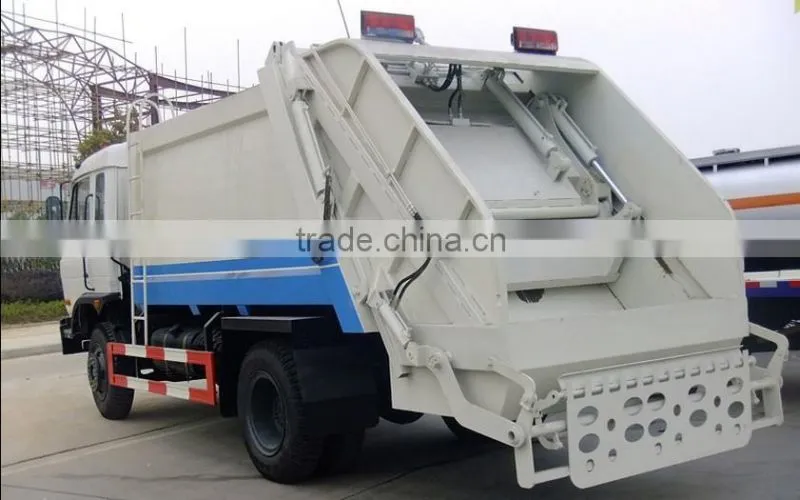

Dongfeng Chassis 8 Cubic Meters Garbage Refuse Compactor Truck

Item

Data

1. Model

Garbage compactor truck

2.Chassis

EQ1110GLJ

3.Drive

Left hand drive

4.Configuration

4*2

5.wheelbase

3950

6.Engine

- Maker and Brand name

YC4E160 33    160 horse power

- Model

4 Cylinder, Turbo Diesel engine, 118kw/2500RPM,

water cooling diesel engine.

-max torque

700(N.m)/1200-1700(rpm)

-emission

Euro3 emission standard

- Kind of fuel

Diesel

-displacement

4257

7. Clutch

- Model

 395mm

- Type

Diaphragm spring

8. Gear box

- Model

Dongfeng DF4S900

-ratio

the first ratio:6.938, 3.996, 2.32, 1.493, 1, 0.814, the back ratio: 6.188

9. frame section

210*80*(7+4)mm

10. axle

Front axle

5 ton

Rear axle

9 ton reduction axle

11.Steering

Power steering, with adjustable steering wheel

12Tyres

9.00-20

13. Electrical system

Alternator

28V/80A,

Batteries

12V/175Ah

14. Fuel tank capacity

300L

15: dimension

- Overall dimension, mm

7600x2495x3350mm

- Wheel base, mm

3950mm

- Front track, mm

1750

- Rear track, mm

1640

- Approach angel, 0

22

- Departure angel, 0

12

16. Weight

- G.V.W

18500kgs

-kerb weight

8500kgs

-payload capacity

10000kgs

17. Cab

D530 semi-floating, tilt cab hydraulic and mechanical overturn cab,

 left-hand drive.

18. Accessories

Tool box, Air conditioner, cold boot, interaxial differential,

wheel redactor

19. performance

90km/hour

20. Body

The volume of the Tank

8m3

Working time for one cycle

30s

The rated pressure of hydraulic system

16Mpa

The width of pre-compressor(mm)

1870mm

The loading weight

10000kg

The compressor rate

1:03

Warranty period

12 months, from the date of supply.
