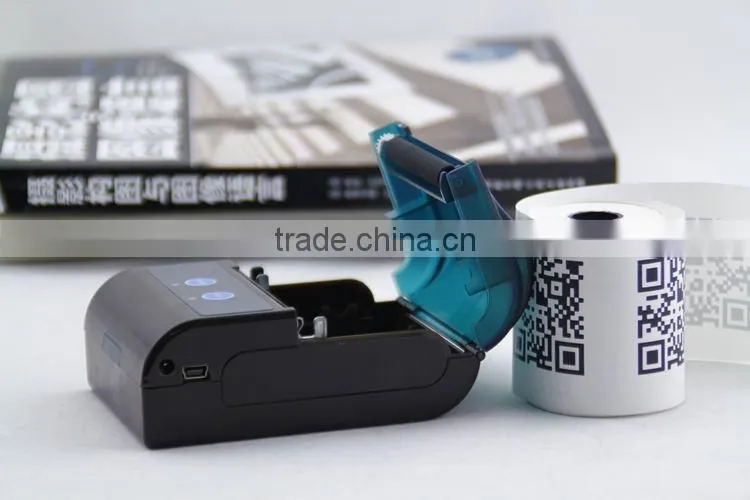

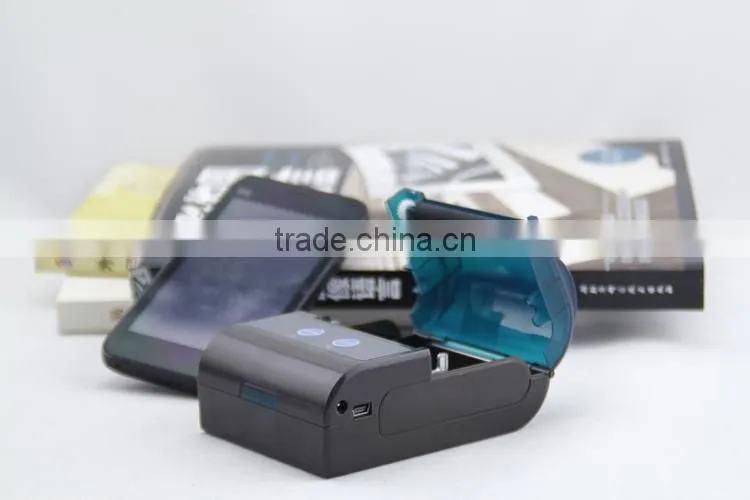

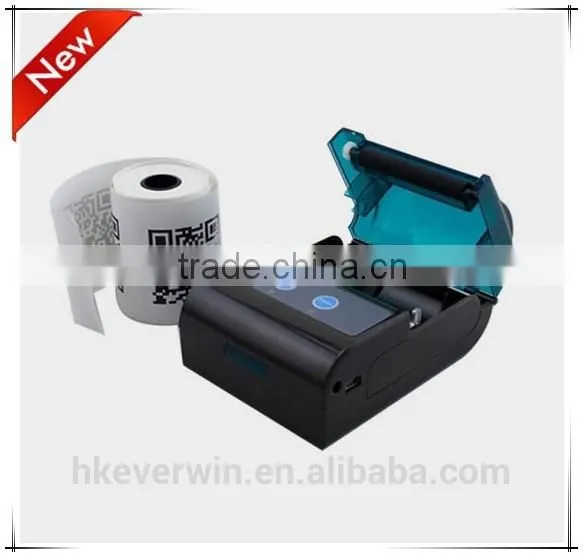

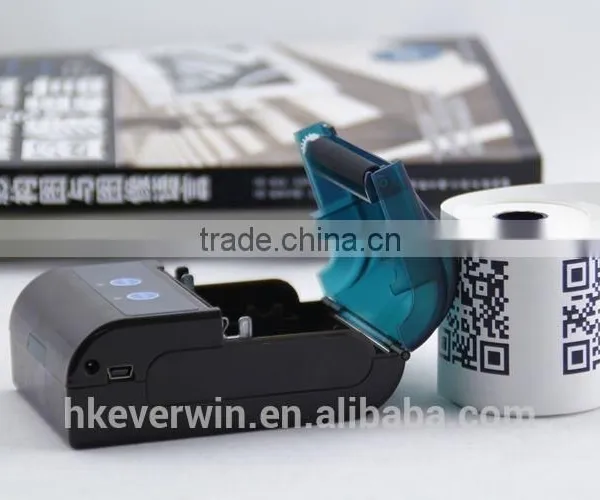

Roll&Driver/mobile bluetooth thermal printer
Thank you for using our portable thermal printer DL-58, be sure to read carefully before using this manual.
The printer is mainly used in the traffic police, urban management, postal services, logistics and other mobile office on-site printing and paper printing supermarkets, tobacco, services and other commercial receivables.
This product is small and lightweight, fine shape, low power, low cost, fast print speeds, high-quality, low noise and other characteristics. And it supports Bluetooth, USB, RS232 serial port. Bluetooth can be connected to POS, Android phones, tablet computers and other devices,and it’s easy to operate and very practical.
DL-58 printer specifications | |
Print mode |
thermal lattice print |
Print speed |
The maximum 80mm/S |
Feeding speed |
About 80mm/S (continuous feed) |
Print width |
48mm ,384 point / line |
Thepaper feed direction |
Friction feed, one-way |
The point density |
203dpi/ inch |
Characters per line |
(16×16):Each line has 24 characters of /48 English Chinese characters (24×24):Each line has 16 characters of /32 English Chinese characters (32×32): Each line has 12 characters of /24 English Chinese characters (48×48): Each line has 8 characters of /16 English Chinese characters |
The data buffer |
2KB |
Printing character |
All character printing GBK font, ASCIC fonts (Unicode code can be customized in multi language font) |
Character size |
16 * 16/24 * 24/32 * 32/48 * 48 dot matrix |
Print content |
In English or other language, digital, various characters, the two value picture, one-dimensional bar code, two-dimensional code |
Control instruction |
Print instruction set compatible with ESC/POS |
The paper type (single) |
57.50mm±0.5mm×ø40mm |
External interface |
Support Mini-USB interface / Bluetooth /RS232 serial print |
Bluetooth |
The standard Bluetooth 3; 2, 3, 4 optional Bluetooth |
Drive |
Support special drive WIN7/WIN8/XP 32 bit, 64 bit operating system. |
Paper cutting manner |
Manual paper |
Power supply |
DC9V 3A |
Battery |
The rechargeable lithium battery: 7.4V/1400mAh |
Charging time |
2 hours |
The power to print |
The battery or power supply power alone print |
Print life |
>50KM |
Working environment |
temperature 0 -50.relative humidity: 10 ~ 90% |

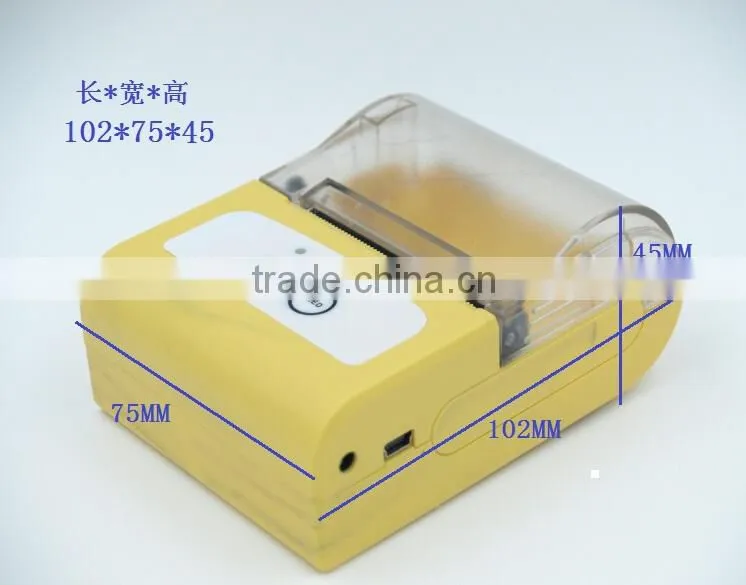

Dimensions |
103mm×75mm×46mm |
Weight |
0.19kg |
Note:DHL/FedEx/UPS express usually takes 4-6 working days to the destination,and it's about 8-10 working days by EMS or TNT,HongKong Post Air Mail and HongKong Post Air Parcel takes 15-30 days to ship to worldwide.
1.We will send the goods within 3 working days after the full payment has been confirmed,if the payment is not available,your order will be closed automatically.
2.The buyers are responsible for any insurance,problems and damage which caused by shipping service such accidents,delays or other issues.Basides the buyers should to be responsible for any tax and/or duty charged by their country,and the goods will be marked as gift or sample for your easy customs clearance and less charge.(if you want to declare the goods as other item name,or specify an value for custom,please inform us when making the order)
Warranty and Return
1.Android pos terminal and accessories have been tested by 3 times before ship out.
2.Android pos terminal have 12 month warranty, if there is no Man-made problem,we will replace or repair for your freely.We will provide 1% extra device and provide spare parts to replace for your bulk order
3.We own the best after-sale service, if any problems happen,our team will do our best to solve for customers.
4.All the goods are inspected before shipment,so if you are not satisfied with the purchase.you can exchange the items in one week and you must contact us within 24 hours.
5.All Return items must be in its original conditions,incleding box and accessories.Men made defects are not guaranteed,such as broken,scratched and so on.
6.for any items,please send by EMS or your local post when send back.
What we can do
1.All of products have proceeded againg testbefore shippment and we fuarantee to use our products safty
2.Support Hardware and Software Customization
3.OEM/ODM orders are warmly welcome
Our Advantage
1. We have our own R&D department,will provide all technical support as clients wish(SDK source code and demo test software.ect).
2. Integration all functions in industry,in addition,clients can select some of the function for their own project.
3. Integration all interface as well as RJ45,RS232,RJ11,HDMI,USB Host/Mini for clients’ project.
4. We can customization request for our client,even hardware and software customization.
Q: Can we print our own language?
A: Not available at this moment,because we just have Chinese and English font library in the printer,but we can do customization in your bulk order
Q: Will the SDK come with sample device?
A: Yes,we will provide SDK source code and demo test software free for you.
Q: Can we take some features off since it is unnecessary for our project
A: Yes,and the unit price will be lower
Q: What kind of software can running in the device?
A: The device is standard android os,all software can running if it developed based on android.
Q: Can we running google play?
A: Yes.but we didnot integrate google play in the device,customers can download it in internet
Q: How long can the battery support?
A: It according to your usage,battery capacity is 5400MAh
Q: How does the warranty works?
A:We provide one year warranty,provide 1% extra device and spare parts for replace(shipping cost for client’s account ).
Q: Do you have EU style adapter?
A: Yes,We have EU,UK and USA style adapter
