Laminating
------

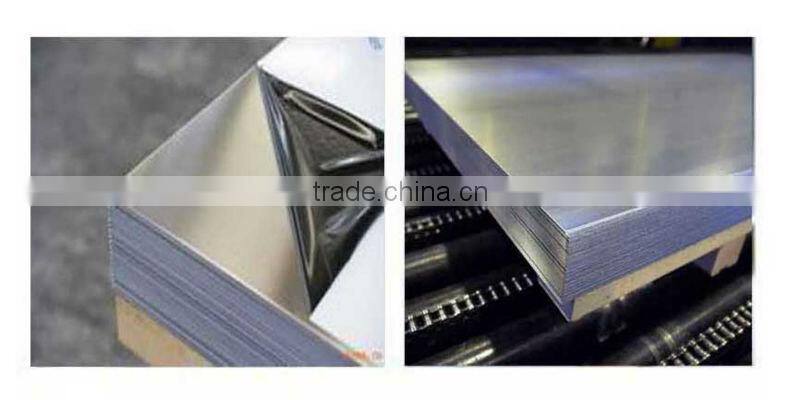

More safety to the surface

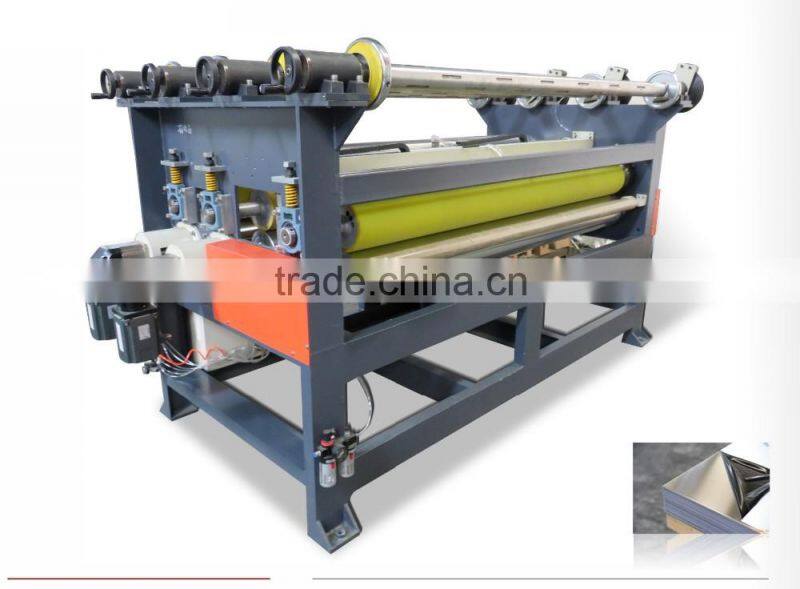

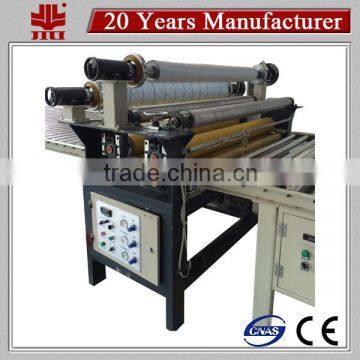

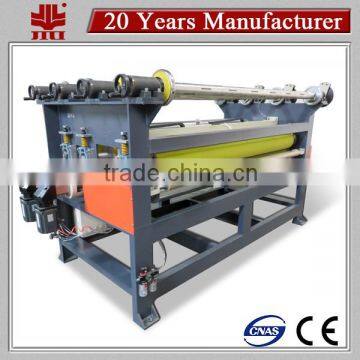

- JLTM semi-automatic laminating machine, user needs to cut the protective film manually, which is
suitable for simple sheet-to-sheet lines and ideal for the highest efficiency coil-to-coil lines.

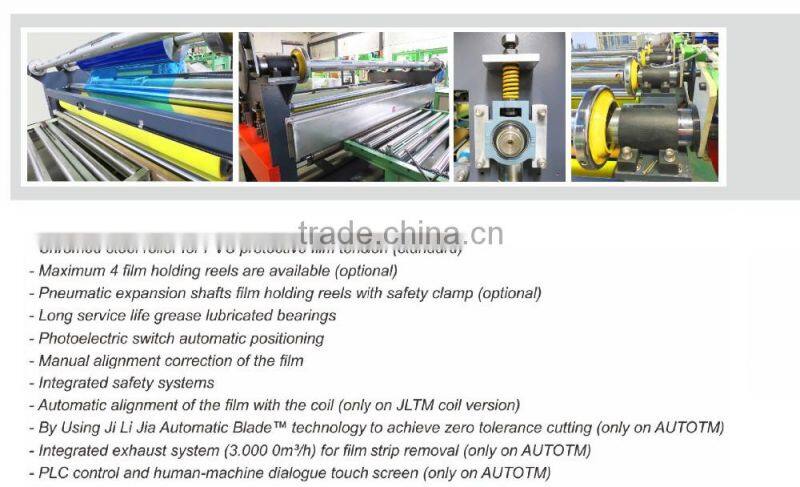

- AUTOTM automatic laminating machine, which compose the Ji Li Jia Automatic Blade™, This
vertical-moving blade and an electronic positioning system to cut the PVC film between the two
sheets, which can obtain a zero tolerance cutting effect. There has an integrated exhaust system
(3,000m³/h) for film strip removal. This machine is especially useful in a fully automated sheet-to-sheet lines.
All JLTM /AUTOTM series laminating machines can be fully integrated with JDG /JSG or other series
machine and also possible to install into an existing lines.
Model |
JLTM |
AUTOTM |
Cutting method |
Manual |
Automatic blade-cutting |
Application |
Coils & sheets |
Sheets |
Useful width |
200 - 400 - 700 - 800 - 1050 - 1300 - 1600 - 2100 mm |
|
Thickness range |
0.3~3.0mm (standard), maximum 12.0mm (optional) |
|
Feeding speed |
10-20min (adjustable) |
15~20min (adjustable) |
Feeding motor |
2.2kw |
1.5kw |
Film applicator roll |
Φ150mm, covered with rubber |
|
No. of top film reels |
2 as standard and up to 4 as option |
|
Film roll diameter |
Inner Φ74mm, and outer up to Φ350mm |
|
Machine pass line |
960mm |
|
______________________________________________________________________________________
Edward Zhou
Skype: jilijia22211774 Sales Department
WeChat: jilijia22211774
Phone: +86 18664248747
Fax: +86 757 22211767
Address: No.17 Hongye Road, Xinjiao Industrial Area, Daliang Town, Shunde disrtict,
Foshan City, Guangdong Province, P. R. China.
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Foshan City, Guangdong Province, China, about 1 hour by car from Guangzhou.
All our clients re warmly welcome to visit our company!
3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunde people always attach great importance to quality controlling from the very beginning to the very end.
1).All raw material we used are environmental-friendly.
2).Skilful workers care every details in handling the producing and packing processes.
3).Quality Control Department specially responsible for quality checking in each process.
