Help CenterHandheld Wireless Color Scanner Pen With 900DPI
Related Products
Specifications
Built-in high-speed sensor for easy, fast scanningJPEG and PDF output formats

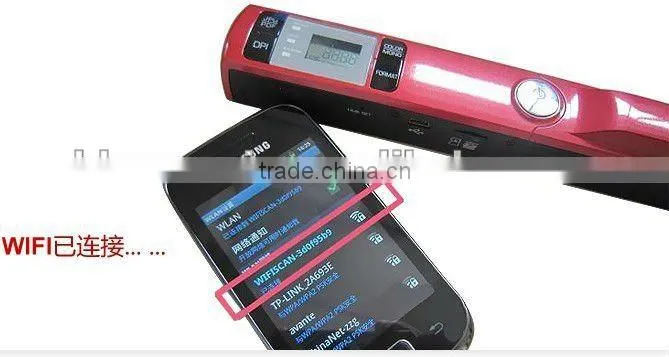

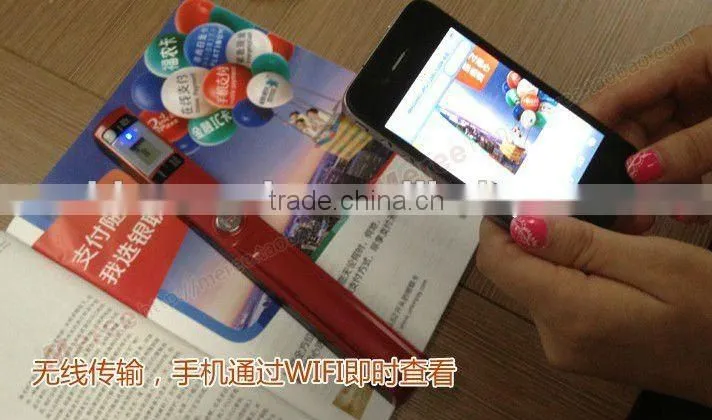

Scan and easily transfer via Wi-Fi
up to 32GB
Handheld wireless color scanner pen with 900DPI
Key features
Scan in color or black & white
Lightweight, carry anywhere
Scan and easily transfer via Wi-Fi

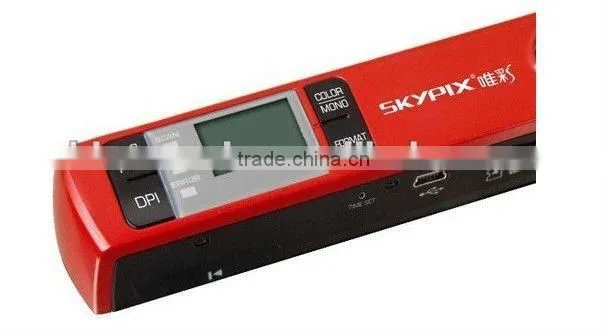

1-inch status LCD display
Built-in high-speed sensor for easy, fast scanning
JPEG and PDF output formats
Image Resolutions: 300/600/900 dpi
Supports microSD / microSDHC card up to 32GB (sold separately)

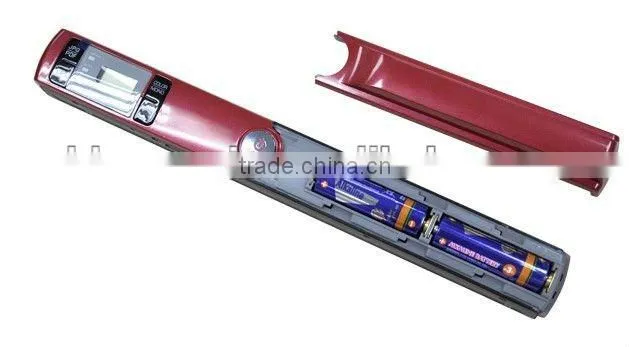

Uses 2x AA batteries
Product Specification
Product Size(LxWxH) |
258mmX31mmX32mm |
Product Weight(g) |
160g without battery; 210g with battery; |
Function |
Handy Scanner |
Image Sensor |
A4 Color Contact Image Sensor |
Scanner photo size |
A4,A5,5R,4R,3R and down |
Scanning speed |
High resolution with color≥12s;Hign resolution with mono≥10s |
Scan width |
8.35" |
scan length |
300DPI:98"(max);600DPI: 45";(max);900DPI:35"(max) |
Image Resolution |
Low resolution : 300x300 dpi(default);Medium resolution: 600x600 dpi;High resolution: 900x900 dpi |
Internal flash memory |
SPI Flash |
External memory card |
Micro SD card (TF Card) up to 32GB |
File format |
JPG(default)/PDF |
File color |
Color(default)/Mono |
Display Panel |
Status LCD |
Auto Power Off |
3 Minute |
USB Port |
USB 2.0 high Speed |
Support system |
Driver free to download for Windows XP(SP3)/Vista,Win7 and MAC10.4 or above |
Power source |
2XAA battery |
Battery life |
≥200 piece (A4 paper default:Low resolution with color,only scan) |
System requirement | |
Operation System |
Windows XP(SP3)/Vista, Win7 |
MAC10.4 or above | |
CPU |
Pentium Ⅲ or above |
RAM |
At least 256MB |
Interface |
USB port |
CD ROM |
4x speed CD ROM or above |
Wifi module | |
Standard |
IEEE 802.11 b/g/n standards compliant |
Wireless LAN |
1T1R Mode |
Transmit data distance |
5m |
Transmit data rate |
802.11b: 1, 2, 5,5, 11Mbps |
Frequency range |
2.400 ~ 2.4835GHz |
Number of selectable channels |
802.11n 20MHz/40MHz |
802.11b/g | |
USA, Canada (FCC):11 channels (2.412GHz~2.462GHz) | |
Europe (CE): 13 channels (2.412GHz~2.472GHz) | |
Japan (TELEC): 14 channels (2.412GHz~2.4835GHz) | |
Network feature |
DHCP Server |
Domain name server | |
HTTP file server | |
FTP server | |
Web browser |
Microsoft Internet Explorer 6.0 |
Mozilla Firefox 4.0 | |
Google Chrome 10.0.648.205 | |
Chrome Lite 2.3 | |
Opera 11.10 | |

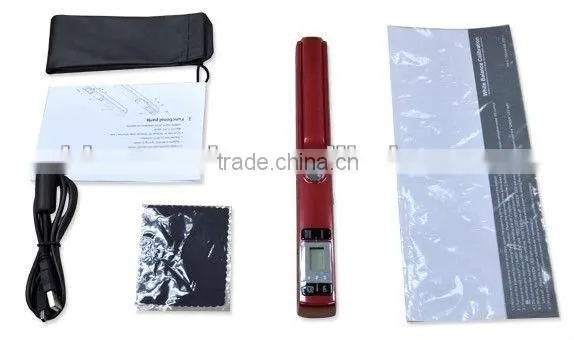

Packing
Wifi Portable color & Document Scanner with Wi-Fi (Black) with:
USB Cable
AA x 2 Batteries
OCR Software
CDCalibration Paper
Pouch & Cleaning Cloth
User Manual
