Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Channel > 25U Channel Steel Beam

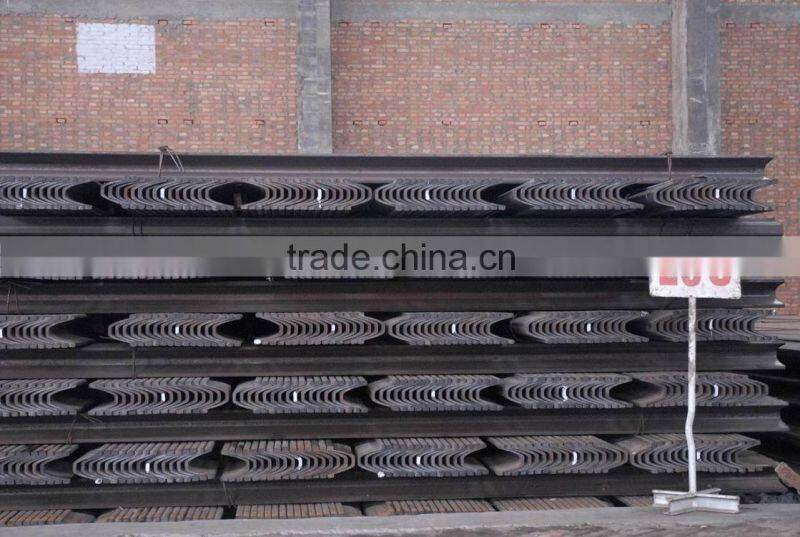

25U Channel Steel Beam

Name: 25U Channel Steel Beam
Brand: YongYang
SKU: 107141401
Availability: InStock

US$ 500 - 550 MOQ: 100 Tons

Key Specifications

Get Latest Price

Standard:

Dimensions:

25U;29U;36U

Grade:

20MnK,Q275

Contact Supplier Request Quote Chat Now

Hebei Yongyang Special Steel Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard GB

Dimensions 25U;29U;36U

Grade 20MnK,Q275

Place of Origin Hebei, China

Brand Name YongYang

Model Number 25U

Shape U Channel

Application mineral steel channels

Perforated Or Not Not Perforated

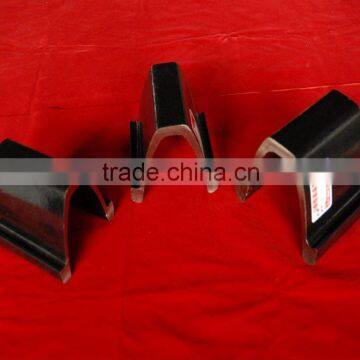

U-type Beam of 25U

Product Introduction

U-type Beam:
Specification: 25U
Standard: GB/T4697-1991, Q/YYG 006-2008
Material: 20MnK, Q275
Length: 8,9,10,12meters/PC.

U beam (25U)20MnK has reached the GB/T4697-1991,Q/YYG006-2008 standard. THE LIST OF YYGT

Name of Commodity	Specificaton	Materials (Steel Grade)	Standard of Products	Theory Weight (kgs/M)	Length of Dimension (M)	Packed In Bundle With Iron Wire (pcs/bundle)
Light Rail	4kgs/m	Q235	Q/YYG001-2008	4kgs/m	6,8,9,10	75
	8kgs/m	Q235	Q/YYG001-2008	8.42kgs/m		55
	12kgs/m	Q235	GB11264-89	12.2kgs/m		36
	15kgs/m	Q235/55Q/50Q	GB11264-89	15.2kgs/m		28
	18kgs/m	Q235/55Q/50Q	YB222-63	18.06kgs/m		21
	22kgs/m	Q235/55Q/50Q	GB11264-89	22.3kgs/m		21
	24kgs/m	Q235/55Q/50Q	Q/YYG001-2008	24.46kgs/m		21
	30kgs/m	Q235/55Q/50Q	GB11264-89	30.1kgs/m		15
Heavy Rail	38kgs/m	U71Mn/U71	GB2585-81 Q/YYG002-2008	38.733kgs/M	12,12.5	10
	43kg/m	U71Mn/U71	GB2585-81 Q/YYG002-2008	44.653kgs/M		10
	50kgs/m	U71Mn/U71	GB2585-81 Q/YYG002-2008	51.514kgs/M		10
		45/50Mn	Q/YYG002-2008	31/34/36/39/41kgs/M	12,12.5	10
Crane Rail	QU70	U71Mn	YB/T5055-93	52.8kgs/m	12,12.5	10
	QU80		YB/T5055-93	63.69kgs/m		10
	QU100		YB/T5055-93	88.96kgs/m		5
	QU120		YB/T5055-93	118.1kgs/m		5
I-beam of Hot-Rolled Section Steel for Mine	9#	20MnK/ Q235	YB/T5047-2000	17.69kgs/m	8,9,10	28
	11#		YB/T5047-2000	26.05kgs/m		18
	12#		YB/T5047-2000	31.18kgs/m		15
Hot-Rolled U-Beam Steel for Mine Timbering	25U	20MnK/ Q275	GB4697-1991 /Q/YYG006-2008	24.95kgs/m	8,9,10,12	15
	29U		GB4697-1991	29kgs/m		15
	36U		Q/YYG006-2008	35.87kgs/m		15

Name of Commodity	Specificaton Equal to rails	Materials	Standard of Products	Theory Weight (kgs/set)	Length of Dimension (mm)	Packed In Bundle With Iron Wire (set)
Fish Plate	4/9kgs/M	Q235B or …	GB11265-89	0.80	≈270-385	50
	4/9kgs/M		GB11265-89	1.00	≈270-385	50
	12kgs/M		GB11265-89	1.10	≈409	50
	12kgs/M		GB11265-89	1.30-1.50	≈409	50
	15/18kgs/m		GB11265-89	1.80-2.00	≈372-409	25
				2.20-2.50
				2.80-3.00
	22/24kgs/M		GB11265-89	3.30-3.50	≈426-510	20
				3.80-4.00
				4.20-4.50
	30kgs/m		GB11265-89	5.50-7.50	≈561	10
	30kgs/m		GB11265-89	8.20-8.50	≈561	10
	38/43/50kgs/m		GB185-63	24-30	≈790	1

About Us

1, We are a professional manufacturer of all types of industrial rails under Chinese Standard which are used for mining or other industrial projects, and our main products include light rails, heavy rails, and crane rails, and accessories of fish plates, bolts and nuts etc. We have more than 20 years of history supplying above products.
2, We have continuously tried to improve product quality. Our annual production capability is more than one million tonnages.
3, Our products have already been exported to Poland, Romania, Russia, India, South America, Singapore, Philippines, Vietnam and Hong Kong, in 2001, we obtained the ISO9001:2008 quality management certification.
We hope to cooperate with more customers for mutual development and benefits.

Welcome your inquiries!
