300KVA Kangmingsi Emergency Marine Generator Set With CE

Name: 300KVA Kangmingsi Emergency Marine Generator Set With CE
Brand: SUDONG
SKU: 107129233
Availability: InStock

US$ 15,000 - 26,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

SUDONG

Model Number:

SDCM250

Taizhou Sudong Power Generating Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name SUDONG

Model Number SDCM250

Output Type AC Three Phase

Speed 1800RPM

Frequency 60Hz

Rated Power 250kw

Rated Voltage 440V

Rated Current 450A

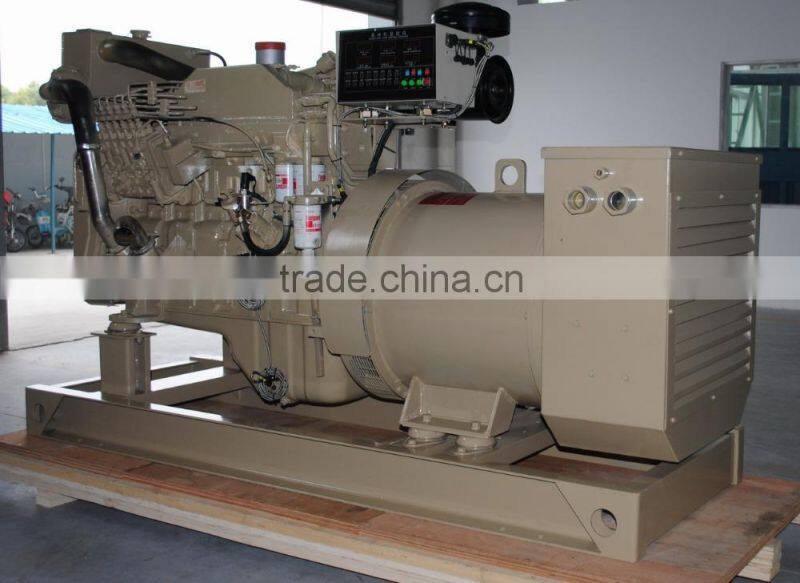

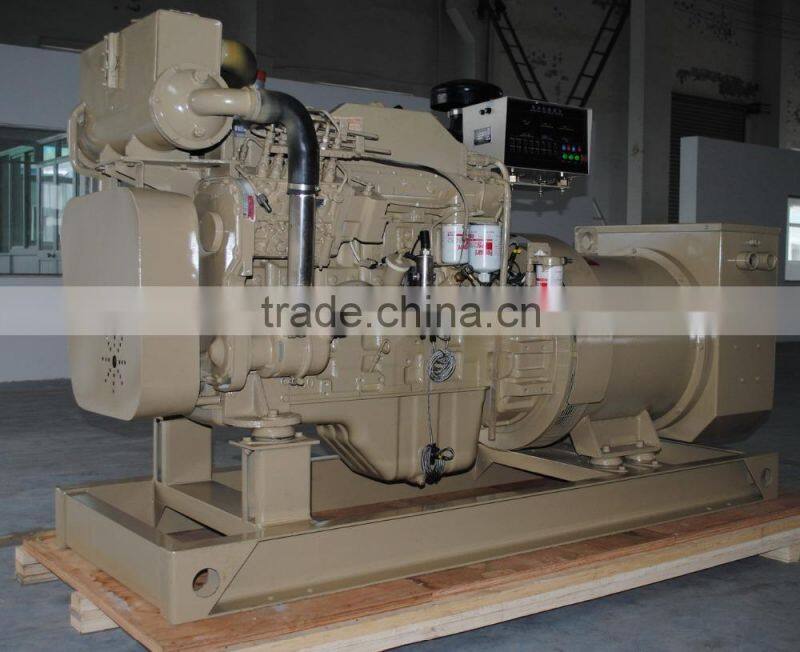

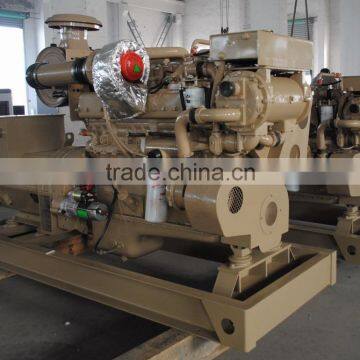

300KVA kangmingsi emergency marine generator set with CE

1.Main technical data of genset
1.1	Model	CCFJ250
1.2	Prime power	250KW
1.3	Prime voltage	230/400V
1.4	Speed	1800 rpm
1.5	Weight	3180kg
1.6	Overall dimension	2620×980×2290mm (just for reference)
2.Main technical data of engine
kangmingsi engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1	Brand	kangmingsi
2.2	Model	NTA855-DM
2.3	Prime power	283KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Cooling method	By heater exchanger
2.7	Bore/Stroke	140×152 mm
2.8	Displacement	14 L
2.9	Starting method	Electric
2.10	Fuel consumption	205g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-H-250-4
3.3	Prime power	250KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
